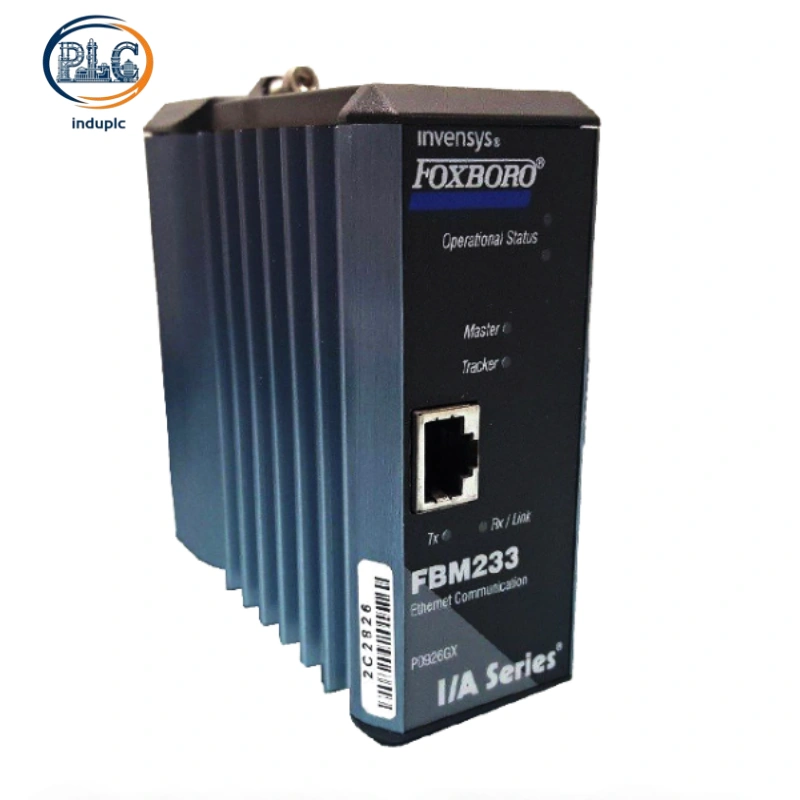

Foxboro FBM233 P0926GX Redundant 10/100Mbps Ethernet Field Integration Module | Compact 200 Subsystem

1. Product Overview

The Foxboro FBM233 P0926GX is a high-reliability dual-port Ethernet integration unit developed for the Compact 200 field I/O subsystem. Serving as the redundant upgraded iteration of the standard FBM232 Ethernet module, this hardware focuses on uninterrupted network transmission and fault-tolerant field device convergence, specifically optimized for critical industrial control networks that prohibit communication interruption. It delivers stable high-speed Ethernet docking for distributed field smart equipment, realizing protocol conversion, real-time data aggregation and industrial network link backup for automated production systems.

Equipped with dual independent 10/100Mbps adaptive Ethernet ports, the module supports full network redundancy hot standby switching, completely eliminating single-port link failure risks. It retains powerful multi-protocol parsing and multi-device access capabilities, compatible with mainstream industrial Ethernet communication protocols. Adopting reinforced aluminum casing and ISA Class G3 harsh environment resistance, it features low power consumption and wide-temperature adaptive operation, perfectly adapting to 24/7 continuous network transmission tasks in high-demand industrial scenarios such as energy power and large chemical integration plants.

2. Core Technical Parameters

• Module Positioning: Dual-port redundant Ethernet field device integration & fault-tolerant gateway

• Ethernet Specification: Dual 10/100Mbps adaptive full-duplex network ports

• Redundancy Mechanism: Hardware-level dual-link hot standby automatic switching

• Field Device Capacity: Supports up to 64 concurrent field device connections

• Data Mapping Scale: Max 2000 DCI data block real-time parsing and synchronization

• Isolation Performance: 500VAC dielectric isolation for network port surge protection

• Protocol Support: Downloadable customizable industrial Ethernet protocol drivers

• Power Parameters: 24VDC baseplate power supply, maximum 1.5W low power consumption

• Environmental Standard: ISA Class G3 anti-vibration, anti-corrosion industrial grade

• Working Temperature: -40°C ~ +70°C wide industrial temperature range

• Installation Form: Standard DIN rail baseplate card slot mounting

3. Core Product Features

Different from the single-port non-redundant FBM232 Ethernet module, the FBM233 P0926GX core advantages focus on network safety, fault tolerance and continuous transmission capability, with exclusive industrial redundant networking features:

• Dual-Port Hardware Redundant Network Backup The dual independent Ethernet port design realizes physical link redundancy at the hardware level. Two network links operate synchronously in hot standby state; if the active link encounters cable damage, port failure or network signal attenuation, the standby link completes seamless switching instantly without data loss or communication delay. This fundamentally solves the single-point failure defect of single-port Ethernet modules and ensures zero interruption of key control network transmission.

• High-density Multi-device Stable Convergence It supports simultaneous online access and unified management of up to 64 field Ethernet devices, with efficient parsing and synchronization of 2000 groups of DCI data blocks. The optimized network scheduling algorithm avoids data congestion under full-load operation, ensuring orderly and accurate transmission of massive field monitoring and control data, improving the overall integration efficiency of field intelligent equipment.

• Flexible Expandable Protocol Adaptation Built-in open downloadable protocol driver library, freely compatible with mainstream industrial Ethernet protocols including Modbus TCP/IP and Ethernet/IP. It supports on-site protocol configuration and upgrade without hardware replacement, realizing rapid docking of multi-brand heterogeneous field equipment, and greatly improving the flexibility and scalability of industrial control network transformation and upgrading.

• Industrial Isolation & Surge Suppression The network port adopts high-strength electrical isolation design, which effectively isolates on-site industrial surge, electromagnetic interference and ground loop potential difference. It blocks external network abnormal signals from invading the internal control network, protects core system data security, and enhances the stability and anti-interference ability of the entire network system.

• Low-power & High-strength Industrial Adaptability Adopting low-power embedded processing chip and reinforced aluminum shell structure, the module operates stably with low heat generation for a long time. It adapts to harsh working conditions such as cabinet vibration, temperature fluctuation and humid environment, meeting the long-term unattended operation requirements of industrial core control networks.

4. Industrial Application Scenarios

Foxboro FBM233 P0926GX is mainly deployed in high-reliability and zero-interruption industrial network scenarios that require redundant fault tolerance. It is widely used for core device network convergence and backup transmission in large petrochemical integrated production lines, redundant network construction for thermal power unit auxiliary control systems, stable network docking for intelligent equipment in pharmaceutical and fine chemical high-standard production workshops, and network safety upgrading of old industrial control systems. It is the core fault-tolerant Ethernet gateway module for building high-security and high-stability industrial intelligent control networks.
