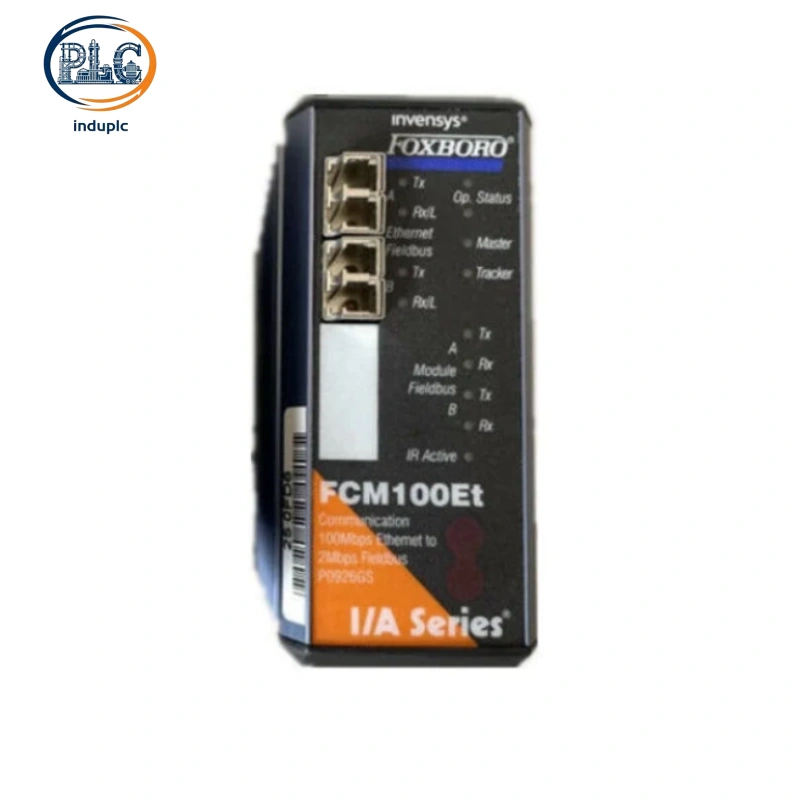

Foxboro FCM100ET Fiber Fieldbus Communication Conversion Module | Compact 200 Network Gateway Unit

1. Product Overview

The Foxboro FCM100ET is a professional fiber-optic communication conversion module developed for the Compact 200 subsystem network architecture. Differing from the FCM10E local field processing module that undertakes loop calculation and logic control, this unit focuses purely on network protocol conversion and long-distance signal transmission, serving as a core bridge between upper Ethernet network and field 2Mbps fieldbus. It realizes mutual conversion between 100Mbps fiber Ethernet and dedicated fieldbus signals, solving signal attenuation, electromagnetic interference and distance limitation problems of traditional cable transmission.

Built with exclusive photoelectric isolation hardware and dedicated bus decoding chip, the FCM100ET features high-strength electrical isolation between fiber port and fieldbus terminal, effectively isolating on-site surge and ground loop interference. It supports stable long-distance network extension and reliable data transmission, perfectly matching all Compact 200 series FBM field I/O modules. Adhering to ISA Class G3 harsh industrial standards, it adapts to long-term uninterrupted network operation in high-interference and wide-temperature industrial environments, providing stable network foundation for large-scale distributed DCS systems.

2. Core Technical Parameters

• Module Positioning: Fiber Ethernet to fieldbus photoelectric conversion gateway module

• Port Configuration: 1×100BaseFX fiber port + 1×2Mbps dedicated fieldbus port

• Transmission Rate: 100Mbps (fiber network) / 2Mbps (fieldbus network)

• Isolation Specification: 1500V RMS high-strength photoelectric isolation protection

• Transmission Distance: Supports long-distance fiber extension, effectively eliminating cable distance limits

• System Adaptation: Fully compatible with I/A Series and Evo Compact 200 I/O subsystems

• Signal Processing: Real-time bidirectional protocol parsing and signal conversion

• Environmental Grade: ISA Class G3 industrial anti-vibration and anti-corrosion standard

• Working Temperature: 0°C ~ +60°C industrial stable temperature range

• Installation Method: Standard DIN rail baseplate rack mounting

3. Core Product Features

Centering on photoelectric conversion and long-distance network transmission, FCM100ET possesses irreplaceable network expansion advantages compared with field control and ordinary communication modules:

• Dual-network Bidirectional Photoelectric Conversion The module independently completes real-time mutual conversion between high-speed fiber Ethernet and dedicated 2Mbps fieldbus signals. It forwards upper system control commands to field I/O nodes, and uploads field acquisition data to the host network synchronously, realizing seamless docking of high-speed backbone network and low-speed field control network, and unifying system network transmission logic.

• High-isolation Anti-interference Network Protection Equipped with 1500V RMS photoelectric isolation design between fiber port and fieldbus circuit, it completely isolates on-site industrial electromagnetic interference, surge voltage and ground loop potential difference. It prevents field network faults from penetrating into the core backbone network, effectively protecting upper system equipment and ensuring network operation safety.

• Long-distance Stable Transmission Capability Adopting fiber-optic signal transmission, it breaks through the distance limitation of traditional shielded cable fieldbus. It supports ultra-long-distance field I/O network extension, solving signal attenuation, data packet loss and transmission instability in large-span plant layout scenarios, and expanding the coverage of DCS field control network.

• Highly Adaptable System Compatibility It is fully compatible with all FBM series analog, discrete, HART and communication I/O modules under the Compact 200 platform. With no additional protocol configuration required, it supports plug-and-play network docking, simplifying on-site network debugging and system integration difficulty.

• Industrial-grade Stable Network Operation Optimized hardware circuit and signal filtering algorithm ensure zero-error data conversion and low-delay transmission under long-term full-load operation. Adapting to G3-grade harsh industrial conditions, it supports 24/7 uninterrupted network data interaction, meeting continuous production and monitoring requirements of process industries.

4. Industrial Application Scenarios

Foxboro FCM100ET is mainly deployed in large-span industrial scenarios requiring long-distance network transmission and network isolation protection. It is widely used for fieldbus network extension and signal isolation transmission in large petrochemical integrated plants, long-distance I/O network docking for thermal power unit auxiliary workshops, network anti-interference transformation and safety isolation of fine chemical production control systems, and network architecture optimization of distributed DCS systems. It serves as the core photoelectric conversion gateway module for building long-distance, high-stability and high-safety industrial control networks.
