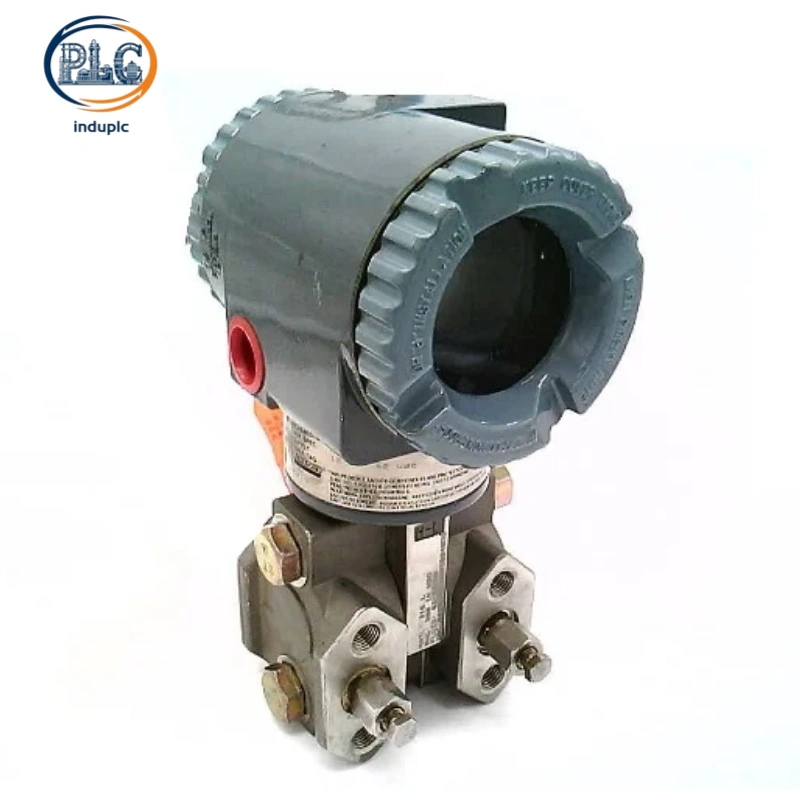

Foxboro IDP10-A22B21F-M1 High Precision Differential Pressure Transmitter | 4-20mA Analog Process Instrument

1. Product Overview

The Foxboro IDP10-A22B21F-M1 is a compact high-performance differential pressure transmitter from the I/A Series field instrument family. Unlike absolute pressure transmitters that reference vacuum pressure, this model is engineered for accurate differential pressure detection between two process pressure points, focusing on flow calculation, liquid level measurement and pipeline pressure difference monitoring. Adopting advanced capacitive sensing technology and full digital temperature compensation, it delivers ultra-stable differential pressure conversion under fluctuating ambient and medium conditions, serving as a foundational measuring device for process balance control.

This variant features pure analog 4–20mA output without HART digital overlay, providing simplified and highly reliable signal transmission for conventional industrial control loops. Built with 316 stainless steel sensor and pressure diaphragm, it adapts to most conventional industrial liquid and gas media. Featuring IP66/NEMA 4X rugged enclosure and strict EMC compliance, it supports long-cycle continuous operation in vibration-prone and temperature-variable industrial environments, perfectly matching Foxboro DCS analog input modules for standard process signal acquisition.

2. Core Technical Parameters

• Instrument Type: Industrial differential pressure transmitter (pure analog output)

• Measuring Principle: High-stability capacitive differential pressure sensing technology

• Output Signal: Standard 4–20mA DC linear/square root configurable analog output

• Measurement Span: 3.5 ~ 200 inH2O adjustable differential pressure range

• Measurement Accuracy: ±0.06% high precision for span above 10% full scale

• Long-term Stability: ≤±0.05% URL annual drift, five-year ultra-low drift performance

• Power Supply: Standard 24VDC industrial loop power supply

• Response Speed: Fast dynamic response for real-time process pressure difference tracking

• Sensor Material: 316 stainless steel corrosion-resistant diaphragm and housing

• Protection Grade: IP66 / NEMA 4X dustproof, waterproof and weatherproof enclosure

• EMC Standard: Compliant with industrial anti-interference electromagnetic compatibility specifications

• Working Temperature: -40°C ~ +85°C wide industrial adaptive temperature range

3. Core Product Features

Positioned as a high-precision pure analog differential pressure measuring instrument, IDP10-A22B21F-M1 possesses unique simplicity, stability and cost advantages different from multi-functional HART smart transmitters:

• Professional Differential Pressure Detection Designed for dual-point pressure difference monitoring, the transmitter accurately captures pressure deviations between pipeline upstream and downstream, container internal and external pressure, and liquid static pressure difference. It supports linear output for pressure monitoring and square root output for flow conversion, covering core differential control scenarios that absolute pressure transmitters cannot apply.

• Pure Analog Simplified & Stable Output Adopting standalone 4–20mA analog signal design without digital protocol stack, it eliminates digital communication jitter, protocol conflict and remote interference risks. The simplified circuit structure improves on-site operation stability, making it more suitable for traditional stable control loops that do not require remote intelligent configuration.

• Ultra-high Measurement Repeatability & Stability Optimized capacitive sensing structure and full-range digital temperature compensation effectively suppress zero drift and span drift caused by environmental changes. With annual drift less than 0.05% URL, it maintains consistent measurement accuracy for long-term cycle operation, reducing frequent calibration workload.

• Corrosion-resistant & Rugged Industrial Structure All wetted parts adopt 316 stainless steel material, resisting weak corrosive liquid and gas medium erosion. The fully sealed integral enclosure prevents dust and moisture intrusion, and adapts to harsh working conditions such as field vibration, temperature alternation and humid environment.

• Low Maintenance & High System Adaptability Compatible with all standard DCS analog input modules and conventional secondary instruments. It supports on-site local range adjustment and mode switching, with simple wiring and convenient debugging. It is the most cost-effective choice for large-scale conventional differential pressure monitoring transformation and new construction projects.

4. Industrial Application Scenarios

Foxboro IDP10-A22B21F-M1 is widely used in industrial process scenarios requiring stable differential pressure and flow monitoring. It is mainly deployed for pipeline differential pressure detection and orifice flow calculation in petrochemical process pipelines, boiler flue pressure difference and filter resistance monitoring in thermal power units, liquid level differential pressure measurement of closed pressure vessels in fine chemical and pharmaceutical industries, and water pipeline pressure difference and flow monitoring in environmental protection water treatment systems. It is a high-stability universal differential pressure measuring instrument for conventional industrial control loops.
