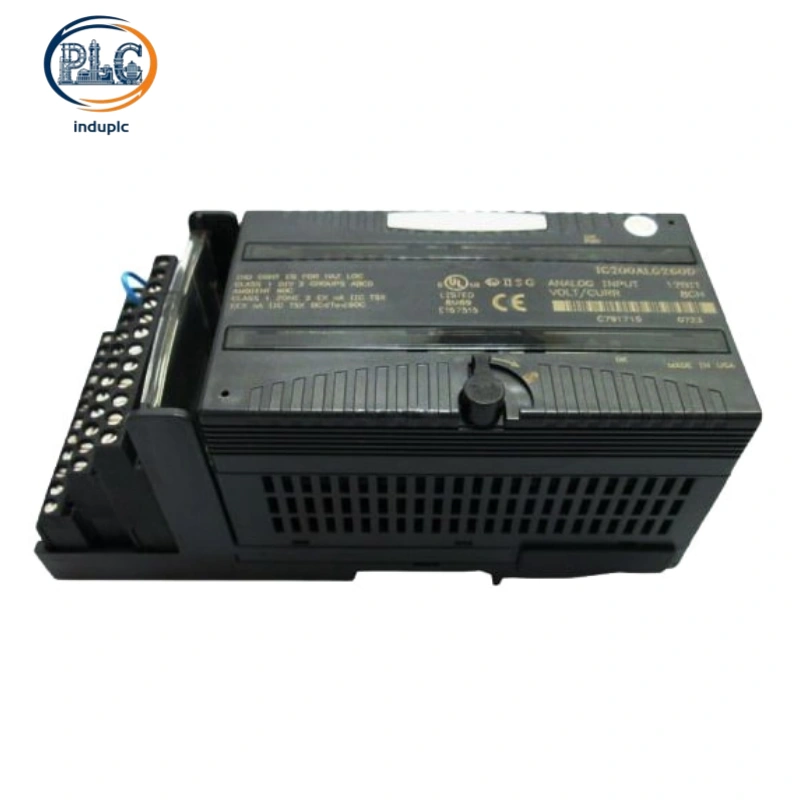

GE Fanuc IC200ALG260 VersaMax 8‑Channel Analog Input Module for PLC Signal Acquisition

The GE Fanuc IC200ALG260 is a compact 8‑channel single‑ended analog input module built for VersaMax PLC systems. It is widely deployed for collecting field sensor signals in manufacturing and process automation. This IC200ALG260 accepts both voltage and current industrial signals, translating real‑world analog readings into digital values readable by VersaMax CPU. The IC200ALG260 works as a mainstream I/O choice for pressure, flow and level sensor connection on site. Without an extra external power source, the IC200ALG260 draws power from PLC backplane bus, simplifying cabinet wiring for project retrofit and new‑build applications.

Compact Technical Specifications

• Part Number: IC200ALG260, Product Family: VersaMax PLC I/O

• Input Channels: 8 single‑ended analog input channels

• Supported Signals: 4‑20mA current, ±10VDC, 0‑10VDC voltage (jumper configurable)

• Resolution: 12‑bit; Typical accuracy: ±0.3%FS at 25℃ ambient temperature

• Signal Conversion Speed: 0.4ms per channel, hardware filter response 5ms

• Isolation Rating: 250VAC continuous, 1500VAC one‑minute isolation between field and logic circuit

• Backplane Power Consumption: Max 130mA @5VDC

• Mounting & Protection: DIN rail installation, IP20 protection grade

• Working Temperature: ‑40℃ to +70℃; LED indicators for module status and internal power

Main Product Selling Points

Flexible signal configuration is one major advantage of the GE Fanuc IC200ALG260. Field technicians switch between current and voltage input modes through carrier jumpers, without complicated software modification. The IC200ALG260 uses optical isolation structure to suppress ground loop noise, effectively reducing signal deviation under harsh factory power interference. As native VersaMax hardware, the IC200ALG260 supports standard backplane hot‑insertion installation. It fits directly into existing VersaMax racks, removing the need for extra adapters and shortening on‑site commissioning time for system integrators.

Real‑World Performance Highlights

The IC200ALG260 suits dense analog signal collection scenarios with multiple transmitters connected to one PLC rack. Integrated loss‑of‑internal‑power diagnostic function sends fault messages to the VersaMax controller. Plant staff can catch circuit abnormalities in advance and avoid unexpected measurement data loss. Its slim physical dimension conserves cabinet inner space, delivering obvious benefits for equipment renovation projects with limited enclosure room. Users can combine the IC200ALG260 with VersaMax CPU to complete stable closed‑loop monitoring in water treatment lines, packaging equipment and small‑size chemical process sites.
