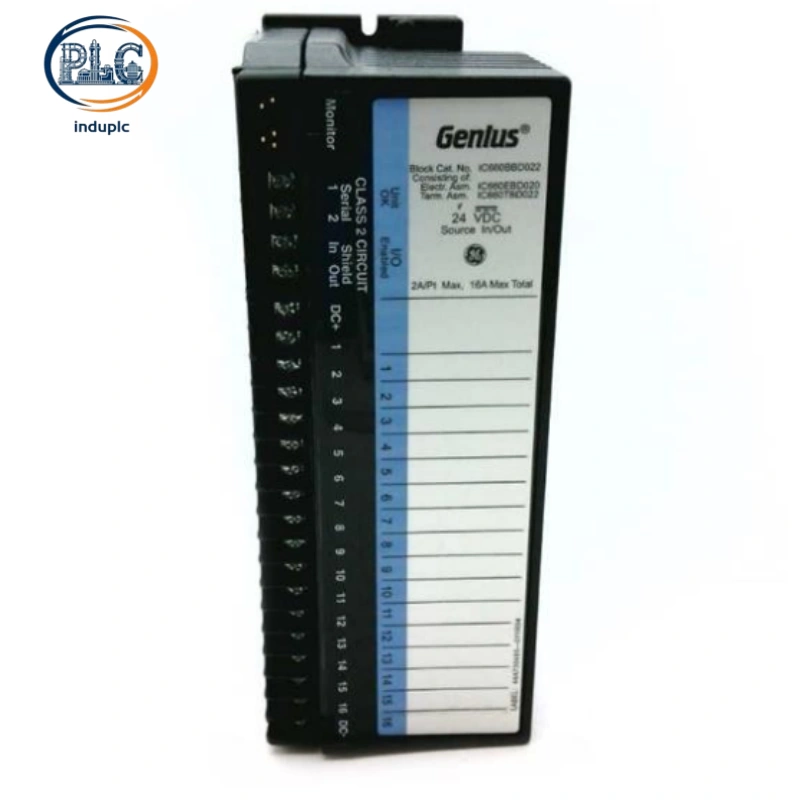

GE Fanuc IC660BBD022 16-Circuit Source I/O Block for Industrial Control

The GE Fanuc IC660BBD022 is a high-performance 16-circuit source I/O block designed for industrial automation systems, serving as a critical link between field devices and PLC controllers. This IC660BBD022 supports flexible circuit configuration, with each channel settable as an input, tristate input, or output, adapting to diverse industrial control needs. As a core component of the GE Fanuc Genius I/O lineup, the IC660BBD022 boasts robust protection features and wide voltage compatibility, making it ideal for manufacturing, process automation, and other harsh industrial applications. Its compact panel-mount design enables easy integration into existing control systems, with advanced diagnostic capabilities to simplify maintenance and reduce downtime.

Core Technical Specifications

• Part Number: IC660BBD022 | Product Family: GE Fanuc Genius I/O Blocks

• Circuit Configuration: 16 flexible source circuits, configurable as input, tristate input, or output

• Voltage Compatibility: 24VDC nominal, operating voltage range of 20.4-31.2VDC (compatible with 18-56VDC)

• Output Performance: 2 amps maximum output current per circuit, supports 2-wire and 3-wire sensors

• Protection Features: Electronic short circuit, over-temperature protection, and fault detection for switches/wiring; supports output pulse test

• Input Processing Time: 1.7 ms, with configurable input filter time (5-100ms) for signal optimization

• Protection Grade: IP20, suitable for industrial control cabinet installation, resisting dust and minor moisture

• Working Temperature: 0℃ to +60℃, storage temperature -40℃ to 100℃, ensuring stable operation in harsh industrial environments

Key Selling Points

The GE Fanuc IC660BBD022 stands out for its flexible circuit configuration, allowing each of the 16 source channels to be set as an input, tristate input, or output to match diverse field device requirements. Its compatibility with 2-wire and 3-wire sensors simplifies system design and on-site wiring. The IC660BBD022’s robust protection features—including short circuit, over-temperature protection, and fault detection—safeguard the entire control system from damage, minimizing downtime and maintenance costs. Its compact panel-mount design enables seamless integration into existing control systems, optimizing space without compromising performance.

Application Highlights

The IC660BBD022 delivers reliable performance and flexible adaptability for industrial automation systems, making it a preferred choice for engineers. Its wide voltage compatibility adapts to diverse industrial power sources, eliminating the need for additional voltage regulators. The IC660BBD022’s advanced diagnostic capabilities, including output pulse test and configurable input filter, enable quick fault localization and resolution, boosting maintenance efficiency. It is widely used in manufacturing lines, process automation, and packaging equipment, serving as a dependable Genius I/O solution for industrial control systems.
