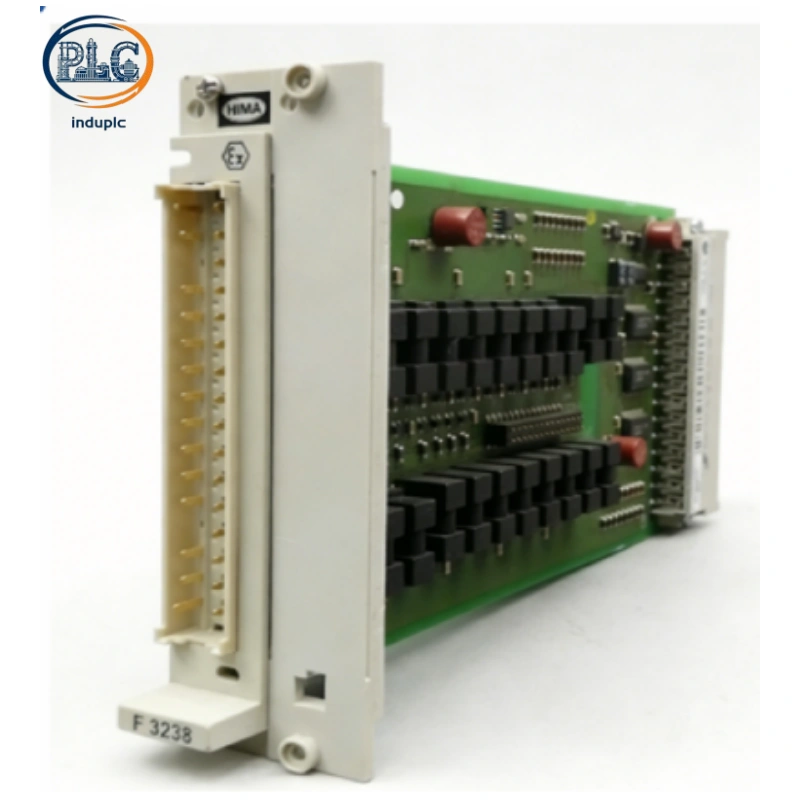

HIMA F3238: 8-Channel Safety Digital Input Module for Safety-Related Industrial Applications

1. Hardware Architecture And Redundancy Execution Mechanism

The HIMA F3238 is a compact 8-channel safety digital input module designed for safety-related industrial applications, serving as a specialized input component for acquiring safety-related digital signals in safety instrumented systems (SIS) and critical industrial control setups. Unlike high-capacity 16-channel input modules focused on large-scale systems, the F3238 is optimized for targeted, cost-effective signal acquisition with 8 independent digital input channels, balancing safety performance and flexibility for medium-sized industrial safety systems. It is certified for SIL 3 (IEC 61508) applications and meets safety requirements class AK 1 to 6, ensuring compliance with global safety regulations. The module features a compact, rugged design with a robust housing, engineered for long-term stable operation in diverse industrial environments, including standard and moderately harsh settings.

The hardware architecture of the F3238 is built around a compact safety signal processing core, providing efficient and reliable acquisition of safety-related digital signals for critical industrial applications. It features 8 independent digital input channels, supporting connection to safety-related proximity switches, DIN 19234 (NAMUR) proximity switches, and resistor-wired sensors, with each channel equipped with advanced fault detection mechanisms to monitor line integrity, detect short-circuits and line breaks in real time. The module supports 24V DC power input, with built-in surge protection and EMC filtering to resist electromagnetic interference and voltage fluctuations in industrial environments. It features a compact form factor suitable for DIN-rail installation, enabling easy integration into standard control cabinets, and has a lightweight design to facilitate flexible installation. The F3238 has an operating temperature range of -25°C to +70°C and a storage temperature range of -40°C to +85°C, with an operating humidity range of 5%-95% non-condensing, ensuring adaptability to diverse industrial conditions. It is designed for use with standard industrial cables and terminal blocks for reliable field wiring, with built-in safety isolation to protect against electrical interference and ensure safety isolation between field devices and the control system. The module undergoes automatic functional testing during operation, ensuring continuous reliable performance for safety-critical applications.

2. Supported Operating Platforms And Full Hardware Compatibility Inventory

The F3238 is compatible with HIMA’s H41q and H51q safety systems, supporting seamless integration into medium-sized safety control systems and critical industrial control setups. It cannot be used with older HIMA safety platforms that do not support its compact interface and communication protocols. The module can be configured and programmed using HIMA’s SILworX engineering software, which provides comprehensive tools for channel configuration, fault diagnosis, and system integration, with dedicated safety configuration functions to ensure compliance with SIL 3 standards. It supports multiple industrial communication protocols, including RS-485 and Ethernet, enabling seamless data exchange with DCS systems, third-party safety PLCs, and monitoring devices. The F3238 is designed to work with isolated 24V DC SELV power supplies, ensuring compliance with SIL 3 safety standards and minimizing electromagnetic interference. It also supports advanced channel-level diagnostics and automatic functional testing, enabling quick fault localization and ensuring continuous reliable operation for enhanced system reliability and maintenance efficiency.

Compatible peripheral accessories and field‑side equipment:

1. HIMA H41q and H51q safety systems (for system integration and logic coordination in medium-sized safety and critical control setups)

2. Isolated 24V DC SELV power supplies (compatible with the module’s power requirements, ensuring safe and stable power input and compliance with SIL 3 standards)

3. HIMA safety CPU modules (for processing the input signals and executing safety logic, compatible with the F3238’s communication protocols and safety requirements)

4. DIN-rail mounting kits (for secure installation in standard control cabinets, compatible with the module’s compact form factor)

5. Standard industrial cables and terminal blocks (for reliable field wiring of input channels, compatible with the module’s signal requirements and line monitoring specifications)

6. Field devices including safety-related proximity switches, DIN 19234 (NAMUR) proximity switches, resistor-wired sensors, emergency stop buttons, and safety door contacts (compatible with the module’s signal requirements, for safety-related digital signal input acquisition)

It should be noted that the F3238 requires an isolated 24V DC SELV power supply; non-isolated power supplies may cause electromagnetic interference and compromise the module’s safety performance, failing to meet SIL 3 compliance requirements. Always use HIMA-certified components and follow the manufacturer’s wiring guidelines to ensure proper safety isolation and compliance with global safety standards. The module’s automatic functional testing feature should be monitored regularly to ensure continuous reliable operation, and any fault alerts should be addressed promptly to maintain system safety. The module’s compact design is suitable for installation in tight control cabinets, but it should be installed in a controlled environment to avoid exposure to harsh chemicals, excessive moisture, or extreme mechanical stress. The module’s channel-level diagnostic features should be configured and monitored regularly to enhance system reliability, facilitate quick fault localization, and minimize maintenance downtime.

3. Industry-Oriented Deployment Scenarios and On-Site Pain-Point Solutions

3.1 Large-Scale Process Industry Safety Instrumented Systems (SIS)

Medium-sized process industry applications (such as pharmaceutical batch processing, chemical pilot plants, and food and beverage production) require compact, cost-effective safety input modules to monitor safety loops and critical process signals. Common on-site pain points include limited cabinet space, cost constraints, and compliance with SIL 3 safety standards. The F3238’s compact design saves valuable cabinet space, while its 8 input channels meet the needs of medium-sized safety systems, reducing the need for additional modules and lowering system costs. Its SIL 3 certification and compliance with safety requirements class AK 1 to 6 ensure compliance with strict safety standards, while its robust design ensures reliable operation in moderately harsh process environments. The module’s line monitoring and automatic functional testing features enhance fault diagnosis capabilities, reducing maintenance time and minimizing downtime in critical process operations.

3.2 Heavy Machinery and Robotics Safety Control

General industrial control applications (such as packaging equipment, material handling systems, and small-scale manufacturing lines) require compact, reliable safety input modules to monitor process signals and ensure operational safety. On-site challenges include limited installation space, flexible system integration needs, and cost-effectiveness. The F3238’s compact, lightweight design allows for easy installation in tight control cabinets, while its DIN-rail mounting capability simplifies integration into existing control systems. Its 8 input channels support the integration of numerous safety and process monitoring devices, including proximity switches, sensors, emergency stop buttons, and limit switches, providing comprehensive safety coverage. The module’s compliance with global safety standards ensures reliable operation, while its low power consumption minimizes energy costs, aligning with sustainable industrial practices.

3.3 Power Plant Safety Control Systems

Distributed power generation systems (such as small-scale gas turbines and renewable energy power plants) require compact, reliable safety input modules to monitor critical equipment and ensure safe operation. Common on-site pain points include diverse operating conditions, distributed system setups, and cost constraints. The F3238’s wide operating temperature range (-25°C to +70°C) allows for stable operation in diverse environmental conditions, while its compact design enables easy installation in distributed control cabinets. The module’s 8 input channels support the monitoring of critical safety signals from power generation equipment, complying with SIL 3 standards. Its support for standard industrial communication protocols enables seamless integration with DCS and monitoring systems, facilitating centralized data exchange and safety management. Its automatic functional testing and diagnostic features ensure reliable operation, reducing the risk of unexpected downtime and ensuring the safety of power generation systems.
