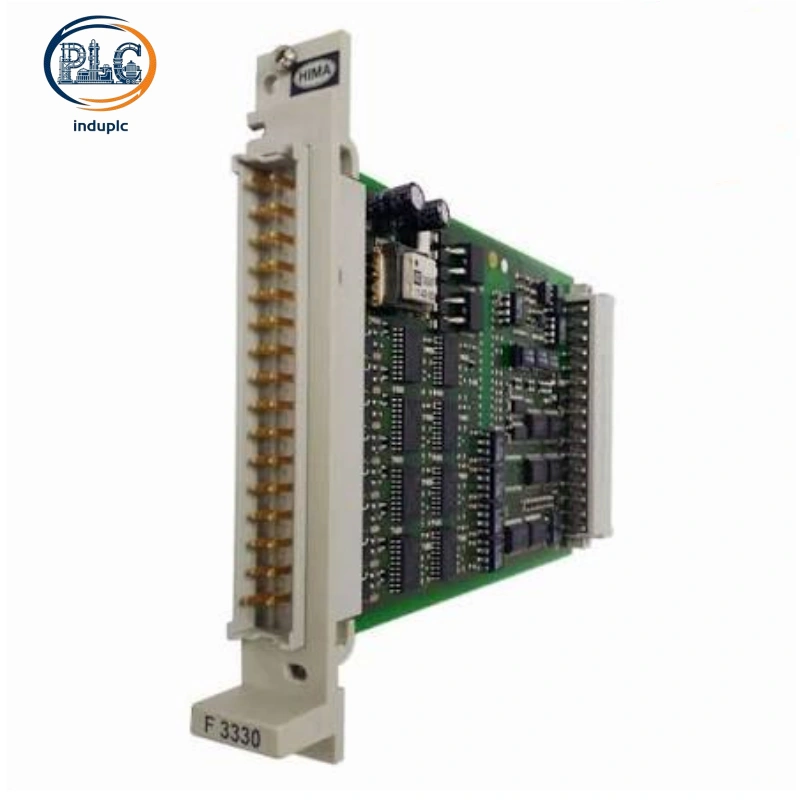

HIMA F3330: 8-Channel Safety-Related Output Module

1. Hardware Composition and Functional Characteristics

The HIMA F3330 is a dedicated 8-channel safety-related output module from HIMA’s safety control series. It is designed to deliver reliable control signal output for safety instrumented systems (SIS). These systems include Emergency Shutdown (ESD) and Fire and Gas (F&G) setups. The module focuses on high-performance safety output functionality. It provides stable control signals for various field safety devices. It supports medium to large-sized industrial safety system configurations. It holds SIL 3 (IEC 61508) certification. It complies with safety requirement class AK 1 to 6. It meets global safety regulations. Its compact, rugged housing ensures stable operation in standard and moderately harsh industrial environments. It integrates seamlessly into HIMA’s safety control platforms.

The F3330’s hardware is built around a dedicated safety output processing core. This core ensures efficient and reliable control signal transmission for safety-related applications. It has 8 independent digital output channels. These channels support 24V DC signal levels. Each channel can drive resistive or inductive loads up to 500 mA (12 W). It can also drive lamp loads up to 4 W. The module features integrated safety shutdown and safe isolation. Each channel has independent fault detection mechanisms. These mechanisms monitor output status in real time. They also detect short-circuits, line breaks, and voltage fluctuations. No output signal is generated if there is a break in the L- supply. The module supports 24V DC power input (18-32V DC). Its maximum power consumption is 5W. It includes built-in surge protection, EMC filtering, and undervoltage monitoring. These features resist electromagnetic interference and voltage instability. It has a compact form factor (70mm x 125mm x 90mm). It weighs approximately 0.6kg. It supports DIN-rail installation for easy integration into standard control cabinets. It operates stably in temperatures from -20°C to +65°C. Its storage temperature ranges from -40°C to +85°C. The operating humidity range is 5%-95% non-condensing. This adapts it to diverse industrial conditions. It uses standard industrial cables and terminal blocks for field wiring. It has reinforced safety isolation. This ensures reliable electrical isolation between the control system and field devices. It also prevents cross-talk between channels.

2. Compatible Platforms and Supporting Accessories

The F3330 is compatible with HIMA’s H41q and H51q safety systems. It integrates seamlessly into medium to large-sized safety control systems. It also works well in critical industrial control setups. It is not compatible with older HIMA safety platforms. These platforms lack support for its dedicated output interface and communication protocols. The module can be configured and programmed via HIMA’s SILworX engineering software. This software provides professional tools for channel configuration. It also supports fault diagnosis and system integration. It has dedicated safety configuration functions. These functions ensure compliance with SIL 3 standards. The module supports multiple industrial communication protocols. These include SafeEthernet, Modbus TCP, and HIMA’s proprietary protocols. This enables seamless data exchange with DCS systems. It also works with third-party safety PLCs and monitoring devices. The module is designed for use with isolated 24V DC SELV power supplies. This minimizes electromagnetic interference. It also meets SIL 3 safety requirements. It supports advanced channel-level diagnostics. It also has automatic functional testing. These features enable quick fault localization. They also enhance operational reliability. The diagnostic coverage is greater than 99% (typical value).

Compatible peripheral accessories and field‑side equipment:

1. HIMA H41q and H51q safety systems (for system integration and logic coordination in medium-sized safety control setups)

2. Isolated 24V DC SELV power supplies (compatible with the module’s power requirements, ensuring stable power input and SIL 3 compliance)

3. HIMA safety CPU modules (for processing input signals and executing safety logic, compatible with F3330’s communication protocols and safety requirements)

4. DIN-rail mounting kits (for secure installation in standard control cabinets, matching the module’s compact form factor)

5. Standard industrial cables and terminal blocks (for reliable field wiring, compatible with the module’s signal requirements and line monitoring specifications)

6. Field devices including control relays, safety valves, alarm indicators, and lamp loads (compatible with the module’s 24V DC output signal requirements and load specifications, for safety control execution)

The F3330 requires an isolated 24V DC SELV power supply (18-32V DC). Non-isolated power supplies may cause electromagnetic interference. They can also compromise safety performance. This would result in failure to meet SIL 3 compliance. Always use HIMA-certified components. Follow the manufacturer’s wiring guidelines. This ensures proper safety isolation and global safety compliance. Regularly monitor the module’s automatic functional testing status. Also check channel-level diagnostic data. Address fault alerts promptly. This maintains system safety. Install the module in a controlled environment. Avoid exposure to harsh chemicals, excessive moisture, or extreme mechanical stress. Ensure the load specifications of connected field devices match the module’s output capabilities. The maximum load is 500 mA for resistive/inductive loads and 4 W for lamp loads. This avoids overloading. Configure undervoltage monitoring parameters appropriately. This prevents erratic behavior during power fluctuations. Ensure proper line resistance control. This guarantees reliable signal transmission.

3. Application Scenarios and Practical Solutions

3.1 Medium-Sized Process Industry Safety Control

Medium to large-scale process industry applications have specific safety needs. These applications include oil and gas processing, chemical manufacturing, and pharmaceutical production. They require dedicated safety output modules. These modules execute control commands for safety valves, alarm devices, and emergency shutdown systems. Common on-site pain points include limited cabinet space. There are also strict safety compliance requirements. Reliable operation in harsh environments is another key challenge. The F3330’s compact design saves cabinet space. Its 8 output channels meet the needs of medium to large-sized safety systems. This reduces the need for additional modules. It also lowers system costs. The module’s SIL 3 certification ensures adherence to strict safety standards. Its compliance with AK 1-6 safety requirements further reinforces this. Its stable output capabilities ensure reliable operation in harsh process environments. The integrated safety shutdown function adds to this reliability. The module’s high diagnostic coverage enhances fault diagnosis efficiency. This reduces maintenance time. It also minimizes downtime in critical process operations.

3.2 Automated Production Line Safety Control

Automated production lines need compact, high-performance safety output modules. These lines include packaging equipment, material handling systems, and large-scale assembly lines. The modules control safety-related field devices. On-site challenges include limited installation space. There is also high-frequency vibration from equipment operation. Flexible system integration is another key requirement. The F3330’s compact, rugged design enables easy installation in tight control cabinets. Its DIN-rail mounting capability simplifies integration into existing control systems. Its 8 output channels support the control of various safety devices. This provides comprehensive safety coverage. The module’s built-in surge protection ensures resistance to vibration and electromagnetic interference. Its EMC filtering and undervoltage monitoring add to this resilience. This ensures stable operation in high-volume production environments. Its high load capacity (500 mA for resistive/inductive loads) enables control of a wider range of field devices.

3.3 Distributed Power Generation Safety Monitoring

Power plant safety control systems have unique safety requirements. These systems include thermal power plants, gas-fired power plants, and renewable energy power plants. They need compact, dedicated safety output modules. These modules control critical safety devices. They also execute emergency shutdown commands. Common on-site pain points include diverse operating conditions. There are also distributed system setups. Seamless integration with monitoring systems is another key challenge. The F3330’s wide operating temperature range enables stable operation in diverse environmental conditions. Its compact design facilitates installation in distributed control cabinets. Its 8 output channels support comprehensive control of critical power generation safety devices. This complies with SIL 3 standards. Support for standard industrial communication protocols enables seamless integration with DCS and monitoring systems. This facilitates centralized safety management. The module’s advanced diagnostic features ensure reliable operation. Its integrated safety shutdown function adds to this reliability. This reduces the risk of unexpected downtime in power generation systems.
