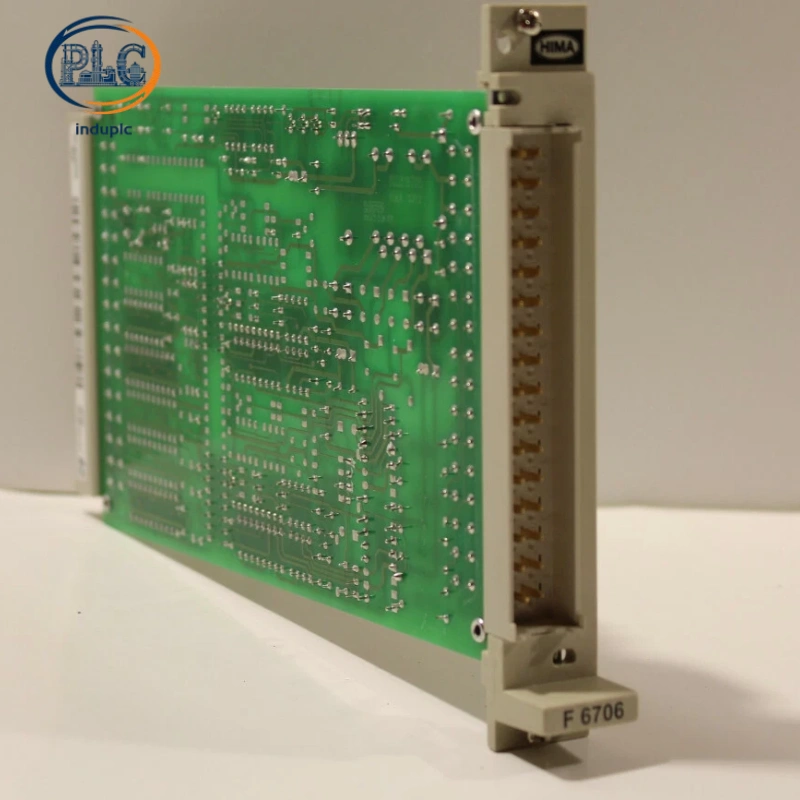

HIMA F6706: 4-Channel Analog Output Module

1. Hardware Composition and Functional Characteristics

The HIMA F6706 is a dedicated 4-channel analog output module from HIMA’s safety control series. It is designed for high-precision digital-to-analog conversion in safety instrumented systems (SIS). It serves as a critical bridge between safety controllers and field devices. It supports diverse analog output types for industrial field equipment. It holds SIL 3 (IEC 61508) certification. It complies with safety requirement class AK 6. It meets global safety regulations. Its compact, rugged design ensures stable operation in standard and moderately harsh industrial environments. It integrates seamlessly into HIMA’s H41q and H51q safety platforms.

The F6706’s hardware is built around a high-precision digital-to-analog conversion core. This core ensures accurate and reliable analog signal output for safety-related applications. It has 4 independent analog output channels. These channels support both current and voltage signal outputs. The current output range is 0/4–20mA, with bipolar connection support for -20mA to +20mA. The voltage output range is 0–10V. It features a 12-bit ADC resolution (4095 steps). This delivers precise conversion with a basic error of ≤0.2% (40µA) at 25°C. The operating error is ≤0.4% across 0–60°C. Each channel has independent safety isolation. This prevents electromagnetic interference and cross-talk between channels. It also ensures reliable electrical isolation between the control system and field devices. The module supports 24V DC power input. Its maximum power consumption is <6W. It includes built-in surge protection and EMC filtering. These features resist voltage fluctuations and electromagnetic interference. It has a compact form factor (90mm x 110mm x 60mm). It weighs approximately 0.25kg. It supports DIN-rail installation for easy integration into standard control cabinets. It operates stably in temperatures from -20°C to +70°C. Its storage temperature ranges from -40°C to +85°C. The operating humidity range is 5%-95% non-condensing. This adapts it to diverse industrial conditions. It uses standard industrial cables and terminal blocks for field wiring. It has integrated channel-level diagnostics. These mechanisms monitor output signal integrity in real time. They also detect signal loss, short-circuits, and abnormal voltage/current levels. It supports source/sink modes and automatic testing of linearity and crosstalk.

2. Compatible Platforms and Supporting Accessories

The F6706 is compatible with HIMA’s H41q and H51q safety systems. It integrates seamlessly into medium to large-sized safety control systems. It also works well in critical industrial control setups. It is not compatible with older HIMA safety platforms. These platforms lack support for its analog output interface and communication protocols. The module can be configured and programmed via HIMA’s SILworX engineering software. This software provides professional tools for channel configuration. It also supports signal calibration and fault diagnosis. It has dedicated safety configuration functions. These functions ensure compliance with SIL 3 standards. The module supports multiple industrial communication protocols. These include SafeEthernet, Modbus TCP, and HIMA’s proprietary protocols. This enables seamless data exchange with DCS systems. It also works with third-party safety PLCs and monitoring devices. The module is designed for use with isolated 24V DC SELV power supplies. This minimizes electromagnetic interference. It also meets SIL 3 safety requirements. It supports advanced channel-level diagnostics. It also has automatic functional testing. These features enable quick fault localization. They also enhance operational reliability. The diagnostic coverage is greater than 99% (typical value).

Compatible peripheral accessories and field‑side equipment:

1. HIMA H41q and H51q safety systems (for system integration and logic coordination in medium to large-sized safety control setups)

2. Isolated 24V DC SELV power supplies (compatible with the module’s power requirements, ensuring stable power input and SIL 3 compliance)

3. HIMA safety CPU modules (for processing digital signals and executing safety logic, compatible with F6705’s communication protocols and safety requirements)

4. DIN-rail mounting kits (for secure installation in standard control cabinets, matching the module’s compact form factor)

5. Standard industrial cables and terminal blocks (for reliable field wiring, compatible with the module’s signal requirements and line monitoring specifications)

6. Field devices including control valves, variable frequency drives, and analog indicators (compatible with the module’s 0/4–20mA current output and 0–10V voltage output specifications, for analog signal output and control)

The F6706 requires an isolated 24V DC SELV power supply. Non-isolated power supplies may cause electromagnetic interference. They can also compromise signal accuracy and safety performance. This would result in failure to meet SIL 3 compliance. Always use HIMA-certified components. Follow the manufacturer’s wiring guidelines. This ensures proper safety isolation and global safety compliance. Regularly monitor the module’s automatic functional testing status. Also check channel-level diagnostic data. Address fault alerts promptly. This maintains system safety and signal accuracy. Install the module in a controlled environment. Avoid exposure to harsh chemicals, excessive moisture, or extreme mechanical stress. Ensure the signal specifications of connected field devices match the module’s output capabilities. This avoids signal distortion or module damage. Configure signal calibration parameters appropriately. This ensures optimal conversion accuracy across the operating temperature range. Ensure proper line resistance control (maximum 1000m line length, considering burden resistance). This guarantees reliable analog signal transmission. The module supports source/sink modes; configure the mode based on the connected field device requirements.

3. Application Scenarios and Practical Solutions

3.1 Medium-Sized Process Industry Safety Control

Medium to large-scale process industry applications have specific safety and control needs. These applications include oil and gas processing, chemical manufacturing, and pharmaceutical production. They require high-precision analog output modules. These modules deliver control signals to critical field devices such as control valves and transmitters. Common on-site pain points include limited cabinet space. There are also strict safety compliance requirements. Reliable signal output in harsh environments is another key challenge. The F6706’s compact design saves cabinet space. Its 4 output channels meet the needs of medium to large-sized safety systems. This reduces the need for additional modules. It also lowers system costs. The module’s SIL 3 certification ensures adherence to strict safety standards. Its compliance with AK 6 safety requirements further reinforces this. Its high-precision 12-bit ADC ensures accurate signal conversion. This enables reliable control of critical process parameters. The module’s high diagnostic coverage enhances fault diagnosis efficiency. This reduces maintenance time. It also minimizes downtime in critical process operations.

3.2 Automated Production Line Safety Control

Automated production lines need compact, high-precision analog output modules. These lines include packaging equipment, material handling systems, and large-scale assembly lines. The modules deliver analog control signals to various process devices. On-site challenges include limited installation space. There is also high-frequency vibration from equipment operation. Flexible system integration is another key requirement. The F6706’s compact, lightweight design enables easy installation in tight control cabinets. Its DIN-rail mounting capability simplifies integration into existing control systems. Its 4 output channels support the control of diverse analog field devices. This provides comprehensive process control. The module’s built-in surge protection ensures resistance to vibration and electromagnetic interference. Its EMC filtering adds to this resilience. This ensures stable and accurate signal output in high-volume production environments. Its high conversion accuracy enables precise control of process parameters. This supports efficient and reliable production operations.

3.3 Distributed Power Generation Safety Monitoring

Power plant safety control systems have unique control requirements. These systems include thermal power plants, gas-fired power plants, and renewable energy power plants. They need compact, high-precision analog output modules. These modules deliver control signals to critical power generation equipment. Common on-site pain points include diverse operating conditions. There are also distributed system setups. Seamless integration with monitoring systems is another key challenge. The F6706’s wide operating temperature range enables stable operation in diverse environmental conditions. Its compact design facilitates installation in distributed control cabinets. Its 4 output channels support comprehensive control of critical power generation parameters. This complies with SIL 3 standards. Support for standard industrial communication protocols enables seamless integration with DCS and monitoring systems. This facilitates centralized safety management. The module’s advanced diagnostic features ensure reliable operation. Its high conversion accuracy ensures precise parameter control. This reduces the risk of unexpected downtime in power generation systems.
