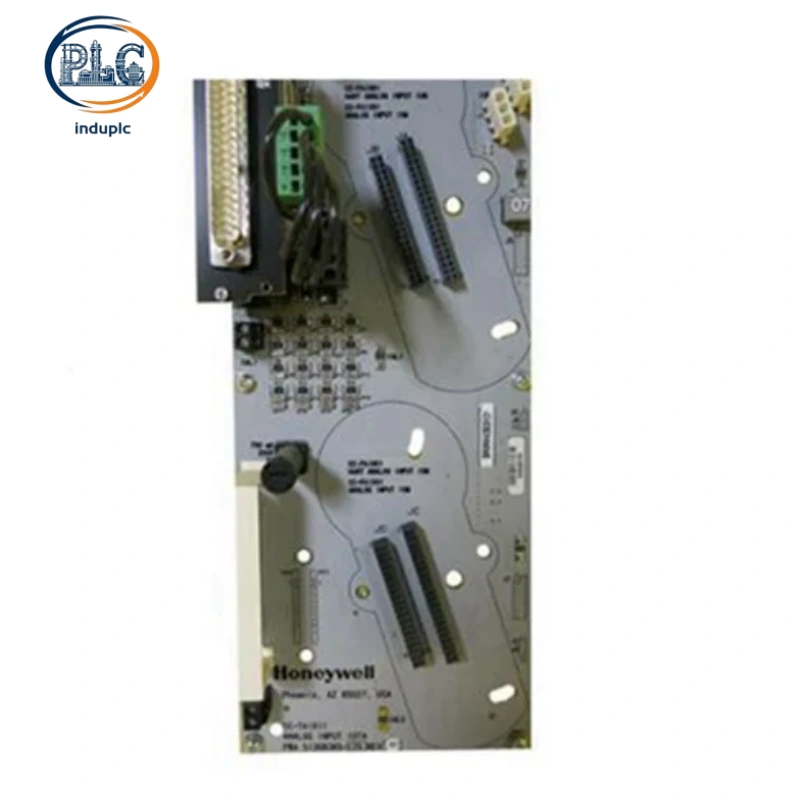

Honeywell CC‑TAID11 Differential Analog Input Module For C300‑PKS DCS

1. Hardware Design And Installation Adaptability

The Honeywell CC‑TAID11 is a high‑performance differential analog input module designed for Honeywell C300‑PKS DCS systems. The Honeywell CC‑TAID11 features a compact Series C form factor, optimized for seamless integration into standard C300 controller chassis and Experion‑PKS I/O racks. The Honeywell CC‑TAID11 adopts a rugged industrial casing with reinforced port protection, ensuring stable physical connection even in industrial environments with high vibration and electromagnetic interference. The Honeywell CC‑TAID11 supports standard rack‑mounting installation, fitting perfectly into designated slots of Honeywell C300‑PKS control cabinets without additional adapters or modifications. The Honeywell CC‑TAID11 is compatible with both original and upgraded C300‑PKS controller hardware, enabling easy replacement and system expansion for existing DCS setups.

2. Core Communication Performance And Redundancy Capability

The Honeywell CC‑TAID11 serves as a critical differential signal acquisition hub for Honeywell C300‑PKS systems, enhancing system data accuracy and anti‑interference capabilities. The Honeywell CC‑TAID11 supports multiple input ranges, including 0 to 5 V, 1 to 5 V, 0.4 to 2 V, and 4‑20 mA (through 250 Ω), adapting to diverse field instrument requirements. The Honeywell CC‑TAID11 features 16‑channel differential input design, with 1500 VDC channel‑to‑channel isolation, effectively preventing crosstalk between channels and isolating system components from on‑site interference. The Honeywell CC‑TAID11 supports redundant configurations, enabling seamless failover during signal anomalies to ensure uninterrupted system operation. The Honeywell CC‑TAID11 features a normal mode rejection ratio of 19 dB at 60 Hz and a single‑pole RC filter with -3 dB @ 6.5 Hz, ensuring stable and accurate signal acquisition even in high‑interference industrial environments.

3. Industrial Application Scenarios And Maintenance Guidelines

The Honeywell CC‑TAID11 is widely deployed in process industries relying on Honeywell C300‑PKS DCS systems, including petrochemical refineries, natural gas processing plants, and pharmaceutical manufacturing facilities. The Honeywell CC‑TAID11 excels in environments with high electromagnetic interference, such as power plants and heavy industrial production lines, ensuring stable differential signal acquisition for critical control loops. The Honeywell CC‑TAID11 features a wide operating temperature range of -40°C to 70°C, adapting to diverse industrial environmental conditions, and supports hot‑swap functionality to minimize downtime during maintenance. The Honeywell CC‑TAID11 requires regular preventive maintenance, including channel calibration and connection inspections, to maintain optimal signal acquisition performance. The Honeywell CC‑TAID11 is designed for easy on‑site replacement, minimizing downtime during maintenance and reducing operational risks for continuous production processes. The Honeywell CC‑TAID11 works in tandem with other Honeywell C300‑PKS components, such as controller modules and communication modules, to form a stable and efficient DCS control system.
