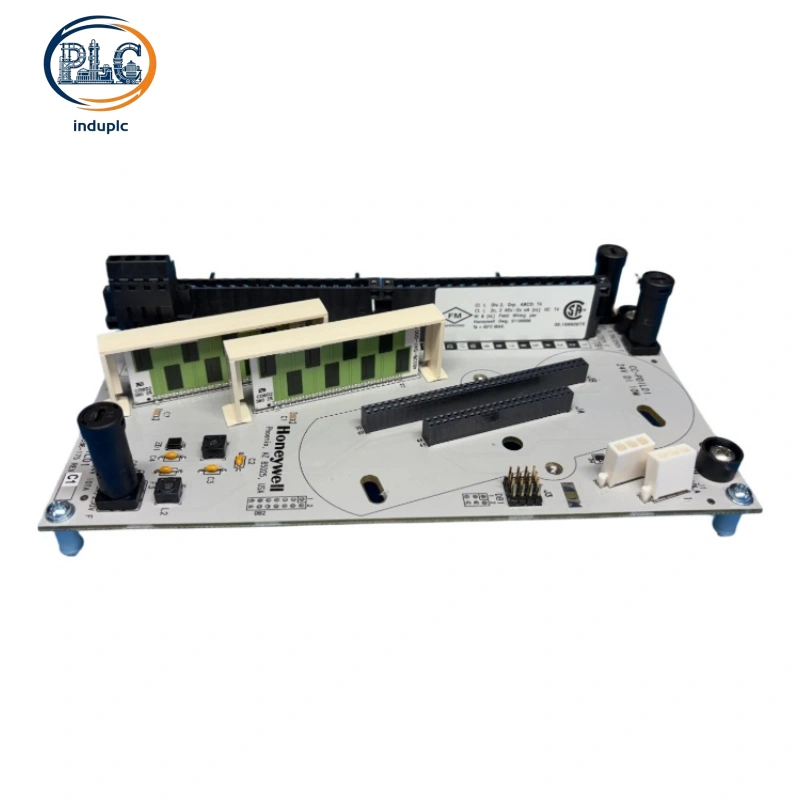

Honeywell CC‑TDIL01 Digital Input IOTA Module For C300‑PKS DCS

1. Hardware Design And Installation Adaptability

The Honeywell CC‑TDIL01 is a dedicated 24V DC digital input Input/Output Termination Assembly (IOTA) module designed for Honeywell C300‑PKS DCS systems. The Honeywell CC‑TDIL01 features a compact Series C form factor, optimized for seamless integration into standard C300 controller chassis and Experion‑PKS I/O racks. The Honeywell CC‑TDIL01 adopts a rugged industrial casing with reinforced port protection, ensuring stable physical connection even in industrial environments with high vibration and electromagnetic interference. The Honeywell CC‑TDIL01 supports standard rack‑mounting installation, fitting perfectly into designated slots of Honeywell C300‑PKS control cabinets without additional adapters or modifications. The Honeywell CC‑TDIL01 is compatible with both original and upgraded C300‑PKS controller hardware, enabling easy replacement and system expansion for existing DCS setups, and features mechanical keying to ensure correct installation orientation and reduce human error.

2. Core Communication Performance And Redundancy Capability

The Honeywell CC‑TDIL01 serves as a critical digital signal acquisition hub for Honeywell C300‑PKS systems, enhancing system signal reliability and scalability. The Honeywell CC‑TDIL01 features 32 high‑density digital input channels, supporting 24V DC signal input and adapting to diverse field device requirements, including contact inputs and voltage signals. The Honeywell CC‑TDIL01 provides robust signal isolation, safeguarding controllers from surges and noise, and ensuring stable signal transmission even in high‑interference industrial environments. The Honeywell CC‑TDIL01 supports redundant power inputs, enabling seamless failover during power anomalies to ensure uninterrupted system signal acquisition. The Honeywell CC‑TDIL01 draws power from I/O modules (typically 24V DC) with efficient power consumption, ensuring stable operation without excessive energy usage, and features LED status indicators for each channel to facilitate quick status monitoring and troubleshooting.

3. Industrial Application Scenarios And Maintenance Guidelines

The Honeywell CC‑TDIL01 is widely deployed in process industries relying on Honeywell C300‑PKS DCS systems, including petrochemical refineries, natural gas processing plants, and pharmaceutical manufacturing facilities. The Honeywell CC‑TDIL01 excels in environments with high electromagnetic interference, such as power plants and heavy industrial production lines, ensuring stable digital signal acquisition for critical control loops. The Honeywell CC‑TDIL01 features a wide operating temperature range of -20°C to +70°C, adapting to diverse industrial environmental conditions, and supports hot‑swap functionality to minimize downtime during maintenance. The Honeywell CC‑TDIL01 requires regular preventive maintenance, including port connection checks and firmware updates, to maintain optimal signal acquisition performance. The Honeywell CC‑TDIL01 is designed for easy on‑site replacement, minimizing downtime during maintenance and reducing operational risks for continuous production processes. The Honeywell CC‑TDIL01 works in tandem with other Honeywell C300‑PKS components, such as controller modules and communication modules, to form a stable and efficient DCS control system.
