Honeywell 900P01‑0001 24VDC Power Supply Module for ControlEdge HC900 Control System

1. Hardware Structure and Functional Configuration of Honeywell 900P01‑0001

The Honeywell 900P01‑0001 is a 24VDC power supply module belonging to the Honeywell HC900 series, designed to provide stable and reliable power for ControlEdge HC900 industrial control platforms. The Honeywell 900P01‑0001 serves as the core power hub of the HC900 system, responsible for converting input power into regulated 24VDC output to support the normal operation of CPU modules, I/O modules, and other system components. The Honeywell 900P01‑0001 features a compact, rugged industrial form factor optimized for seamless integration into standard HC900 controller chassis, with reinforced casing to withstand harsh industrial environments characterized by high vibration, electromagnetic interference, and fluctuating temperatures.

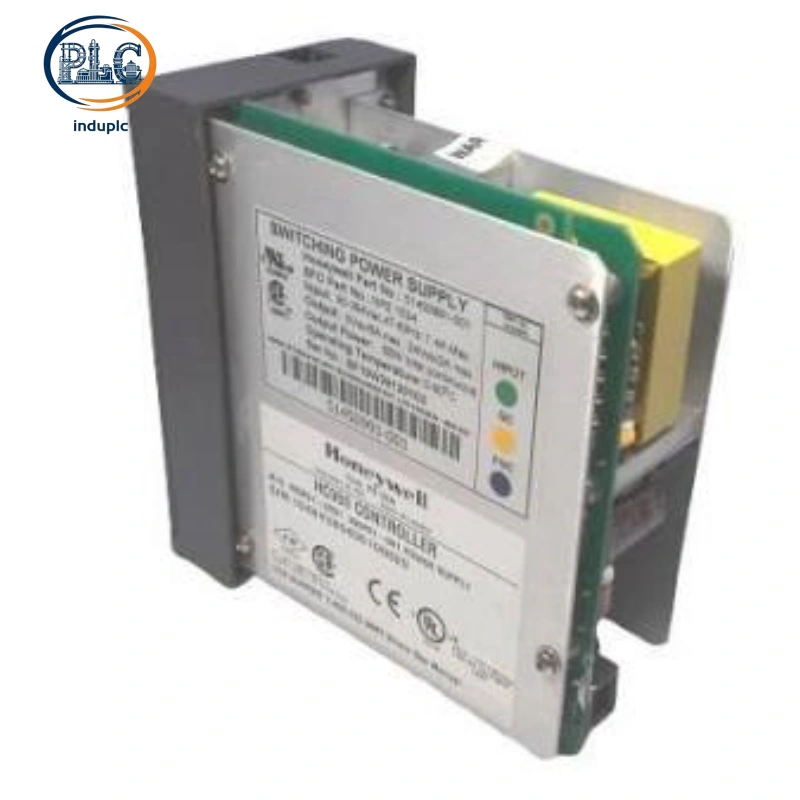

The Honeywell 900P01‑0001 adopts a rack-mounting structure that fits perfectly into designated slots of HC900 control cabinets without additional adapters or modifications. The front panel of the Honeywell 900P01‑0001 is equipped with clear status indicators, allowing operation and maintenance personnel to quickly identify power supply status, voltage abnormalities, and module faults. The module supports standard rack-mounted installation, making it suitable for diverse industrial control system configurations. The Honeywell 900P01‑0001 is compatible with a wide range of HC900 CPU modules and I/O modules, supporting easy system expansion and hardware replacement for existing automation setups.

2. Core Performance and Functional Principles of Honeywell 900P01‑0001

The Honeywell 900P01‑0001 is built with high-quality industrial power conversion circuitry, delivering stable and efficient power output for HC900 system components. The Honeywell 900P01‑0001 supports a wide input voltage range, ensuring compatibility with diverse industrial power supply environments, and provides a regulated 24VDC output to meet the power requirements of HC900 modules. The module is equipped with comprehensive protection mechanisms, including overvoltage, overload, and short-circuit protection, effectively safeguarding the HC900 system from power-related damage. The Honeywell 900P01‑0001 operates with high efficiency, minimizing energy loss and ensuring reliable power delivery for continuous industrial operations.

Core Hardware Parameters

• Core Function: 24VDC power supply module for HC900 system, providing stable power to CPU, I/O modules and other components

• Input Voltage Range: 9VDC to 15VDC

• Output Voltage: 24VDC regulated

• Protection Mechanisms: Overvoltage, overload, and short-circuit protection

• Mounting Type: Rack-mounted (compatible with standard HC900 chassis)

• Dimensions: 137 mm H x 72.6 mm W x 151.7 mm D

• Weight: 820 g

• Operating Temperature Range: 0°C to +60°C, non-condensing humidity 10% to 90%RH

• Storage Temperature Range: -40°C to +70°C, non-condensing humidity 5% to 95%RH

• Certifications: CE, TUV, UL508, CSA, ensuring compliance with industrial safety standards

3. Industry Adaptation, System Compatibility and Maintenance Points of Honeywell 900P01‑0001

The Honeywell 900P01‑0001 is fully compatible with the ControlEdge HC900 process control system, and can be combined with HC900 CPU modules, I/O modules, and other components to build a complete industrial control system. The Honeywell 900P01‑0001 supports seamless integration into HC900 chassis, requiring no additional configuration for basic power supply functions. The module is also compatible with Experion PKS systems, enabling seamless integration into Honeywell’s industrial control ecosystem and reducing engineering and maintenance costs. Note that the Honeywell 900P01‑0001 is a discontinued model, replaced by the 900P01-0301 power supply module for continued support.

The Honeywell 900P01‑0001 is widely applied in diverse industrial scenarios requiring reliable power supply for HC900 control systems, such as pharmaceutical processing, boiler control, water treatment, building material production, and general manufacturing. The Honeywell 900P01‑0001 provides continuous and stable power to ensure the normal operation of HC900 system components, supporting uninterrupted industrial production. Daily maintenance of the Honeywell 900P01‑0001 includes regular inspection of connection tightness, cleaning of circuit board dust, and verification of power output stability. The module supports hot-swapping in compatible configurations, minimizing downtime during maintenance and ensuring uninterrupted production operations.
