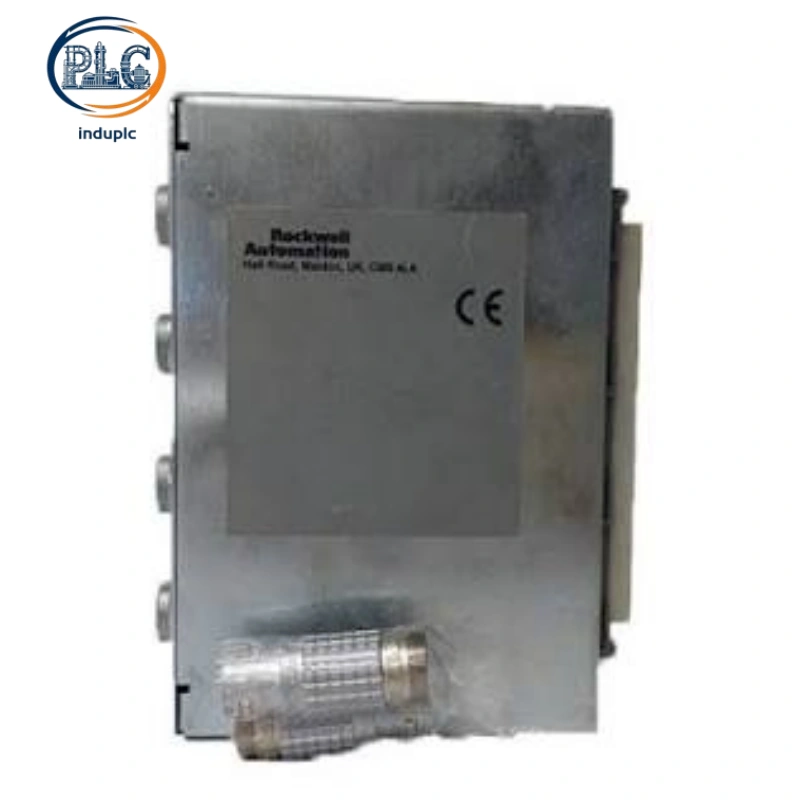

ICS‑Triplex T8312-4 Trusted TMR Expander Interface Adapter, 4-Channel Connectivity

1. Core Expansion and Connectivity Performance of ICS‑Triplex T8312-4

ICS‑Triplex T8312-4 is a high-performance TMR (Triple Modular Redundant) expander interface adapter designed for safety-critical industrial control systems, delivering reliable multi-channel connectivity and seamless chassis expansion to support scalable system operation. ICS‑Triplex T8312-4 supports up to 4 independent expander chassis connections, enabling flexible system expansion to meet diverse industrial operational needs. The module operates with a nominal 24 VDC input voltage, with a power consumption of 6 W, ensuring efficient power usage while maintaining stable performance. ICS‑Triplex T8312-4 fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where system scalability and connectivity reliability are critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8312-4

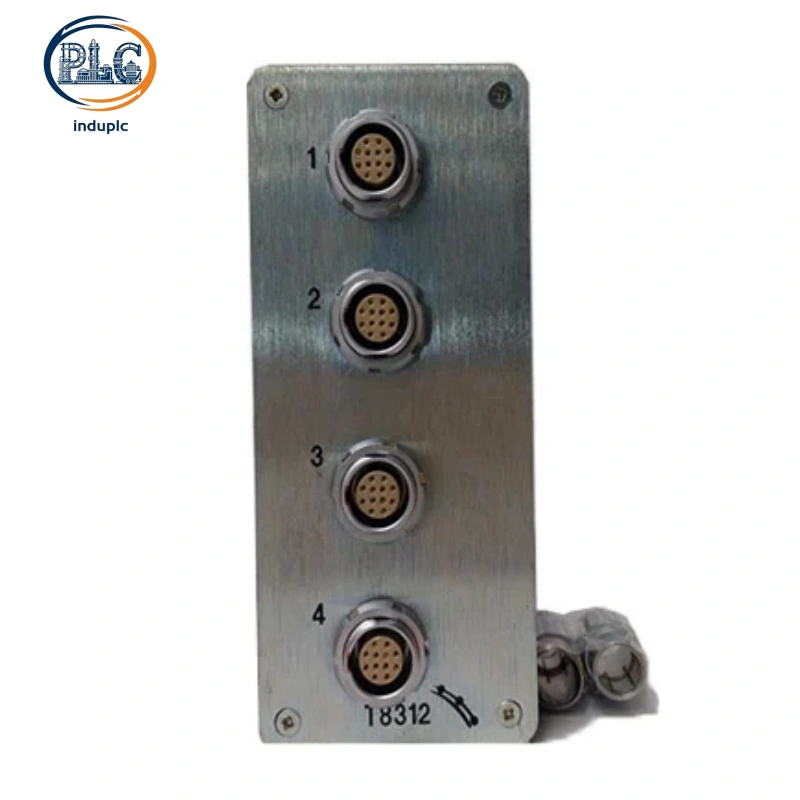

ICS‑Triplex T8312-4 adopts a compact, rack-mounted industrial design with dimensions of 31.8 mm (height) × 168 mm (width) × 147 mm (depth), and a weight of approximately 0.6 kg, fitting seamlessly into standard Trusted system racks without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8312-4 is its robust connectivity options, featuring four 12-pin ODU connectors for expander chassis connections and a 96-way C-type connector for interfacing with the controller chassis. ICS‑Triplex T8312-4 is equipped with dedicated hardware and software test regimes that enable fast fault recognition and response, along with LED indicators for real-time feedback on module health, connectivity status, and fault conditions to support quick on-site troubleshooting.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8312-4

ICS‑Triplex T8312-4 is widely deployed in safety-critical industrial scenarios including chemical processing, power generation, offshore platforms, and pharmaceutical manufacturing, where scalable system expansion and reliable connectivity are essential for system integrity. ICS‑Triplex T8312-4 operates stably within a wide operating temperature range of -40°C to +70°C, with a storage temperature range of -40°C to +85°C, and withstands non-condensing humidity of 5% to 95% RH. ICS‑Triplex T8312-4 features robust metal enclosure construction with surge-resistant isolation components, protecting against electromagnetic interference and voltage fluctuations in harsh industrial environments. The module’s TMR architecture ensures automatic fault handling without nuisance alarming, while its compatibility with ICS-Triplex PLC systems enables flexible configuration to meet diverse operational needs.
