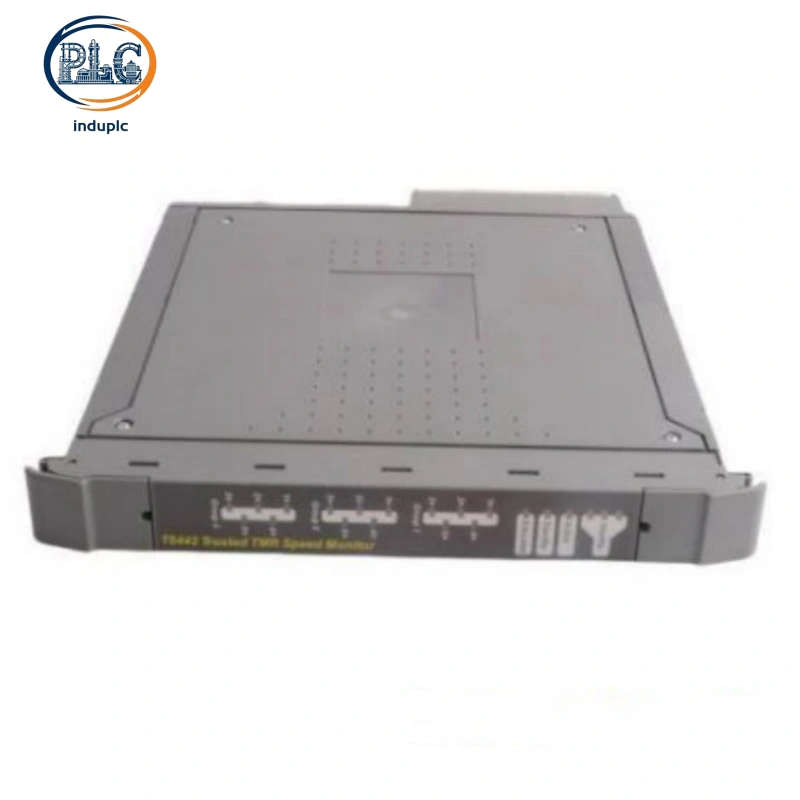

ICS‑Triplex T8442C Trusted TMR Speed Monitor Module, 0-6000 RPM Monitoring Range

1. Core Speed Monitoring Performance of ICS‑Triplex T8442C

ICS‑Triplex T8442C is a high-performance TMR (Triple Modular Redundant) speed monitor module designed for safety-critical industrial control systems, delivering reliable and high-precision speed monitoring and overspeed protection to support uninterrupted system operation. ICS‑Triplex T8442C features a wide speed monitoring range of 0 to 6000 RPM, enabling seamless monitoring of various rotating equipment in industrial settings. The module operates with a 24 VDC (±10%) system supply voltage, ensuring compatibility with diverse industrial power supply environments. ICS‑Triplex T8442C is equipped with de-energize to trip relays with normally open or closed contacts, providing reliable output for safety-related control actions, along with an average fault detection time of 0.5 hours for timely fault identification. ICS‑Triplex T8442C fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where speed monitoring reliability is critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8442C

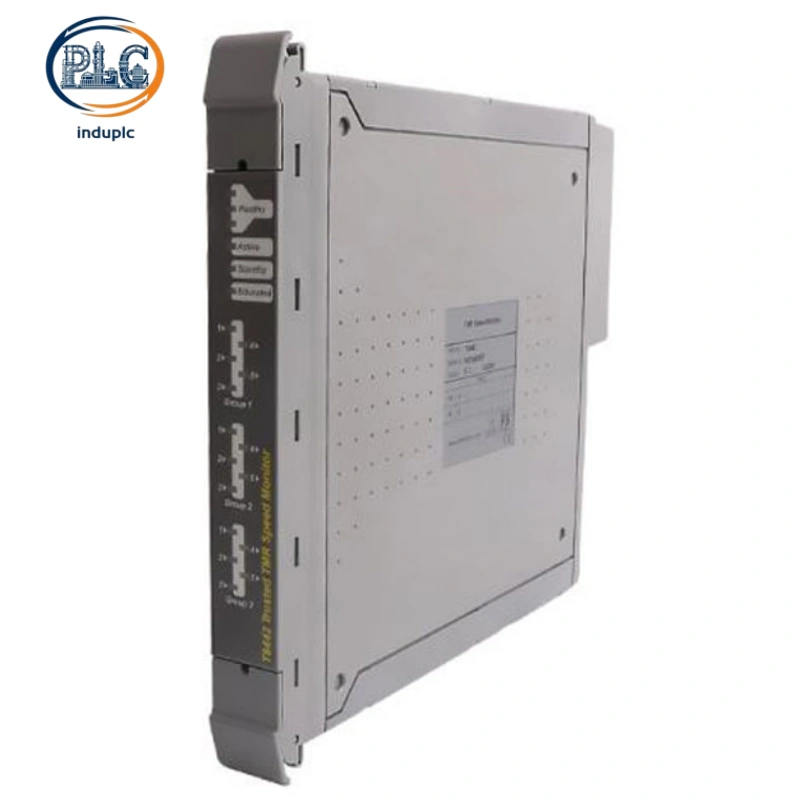

ICS‑Triplex T8442C adopts a compact, rack-mounted industrial design with dimensions of 266 mm × 31 mm × 303 mm and a weight of approximately 1.18 kg, fitting seamlessly into standard Trusted system racks without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8442C is its implementation of 2-out-of-3 (2oo3) voting logic within a single module, enhancing reliability and safety during operation without compromising performance. ICS‑Triplex T8442C features an industrial-grade metal alloy housing for EMI shielding, providing robust protection against electromagnetic interference and voltage fluctuations in harsh industrial environments. The module also features dedicated hardware and software test regimes that enable fast fault recognition and response, along with front-panel LED indicators for real-time feedback on module health, monitoring status, and fault conditions to support quick on-site troubleshooting.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8442C

ICS‑Triplex T8442C is widely deployed in safety-critical industrial scenarios including large chemical processing plants, power generation facilities, offshore platforms, and manufacturing lines with rotating equipment, where reliable speed monitoring and overspeed protection are essential for system integrity. ICS‑Triplex T8442C operates stably within a wide operating temperature range of 0°C to +60°C, with a storage temperature range of -40°C to +85°C, and withstands non-condensing humidity of 5% to 95% RH, with a maximum operating altitude of 2000 meters without performance derating. ICS‑Triplex T8442C features robust industrial-grade construction, ensuring durability in challenging industrial environments. The module is compatible with all ICS-Triplex systems and supports seamless integration with safety instrumented systems, while its TÜV certification ensures compliance with global industrial safety standards, making it a versatile and reliable choice for diverse industrial automation applications.
