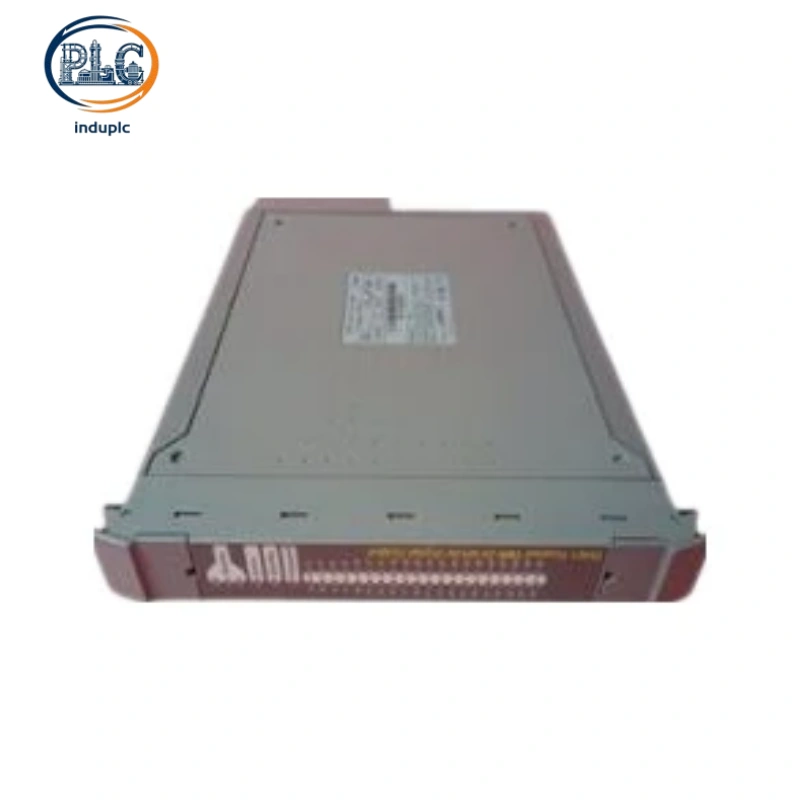

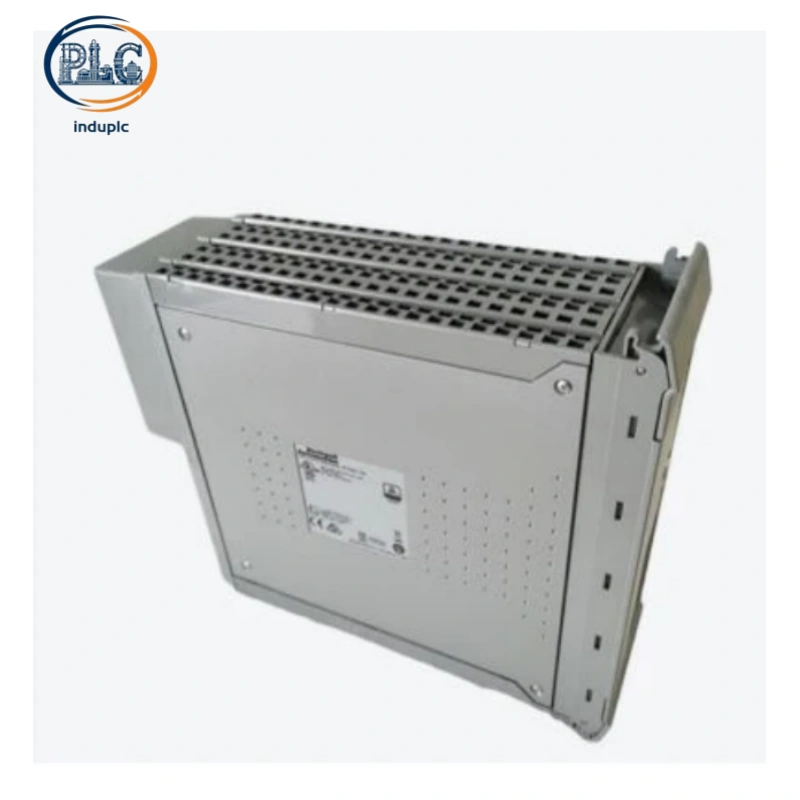

ICS‑Triplex T8448 Trusted TMR Zone Interface Module, 40-Channel Configurable Capacity

1. Core Zone Interface Performance of ICS‑Triplex T8448

ICS‑Triplex T8448 is a high-performance TMR (Triple Modular Redundant) zone interface module designed for safety-critical industrial control systems, delivering reliable multi-channel signal interfacing and zone-based isolation to support uninterrupted system operation. ICS‑Triplex T8448 features 40 individually configurable TMR channels, supporting both digital and analog signals including 4-20 mA analog inputs, digital inputs, and digital outputs, with 5 isolated power groups for enhanced signal integrity. The module operates with a nominal 24 VDC system supply voltage, with a current consumption of 50 mA, ensuring efficient power usage while maintaining stable performance. ICS‑Triplex T8448 is equipped with triplicated diagnostic tests for current and voltage, enabling stuck-on and stuck-off failure detection, along with automatic time-stamped SOE (Sequence of Events) logging for efficient event tracking. ICS‑Triplex T8448 fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where zone-based signal interfacing reliability is critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8448

ICS‑Triplex T8448 adopts a compact, rack-mounted industrial design with dimensions of 216 mm × 127 mm × 102 mm and a weight of approximately 1.2 kg, fitting seamlessly into standard Trusted system racks without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8448 is its implementation of 2-out-of-3 (2oo3) voting logic within a single module, enhancing reliability and safety during operation without compromising performance. ICS‑Triplex T8448 features an industrial-grade metal alloy housing for EMI shielding, providing robust protection against electromagnetic interference and voltage fluctuations in harsh industrial environments. The module also features dedicated hardware and software test regimes that enable fast fault recognition and response, along with front-panel LED indicators for real-time feedback on module health, signal status, and fault conditions to support quick on-site troubleshooting, while its terminal block connection type ensures secure and convenient wiring for field devices.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8448

ICS‑Triplex T8448 is widely deployed in safety-critical industrial scenarios including large chemical processing plants, power generation facilities, offshore platforms, and pharmaceutical manufacturing lines, where reliable zone-based signal interfacing and isolation are essential for system integrity. ICS‑Triplex T8448 operates stably within a wide operating temperature range of -40°C to +85°C, with a storage temperature range of -40°C to +85°C, and withstands non-condensing humidity of 5% to 95% RH. ICS‑Triplex T8448 features robust industrial-grade construction, ensuring durability in challenging industrial environments. The module is compatible with all ICS-Triplex systems and supports seamless integration with safety instrumented systems, while its ATEX, IECEx, and TÜV certifications ensure compliance with global industrial safety standards, making it a versatile and reliable choice for diverse industrial automation applications.
