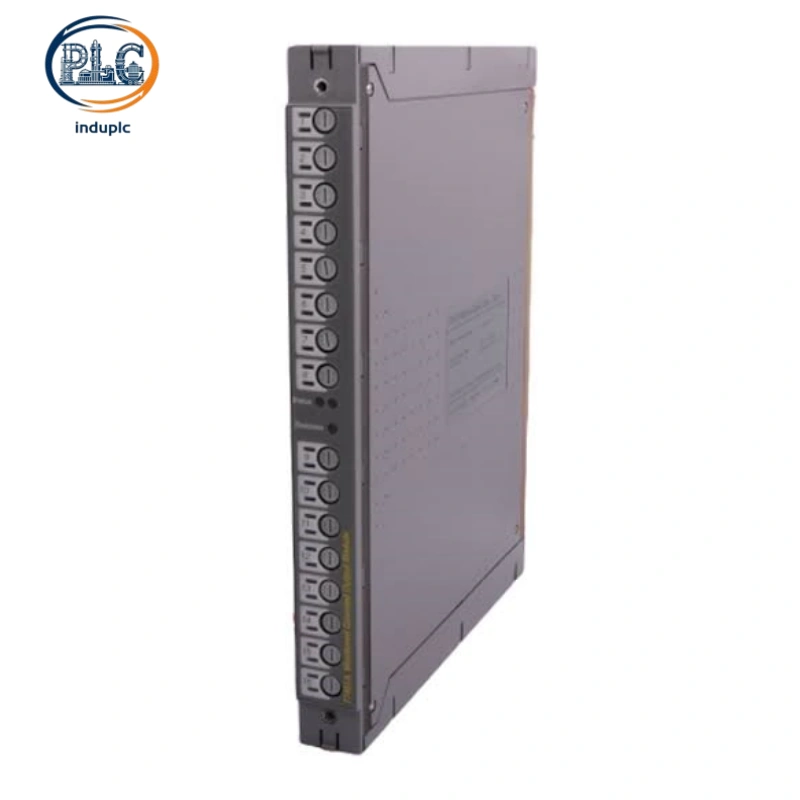

ICS‑Triplex T8451C Trusted TMR Digital Output Module, 40-Channel Capacity

1. Core Digital Output Performance of ICS‑Triplex T8451C

ICS‑Triplex T8451C is a high-performance TMR (Triple Modular Redundant) digital output module designed for safety-critical industrial control systems, delivering reliable and fault-tolerant digital signal output to support uninterrupted system operation. ICS‑Triplex T8451C features a 40-channel high-density TMR output design, divided into 5 independent power groups with 8 outputs each, enabling seamless control of a wide range of field devices. The module operates with an operational output/field voltage range of 18-32 VDC, with a maximum continuous current of 2 A per channel and 8 A per power group, ensuring stable power delivery for diverse field applications. ICS‑Triplex T8451C is equipped with a 0.5 ms output switch delay and 0.5 ms sampling update time, along with 1 ms resolution SOE (Sequence of Events) logging and triplicated diagnostic tests for current and voltage, enabling stuck-on and stuck-off failure detection for enhanced system reliability. ICS‑Triplex T8451C fully complies with IEC 61508 SIL 3 safety standards, making it a dependable choice for high-risk industrial applications where digital output reliability is critical.

2. Hardware Design and Installation Advantages of ICS‑Triplex T8451C

ICS‑Triplex T8451C adopts a compact, rack-mounted industrial design with dimensions of 208 mm × 120 mm × 55 mm and a weight of approximately 0.63 kg, fitting seamlessly into standard Trusted system racks without requiring extra adapters for installation. A key advantage of ICS‑Triplex T8451C is its implementation of 2-out-of-3 (2oo3) voting logic within a single module, enhancing reliability and safety during operation without compromising performance. ICS‑Triplex T8451C features photoelectric isolation with 2500 V pulse-tolerant barriers, providing robust protection against electromagnetic interference and voltage fluctuations in harsh industrial environments. The module also features dedicated hardware and software test regimes that enable fast fault recognition and response, along with front-panel LED indicators for real-time feedback on module health, output status, and fault conditions to support quick on-site troubleshooting, while its terminal block connection type ensures secure and convenient wiring for field devices.

3. Industrial Application and Environmental Adaptability of ICS‑Triplex T8451C

ICS‑Triplex T8451C is widely deployed in safety-critical industrial scenarios including large chemical processing plants, power generation facilities, offshore platforms, and pharmaceutical manufacturing lines, where reliable digital signal output is essential for system integrity. ICS‑Triplex T8451C operates stably within a wide operating temperature range of -20°C to +70°C, with a storage temperature range of -40°C to +85°C, and withstands non-condensing humidity of 5% to 95% RH. ICS‑Triplex T8451C features robust industrial-grade construction with IP20 protection class, ensuring durability in challenging industrial environments. The module is compatible with all ICS-Triplex systems and supports seamless integration with safety instrumented systems, while its CE, UL, and ATEX/IECEx certifications ensure compliance with global industrial safety standards, making it a versatile and reliable choice for diverse industrial automation applications.
