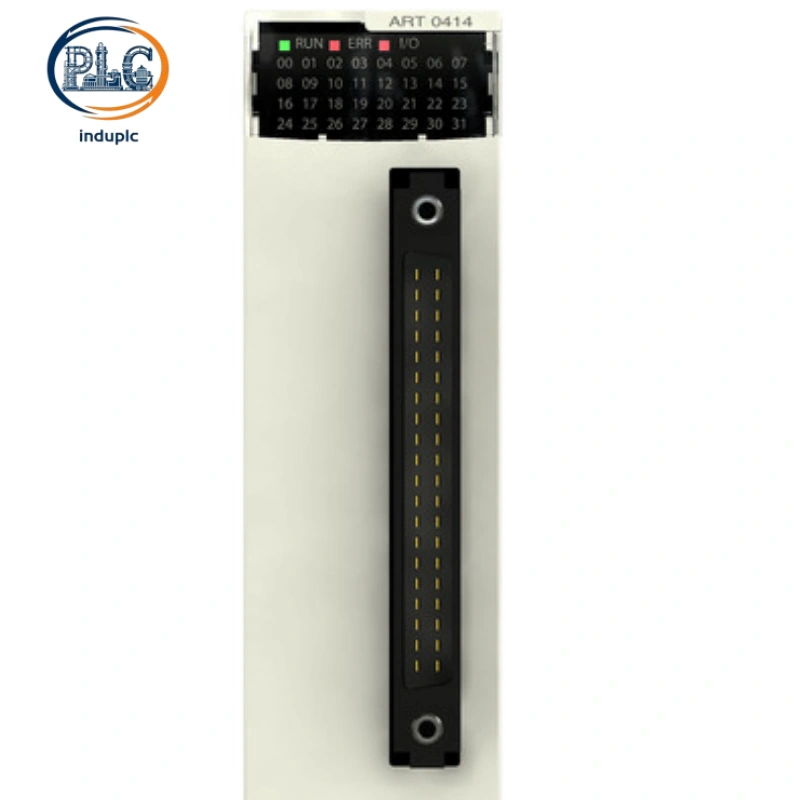

Schneider BMXART0414 Isolated Low-Level Analog Input Module, 4-Channel 15-Bit Modicon X80 PLC

Shop the Schneider BMXART0414 isolated analog input module designed for Modicon X80 and M340 PLC systems. This 4-channel 15-bit unit supports low-level voltage, thermocouple and RTD signal acquisition, delivering 120dB common mode rejection and fast channel scanning for precise industrial temperature and process monitoring in harsh environments.

Schneider BMXART0414 Isolated Low-Level Analog Input Module, 4-Channel 15-Bit Industrial Signal Acquisition

1. Precision Sensing Performance of Schneider BMXART0414 Low-Level Input Unit

Multi-Type Low-Level Signal Compatibility

Schneider BMXART0414 serves as a dedicated low-level analog input module optimized for micro-signal collection in industrial process systems. The hardware supports multiple weak signal types ranging from ±40mV to ±1.28V low-level voltage, alongside standard thermocouple and RTD sensor inputs. The 15-bit plus sign resolution of Schneider BMXART0414 captures subtle signal variations that conventional analog modules fail to identify, securing accurate data collection for precision process monitoring. Built-in first-order numeric filtering stabilizes fluctuating field signals and eliminates transient data errors in complex industrial settings.

High Anti-Interference Signal Stability

Schneider BMXART0414 integrates 120dB common mode rejection capability, a core feature that suppresses ambient electromagnetic interference from industrial motors and high-power equipment. Full channel-to-channel electrical isolation blocks cross-signal crosstalk during multi-channel simultaneous operation. The module adopts independent signal conversion circuits for each channel, maintaining consistent measurement accuracy even when all four channels operate at full load.

2. Structural Design And Field Wiring Adaptability of Schneider BMXART0414

Professional 40-Pin FCN Interface Configuration

Schneider BMXART0414 adopts a standardized 40-pin FCN front interface, matching dedicated prefabricated cables for quick field wiring assembly. The interface layout follows industrial safety specifications, separating signal terminals and grounding terminals to avoid wrong wiring risks. Modular structural design supports fast plug-and-play installation on Modicon X80 backplanes, cutting on-site wiring and debugging time significantly.

Harsh Environment Resistant Construction

Schneider BMXART0414 features industrial-grade circuit protection and conformal coating options for humid, dusty and corrosive workshop environments. The compact rack-mounted structure fits standard DIN rail control cabinets without occupying extra installation space. A rated operating temperature range covers conventional industrial cabinet conditions, delivering stable long-term operation in non-ventilated electrical enclosures.

3. System Matching And Industrial Application Scenarios of Schneider BMXART0414

Seamless Modicon PLC System Integration

Schneider BMXART0414 achieves perfect compatibility with Modicon M340 and X80 series PLC platforms. The module supports dynamic configuration modification and offline parameter debugging, fitting new system construction and old equipment renovation projects. Adaptive scanning cycles adjust according to sensor types, with 200ms response for thermocouple channels and 400ms response for RTD channels to balance efficiency and accuracy.

Precision Industrial Process Monitoring Applications

This Schneider analog module excels in temperature detection and micro-pressure monitoring scenarios that demand ultra-high precision. Chemical manufacturing lines deploy the unit for reactor temperature real-time tracking via thermocouple sensors. Energy power plants utilize RTD signal acquisition for equipment temperature early warning. Pharmaceutical and food processing factories rely on low-level voltage signal collection to stabilize closed-loop production control.
