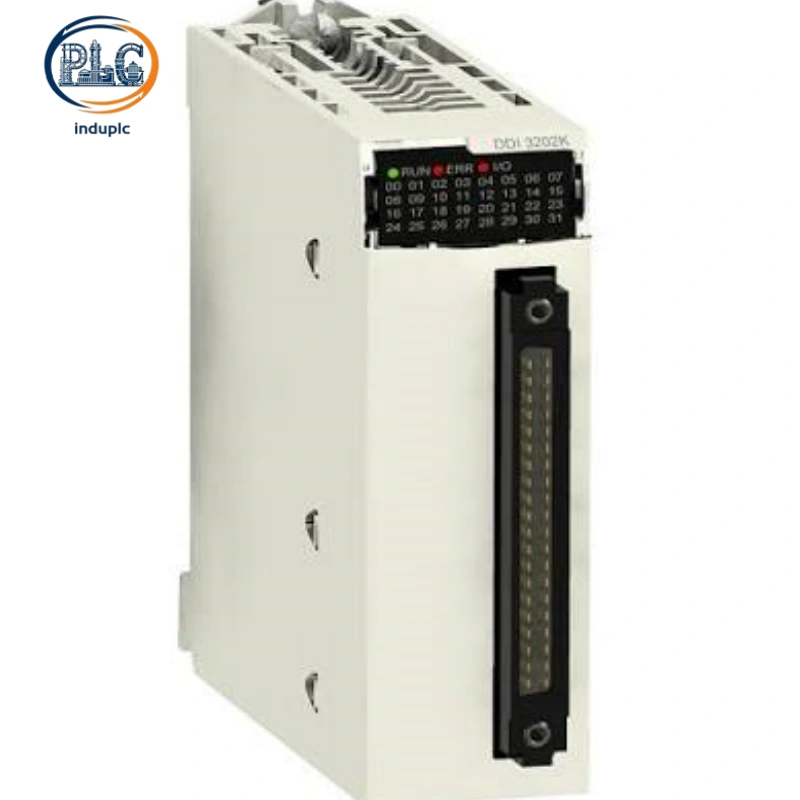

Schneider BMXDDI3202K 32-Channel Discrete Input Module, 24VDC Positive Logic Modicon X80 PLC

Schneider BMXDDI3202K is a high-density 32-channel discrete input module built for Modicon X80 and M340 PLC systems. This 24VDC positive logic unit supports standard industrial proximity sensors, features 4ms fast DC filtering and 2500V isolation, delivering stable digital signal acquisition for large-scale factory automation and process control projects.

Schneider BMXDDI3202K 32-Channel High-Density Discrete Input Module, 24VDC Positive Logic Industrial PLC Hardware

1. Electrical Performance And Standardized Signal Specifications of Schneider BMXDDI3202K

Precise 24VDC Positive Logic Input Parameters

Schneider BMXDDI3202K adopts industrial-standard 24VDC positive logic design, matching mainstream low-voltage industrial sensor power supply standards. The module supports a 19V to 30V wide working voltage range, adapting to voltage fluctuations in on-site industrial power distribution loops. Each channel maintains a fixed 2.5mA input current and 9600 Ohms input impedance, ensuring consistent signal trigger thresholds for long-term stable data collection. Strict voltage level definition defines 11V and above as valid high-level signals and 5V and below as low-level signals, eliminating ambiguous signal judgment in complex field environments.

Sensor Compatibility And Built-In Filtering Mechanism

Schneider BMXDDI3202K complies with IEC 61131-2 Type 1 and IEC 60947-5-2 industry standards, fully compatible with 2-wire and 3-wire industrial proximity sensors. Integrated DC filtering circuitry delivers 4ms typical filtering time and 7ms maximum filtering time, effectively suppressing transient pulse interference generated by motor startup and power switching. The hardware design avoids signal jitter and false triggering, securing accurate response to on-site switch state changes and sensor status feedback.

2. Isolation Safety And Compact Hardware Layout of Schneider BMXDDI3202K

High-Insulation Safety Protection Design

Schneider BMXDDI3202K equips 2500V channel-to-PLC isolation performance, forming reliable electrical separation between field equipment and PLC internal circuits. The isolation structure blocks surge voltage and common-mode interference from field wiring, preventing high-voltage breakdown damage to PLC backplane and main control units. Independent circuit partitioning for each input group avoids cross-channel signal coupling, maintaining signal independence during full-load 32-channel simultaneous operation.

High-Density Rack-Mount Space-Saving Structure

Schneider BMXDDI3202K integrates 32 independent discrete input points in a single standard module, greatly improving PLC rack I/O density and saving cabinet installation space. The standardized Modicon X80 rack mounting structure supports direct plug-and-play installation on X80 series backplanes without additional adapters. Industrial-grade conformal coating enhances circuit board durability, adapting to dusty, humid and temperature-variable industrial cabinet environments for long-term continuous operation.

3. System Compatibility And Practical Industrial Deployment Value of Schneider BMXDDI3202K

Full Modicon X80 And M340 System Adaptation

Schneider BMXDDI3202K achieves native compatibility with Modicon M340 and X80 PLC platforms, supporting unified system configuration and program debugging through dedicated Schneider programming software. The module supports hot-swappable system expansion and old equipment renovation, enabling fast I/O capacity upgrade without overall system shutdown. Uniform bus communication protocol ensures real-time and stable data interaction between the module and PLC CPU, matching industrial real-time control cycle requirements.

Large-Scale Automation I/O Expansion Application Scenarios

This high-density discrete input hardware suits large-scale automation projects requiring massive switch signal collection. Factory assembly lines deploy the module to gather limit switch, photoelectric sensor and proximity sensor signals for equipment linkage control. Water treatment plants use the unit to monitor pump status, valve feedback and protection switch signals. Logistics sorting systems rely on the 32-channel high-capacity design to realize multi-point signal synchronous acquisition, improving overall automation operation efficiency.
