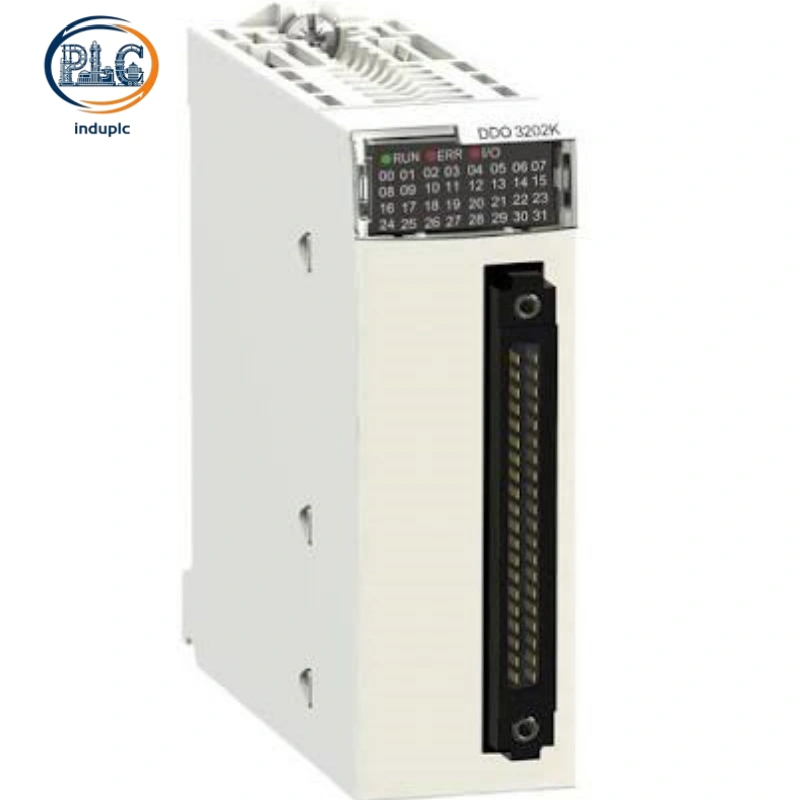

Schneider BMXDDO3202K 32-Channel Discrete Output Module, 24VDC Positive Logic Modicon X80 PLC

Schneider BMXDDO3202K is a high-density 32-channel discrete output module designed for Modicon X80 and M340 PLC systems. This 24VDC positive logic transistor output unit delivers 0.1A per-channel rated current, built-in circuit protection and 1.2ms fast response, providing stable drive control for industrial actuators and automation field devices.

Schneider BMXDDO3202K 32-Channel High-Density Discrete Output Module, 24VDC Positive Logic Industrial PLC Hardware

1. Transistor Output Performance And Electrical Parameters of Schneider BMXDDO3202K

Industrial-Grade 24VDC Sourcing Output Specifications

Schneider BMXDDO3202K features industrial-standard positive logic sourcing output design, tailored for 24VDC low-voltage industrial actuator control. The module supports a stable 12V to 24VDC working voltage range, adapting to variable power supply conditions in factory control cabinets. Each channel offers 0.1A continuous rated output current, with a maximum module total current of 3.2A to support full-load multi-channel synchronous operation. A maximum 1.5V voltage drop at output ON state ensures sufficient driving capacity for solenoid valves, indicator lights and miniature relay loads.

Fast Response And Built-In Fault Diagnosis Mechanism

Schneider BMXDDO3202K achieves a 1.2ms ultra-fast output response time, meeting high-speed logic control demands of automated production lines. Integrated pre-actuator fault detection monitors undervoltage conditions, triggering fault prompts when supply voltage drops below predefined thresholds. Zero 0.1mA leakage current at OFF state eliminates residual signal interference, guaranteeing precise on-off control accuracy for field electrical equipment.

2. Circuit Protection And Environmental Adaptability of Schneider BMXDDO3202K

Multi-Layer Overcurrent And Surge Protection

Schneider BMXDDO3202K adopts independent single-channel protection circuits to prevent component damage caused by local load short circuits. The module features 2500V high-voltage isolation between field output terminals and PLC internal bus, isolating external surge interference and improving system operational safety. Internal current limiting design avoids overload burnout, ensuring long-term stable operation under frequent switching working conditions.

Harsh Environment Resistant Industrial Construction

Schneider BMXDDO3202K applies professional conformal coating treatment on circuit boards, resisting dust, moisture and mild corrosive gas in industrial environments. The IP20 protection grade meets standard cabinet installation requirements, with a working temperature range of 0°C to 60°C and storage temperature range of -40°C to 85°C. Stable performance persists under 5% to 95% non-condensing humidity, suitable for long-term continuous operation in workshop and outdoor industrial control cabinets.

3. System Matching And Industrial Control Application Value of Schneider BMXDDO3202K

Native Modicon X80 And M340 Platform Compatibility

Schneider BMXDDO3202K seamlessly matches Modicon X80 backplane and M340 PLC main units, supporting one-click configuration via Schneider standard programming software. The module supports hot plugging for system expansion and renovation, allowing I/O capacity upgrade without system shutdown. Standard bus communication ensures real-time data interaction, perfectly adapting to fixed-cycle industrial automatic control logic.

High-Density Output Expansion For Automated Production Systems

This high-density discrete output hardware optimizes cabinet space for large-scale automation projects with massive logic control points. Mechanical processing lines utilize the module to control tool solenoid valves and status indicator arrays. Packaging and logistics equipment rely on multi-channel synchronous output to drive sorting actuators and conveyor switching components. Water treatment industrial systems deploy the unit to control pump startup and shutdown linkage logic, improving overall automation operational stability.
