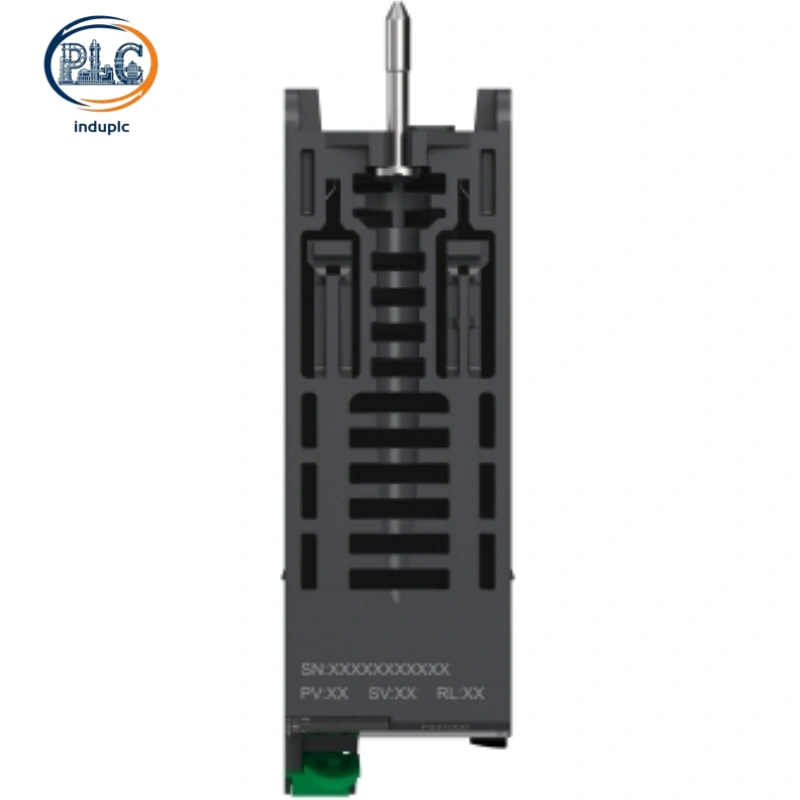

Schneider BMXP341000 Modicon M340 CPU Module, 2MB RAM Modbus Serial & USB Processor

Schneider BMXP341000 is a compact all-in-one CPU processor built for Modicon M340 mid-range PLC systems, delivering powerful logic processing and flexible field communication for industrial automation. This integrated processor unit features 2MB built-in RAM, native Modbus serial connectivity and high-speed USB ports, supporting scalable I/O expansion and stable loop control for machine and process applications.

Schneider BMXP341000 Modicon M340 All-In-One PLC Processor With Modbus Serial Communication

1. Core Processing Capacity And Onboard Memory Performance of Schneider BMXP341000

Industrial-Grade 32-Bit Processing Architecture

Schneider BMXP341000 adopts advanced 32-bit processor architecture optimized for real-time industrial control computation. The hardware executes standard IEC 61131-3 programming logic with fast cycle response, meeting precise timing requirements for automated machinery and process regulation. The processor maintains stable operation under continuous full-load program execution, eliminating logic delay or program crash issues during long-term factory runtime.

2MB Native RAM And Expandable Storage Design

Schneider BMXP341000 integrates 2048kB internal RAM to store user programs, system configuration and operational data. Reserved memory card slots support external storage expansion via dedicated Schneider memory accessories, enabling offline data logging and program backup. Partitioned memory management separates program storage and data caching, improving operational efficiency and preventing data loss during power cycling.

2. Onboard Communication Interfaces And I/O Scalability of Schneider BMXP341000

Dual USB And Modbus Serial Connectivity

Schneider BMXP341000 equips high-speed USB ports for local program uploading, downloading and on-site debugging. A built-in non-isolated RJ45 serial interface supports RS232C full-duplex communication and standard Modbus protocol interaction. The dual communication design simplifies on-site wiring and allows flexible connection with HMI panels, field sensors and upper monitoring systems without additional adapter modules.

Large-Scale Distributed I/O Expansion Support

Schneider BMXP341000 delivers outstanding I/O expansion capability for diverse project scales. Single rack layout supports up to 66 analog and discrete I/O points, while multi-rack distributed configuration expands capacity to 512 discrete inputs/outputs and 128 analog channels. The processor supports 20 dedicated application channels and programmable control loops, adapting to complex multi-point linkage control scenarios.

3. Structural Reliability And Practical Industrial Deployment of Schneider BMXP341000

Plug-And-Work Industrial Rack Structure

Schneider BMXP341000 features standardized Modicon M340 rack-mounted structure for direct backplane installation. Plug-and-work design shortens system startup and debugging cycles, reducing on-site construction costs. Front-panel LED indicators display processor status, memory operation and communication linkage conditions, allowing intuitive equipment inspection and rapid fault location.

Wide Adaptability For Process And Machinery Automation

This M340 CPU processor suits mid-sized industrial automation projects across multiple sectors. Mechanical manufacturing lines utilize the unit for equipment logic control and multi-axis linkage scheduling. Water treatment systems rely on reliable loop control to stabilize pump and valve regulation. General factory automation projects deploy the processor to realize centralized signal acquisition and equipment coordinated operation.
