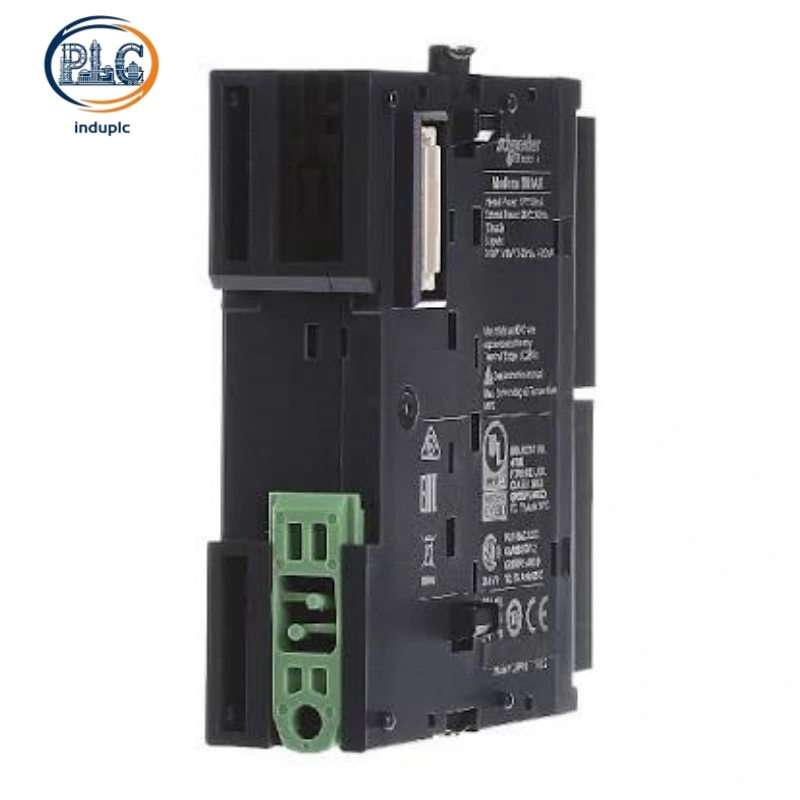

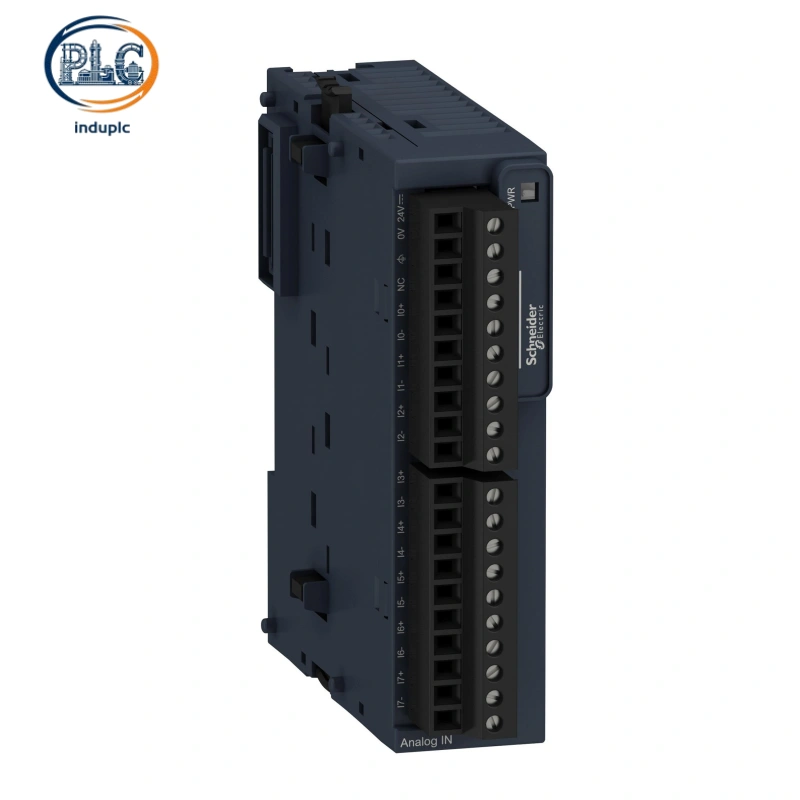

Schneider TM3AI8 Modicon TM3 Analog Input Module, 8-Channel 24VDC Voltage & Current Expansion Unit

Schneider TM3AI8 is a compact 8-channel analog input expansion module designed for Modicon TM3 series PLC systems, delivering multi-range voltage and current signal acquisition for OEM machinery and light process automation. This high-precision expansion hardware supports universal industrial analog signal ranges and fast channel sampling, providing reliable field data collection for Modicon M221, M241, M251 and M262 controller platforms.

Schneider TM3AI8 Universal 8-Channel Analog Input Expansion Module For Modicon TM3 PLC Controllers

1. Multi-Range Signal Acquisition And Precision Sampling Performance of Schneider TM3AI8

Universal Voltage And Current Input Compatibility

Schneider TM3AI8 supports full-spectrum mainstream industrial analog signal types, covering bipolar -10V to +10V voltage signals, unipolar 0-10V voltage inputs, and standard 0-20mA / 4-20mA current loop signals. Flexible signal configuration adapts to pressure transmitters, flow sensors, temperature transmitters and displacement detection devices without additional signal converters. Each channel features independent parameter configuration, allowing mixed voltage and current signal operation on the same Schneider TM3AI8 unit for diversified field sensing demands.

High-Accuracy Sampling And Stable Conversion Performance

Schneider TM3AI8 adopts 12-bit high-resolution signal conversion with ultra-stable industrial sampling algorithms. The module delivers ±1% full-scale absolute accuracy at room temperature and ±0.2% repeat accuracy, minimizing data deviation during long-term operation. A fixed 1ms base conversion time plus per-channel scanning delay ensures rapid signal refresh, meeting real-time monitoring requirements for dynamic industrial process variables. Low crosstalk performance below 1 LSB eliminates mutual interference between adjacent input channels.

2. Compact Mechanical Structure And Standard Industrial Certification of Schneider TM3AI8

Ultra-Thin Panel Mount Layout

Schneider TM3AI8 features a slim lightweight structure with dimensions of 23.6mm × 70mm × 90mm and a net weight of only 0.11kg. The specialized panel mount design fits compact electrical cabinets and small-scale automation equipment, saving valuable installation space for integrated machinery systems. Standard screw terminal wiring guarantees stable physical connection and convenient on-site maintenance, adapting to frequent equipment debugging scenarios.

Industrial Grade Environmental Adaptability

Schneider TM3AI8 complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 international industrial standards and carries CE certification for global industrial deployment. The module operates stably within 0°C to 60°C working temperature and -40°C to 70°C storage temperature range. IP20 protection grade and tolerance for 5% to 95% non-condensing humidity enable continuous operation in dusty, humid workshop environments without performance attenuation.

3. PLC Compatibility And Practical Industrial Deployment of Schneider TM3AI8

Full Modicon M2xx Controller Series Adaptation

Schneider TM3AI8 achieves native plug-and-play compatibility with Modicon M221, M241, M251 and M262 logic controllers. The module supports seamless system expansion without firmware modification or adapter installation, simplifying system upgrade and renovation projects. Unified EcoStruxure Machine Expert software configuration unifies parameter setting, program debugging and signal monitoring, improving overall engineering efficiency.

OEM Machinery And Process Monitoring Applications

This multi-channel analog expansion module serves core signal collection tasks in light industrial automation scenarios. Packaging machinery deploys the unit to monitor tension and speed analog signals for closed-loop motion control. Water treatment equipment utilizes current loop inputs to track liquid pressure and flow parameters. General manufacturing production lines rely on voltage signal acquisition to realize real-time equipment status supervision and automatic parameter adjustment.
