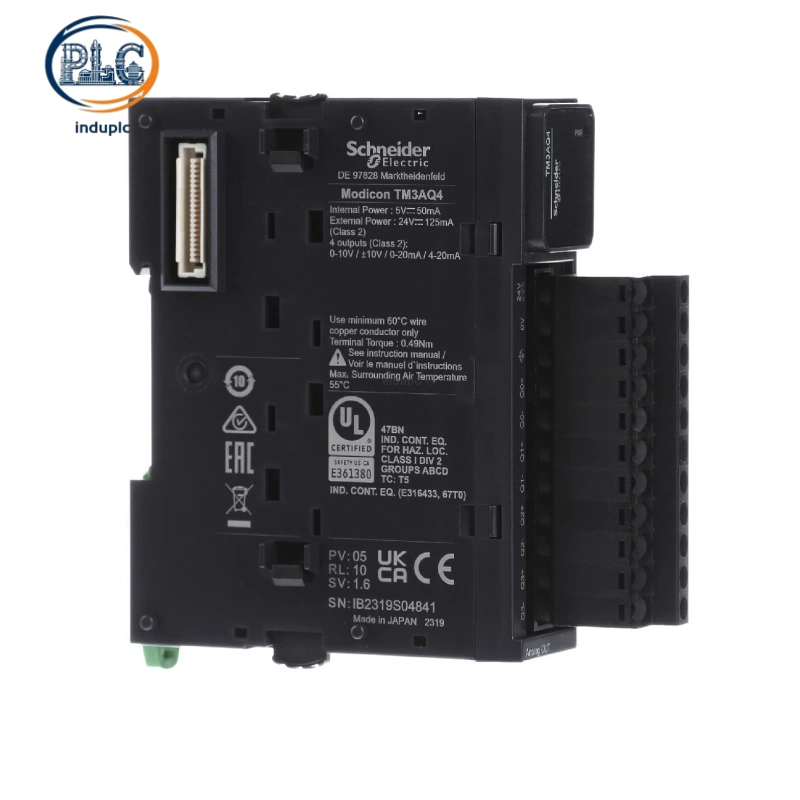

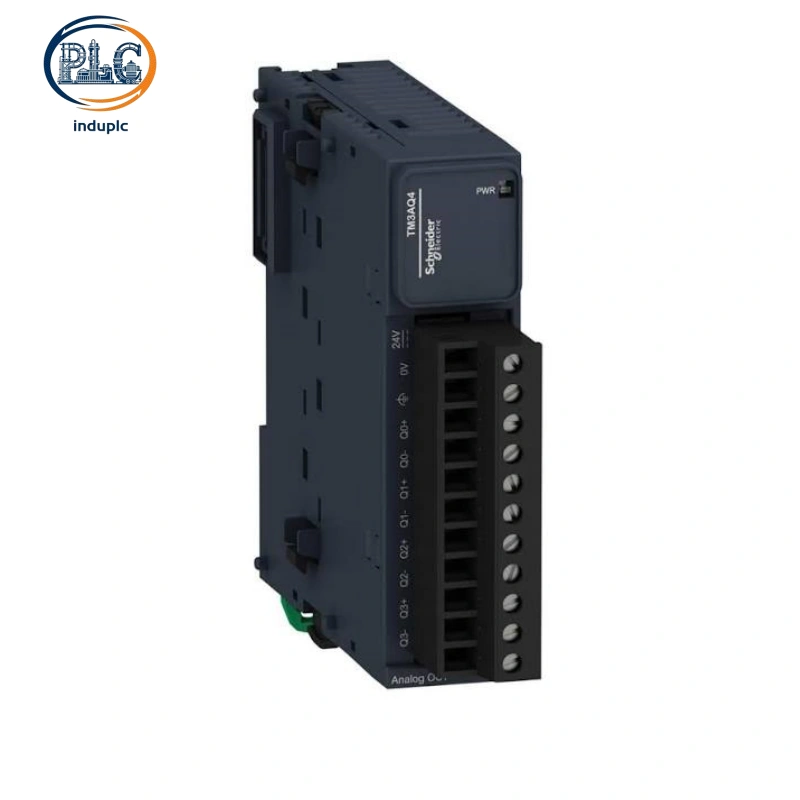

Schneider TM3AQ4 Modicon TM3 Analog Output Module, 4-Channel 12-Bit Voltage & Current Expansion Unit

Schneider TM3AQ4 is a compact 4-channel analog output expansion module engineered for Modicon TM3 series PLC controllers, tailored for precision field actuator regulation in OEM machinery and light process automation. This 12-bit high-resolution output unit supports multi-range voltage and current signal output, delivering stable and configurable analog drive signals for Modicon M221, M241, M251 and M262 control systems.

Schneider TM3AQ4 4-Channel 12-Bit Universal Analog Output Expansion Module For Modicon TM3 PLC Systems

1. Multi-Range Output Capability And Precision Conversion Performance of Schneider TM3AQ4

Dual Voltage And Current Universal Output Ranges

Schneider TM3AQ4 integrates versatile industrial analog output specifications to match diverse field actuator requirements. The module supports standard 0-20mA and 4-20mA current loop outputs, alongside multi-level voltage ranges including 0-5V, 0-10V, ±5V and ±10V. Independent channel configuration allows mixed signal output modes on one Schneider TM3AQ4 unit, adapting to valve positioners, variable frequency drives and proportional actuators without external signal conversion accessories.

12-Bit High-Precision Conversion And Stable Output Characteristics

Schneider TM3AQ4 adopts 12-bit high-resolution digital-to-analog conversion technology to ensure fine-tuned output adjustment. The module maintains ±0.2% full-scale absolute accuracy at 25°C and ±0.4% repeat accuracy, minimizing output deviation during long-term continuous operation. A fixed 1ms base conversion cycle plus per-channel scanning delay enables rapid signal response, while crosstalk performance lower than 1 LSB eliminates signal interference between adjacent output channels for consistent regulation accuracy.

2. Compact Hardware Structure And Industrial Environmental Durability of Schneider TM3AQ4

Space-Saving Modular Panel Mount Design

Schneider TM3AQ4 features a slim integrated structure optimized for compact cabinet installation and embedded mechanical equipment layout. Standard screw terminal wiring structure ensures firm field connection and convenient routine maintenance, simplifying on-site wiring arrangement and fault inspection. The lightweight modular design matches unified TM3 expansion architecture, achieving seamless assembly with Modicon M2xx series controllers without additional mounting adapters.

Standard Industrial Environmental Adaptability

Schneider TM3AQ4 complies with EN/IEC 61131-2 and EN/IEC 61010 industrial safety standards with CE certification for global industrial deployment. The module supports stable operation within 0°C to 60°C working temperature and -40°C to 70°C storage temperature, adapting to temperature fluctuations in factory cabinet environments. IP20 protection grade and 5% to 95% non-condensing humidity tolerance resist daily dust and moisture interference, securing long-term unattended operational stability.

3. System Compatibility And Practical Automation Application of Schneider TM3AQ4

Native Modicon M2xx Series Controller Compatibility

Schneider TM3AQ4 realizes plug-and-play expansion for full Modicon M221, M241, M251 and M262 controller series. Unified EcoStruxure Machine Expert software supports one-stop parameter configuration, output range calibration and real-time signal monitoring, reducing engineering debugging cycles. The module matches standard TM3 bus communication protocol, ensuring synchronous data interaction and stable output response with host PLC units.

Precision Process Regulation And Machinery Control Scenarios

This multi-channel analog output module undertakes core precision regulation tasks in light industrial automation systems. Packaging machinery utilizes variable voltage output to adjust motor operating speed and tension control. Water treatment equipment adopts 4-20mA current output to regulate proportional valves and liquid dosing actuators. General automated production lines rely on stable analog signals to realize closed-loop adjustment of temperature, pressure and flow process parameters.
