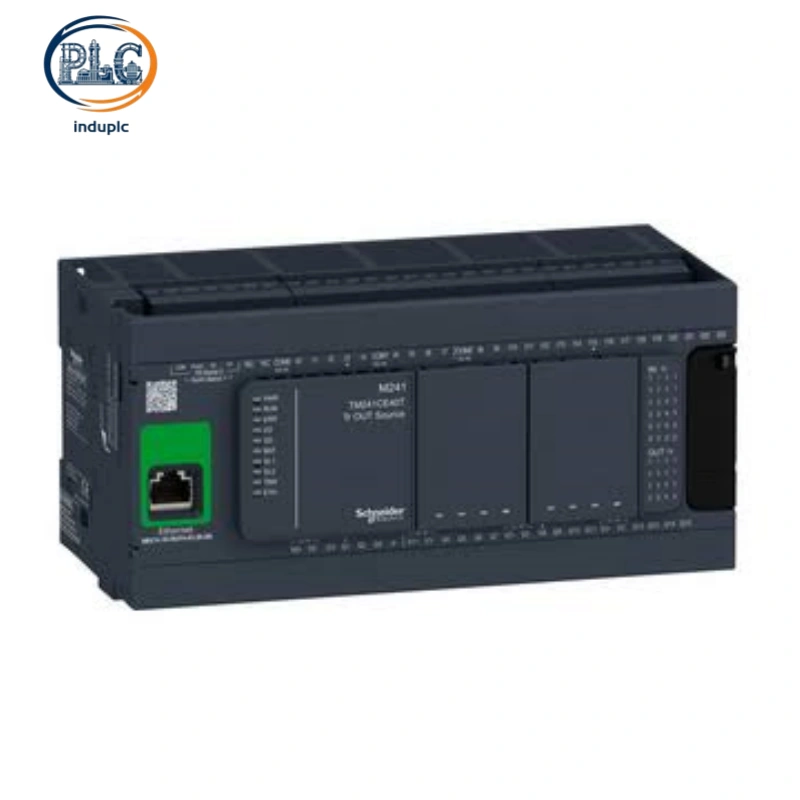

Schneider TM241CE40T Modicon M241 PLC Controller, 40-I/O PNP Transistor Ethernet Industrial Control Unit

Schneider TM241CE40T is a high-density 40-point integrated transistor PLC controller under the Modicon M241 series, designed for mid-sized automated machinery and distributed industrial control systems. This PNP transistor output PLC features full onboard I/O configuration, high-speed positioning functions and multi-port embedded communication, delivering stable high-cycle logic operation and precise motion control for standardized industrial automation equipment.

Schneider TM241CE40T 40-I/O High-Density PNP Transistor Modicon M241 Ethernet PLC Controller

1. Full Onboard I/O Configuration And High-Speed Performance of Schneider TM241CE40T

40-Point High-Density Discrete I/O Layout

Schneider TM241CE40T integrates 24 discrete inputs and 16 PNP transistor outputs, forming a complete 40-point onboard control system to support medium-scale machine automation without initial expansion modules. The input section includes 8 high-speed fast inputs and 16 standard universal inputs, supporting high-frequency signal capture and pulse signal acquisition. All discrete inputs support universal sink and source logic, adapting to diverse field sensor wiring modes and eliminating wiring limitation constraints.

High-Speed PTO Positioning And Fast Instruction Execution

Schneider TM241CE40T embeds 4-channel 100kHz high-speed PTO positioning functions, meeting multi-axis synchronous motion control demands for cutting, positioning and conveying machinery. The controller achieves ultra-fast execution efficiency with 0.3ms processing time for 1K basic instructions and 0.7ms response for periodic and event tasks. Optimized task scheduling supports 4 cyclic master tasks and 8 external event tasks, ensuring stable operation of complex logic and motion control programs without response delay.

2. Industrial Power Specification And Multi-Communication Compatibility of Schneider TM241CE40T

Stable Industrial Power Adaptability

Schneider TM241CE40T operates stably within 20.4VDC to 28.8VDC industrial voltage range, tolerating conventional power fluctuations in factory control cabinets. The controller supports instantaneous 50A peak current impact and features 32.6W to 40.4W adjustable power consumption according to I/O expansion scale, achieving balanced operation of power efficiency and load capacity. Built-in overvoltage and overcurrent protection circuits prevent hardware damage caused by unstable power supply and load faults.

Multi-Port Embedded Communication Architecture

Schneider TM241CE40T equips a complete set of industrial communication interfaces for multi-device networking and remote maintenance. A standard RJ45 Ethernet port supports Modbus TCP protocol, web server access and remote program debugging. Reserved RS232 and RS485 serial ports realize data interaction with field instruments and auxiliary automation equipment. The built-in mini-B USB port facilitates local program uploading, downloading and real-time parameter monitoring, covering full-scenario debugging and maintenance demands.

3. System Scalability And Industrial Application Value of Schneider TM241CE40T

Flexible Local And Remote I/O Expansion Capacity

Schneider TM241CE40T supports flexible hierarchical I/O expansion to adapt to different project scales. The controller connects up to 7 local expansion modules and 14 remote I/O modules, freely expanding control points for large-scale automation systems. Native compatibility with Modicon TM3 series expansion modules enables fast function upgrading, supporting analog signal acquisition, high-speed counting and customized control function expansion.

Mid-Size Machinery Automation Scenario Deployment

This high-density transistor PLC targets medium-sized standalone machinery and automated production lines. Processing machinery deploys the unit for multi-axis positioning control and continuous cycle logic operation. Automated packaging and sorting equipment relies on high-speed I/O and PTO functions to realize precise equipment linkage. General factory automation systems utilize Ethernet networking capability to complete centralized equipment monitoring and distributed control management.
