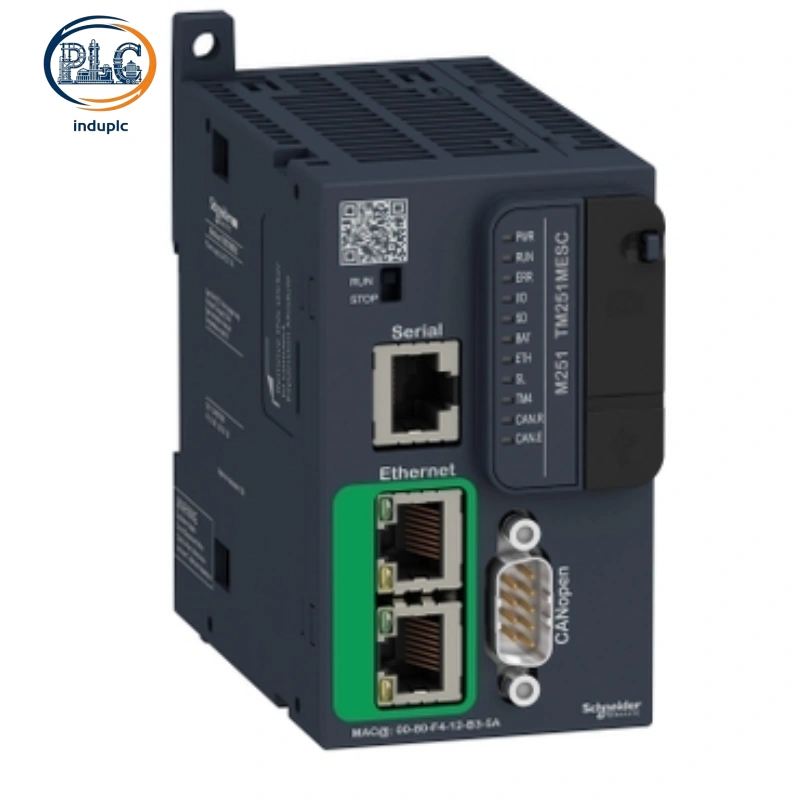

Schneider TM251MESC Modicon M251 PLC Controller, Ethernet & CANopen Integrated Industrial Control Unit

Schneider TM251MESC is a high-performance embedded logic controller within the Modicon M251 micro-PLC series, engineered for flexible machinery automation and distributed motion control systems. This compact industrial PLC integrates native Ethernet and CANopen fieldbus interfaces, delivering reliable multi-task operation and scalable I/O expansion for small to mid-sized automated equipment and decentralized process control nodes.

Schneider TM251MESC Modicon M251 Ethernet CANopen PLC Controller For Flexible Machinery Automation

1. Core Processing Performance And Task Scheduling of Schneider TM251MESC

High-Speed Instruction Execution Architecture

Schneider TM251MESC adopts optimized industrial processing architecture with ultra-efficient instruction execution capability. The controller completes 1K basic instructions within 0.3ms and handles periodic and event tasks in 0.7ms, supporting fast program cycling for dynamic machine operations. Each single instruction consumes only 0.022µs execution time, maintaining stable response under continuous full-load program operation and complex logic scheduling.

Multi-Task Management System

Schneider TM251MESC supports professional layered task scheduling to adapt to diversified control demands. The system carries 3 cyclic master tasks plus 1 freewheeling background task, paired with 8 independent external event tasks for emergency logic and interrupt response. Built-in real-time clock provides accurate time stamping for data logging and timed sequence control, improving operational precision for standardized machine cycles.

2. Dual-Bus Communication And Onboard Hardware Features of Schneider TM251MESC

Ethernet And CANopen Dual Fieldbus Design

Schneider TM251MESC features exclusive dual-bus communication configuration combining standard Ethernet and CANopen fieldbus ports. The Ethernet interface supports Modbus TCP protocol, remote program upload and download, and web server monitoring for centralized equipment management. The integrated CANopen bus enables stable multi-axis motion linkage and distributed device synchronization, perfectly fitting automated machinery requiring high-reliability fieldbus networking.

Standard Industrial Power And I/O Expansion Capacity

Schneider TM251MESC operates steadily within 20.4VDC to 28.8VDC industrial voltage range, adapting to common cabinet power fluctuations in workshop environments. The controller supports flexible system expansion with up to 7 local I/O modules and 14 remote expansion modules, freely upgrading analog acquisition, high-speed counting and discrete control functions. Native compatibility with Modicon TM3 series modules ensures seamless hardware matching and simplified system renovation.

3. Structural Reliability And Target Industrial Deployment of Schneider TM251MESC

Compact Industrial-Grade Mechanical Structure

Schneider TM251MESC adopts panel-mounted compact structure with standard IP20 protection grade, resisting dust and non-condensing humidity in enclosed control cabinets. Precise industrial sizing saves installation space for embedded machinery and compact automation systems. Front-panel status indicators display power operation, bus communication and task running status, enabling intuitive on-site inspection and rapid fault diagnosis.

Fieldbus-Based Machinery Automation Applications

This CANopen-enabled M251 controller specializes in fieldbus-linked automated equipment. Material handling and conveying machinery deploy the unit for multi-device synchronous linkage and logic interlock control. Small-scale process automation systems utilize Ethernet networking for remote monitoring and data transmission. Custom OEM machinery relies on dual-bus advantages to realize flexible equipment expansion and stable long-term unattended operation.
