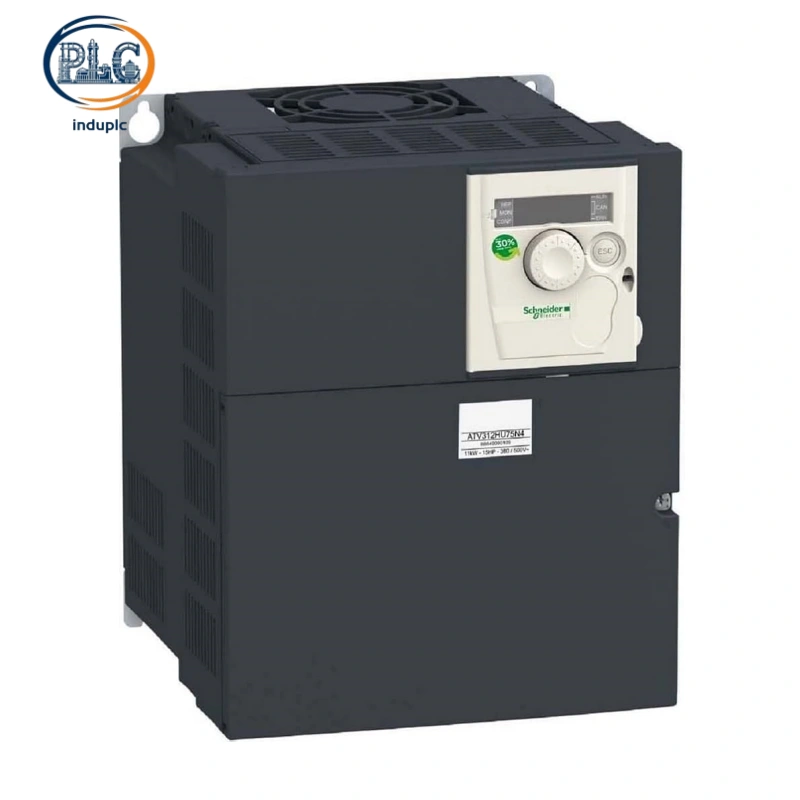

Schneider ATV312HU75N4 Altivar 312 Variable Frequency Drive, 7.5kW 3-Phase 380-500V Industrial Motor Inverter

Schneider ATV312HU75N4 Altivar 312 7.5kW 3-Phase 380-500V VFD For Heavy-Duty Three-Phase Asynchronous Motor Variable Speed Regulation

Schneider ATV312HU75N4 high-power three-phase variable frequency drive features 7.5kW rated output power, robust overload tolerance and optimized EMC performance, delivering stable variable-speed control for heavy-duty fans, industrial pump systems and mid-sized processing machinery.

Schneider ATV312HU75N4 Altivar 312 7.5kW Three-Phase VFD For Heavy-Duty Industrial Motor Control

1. Precision Variable-Speed Control & Power Output Performance of Schneider ATV312HU75N4

7.5kW High-Power Industrial Electrical Specifications

Schneider ATV312HU75N4 outputs 7.5kW rated power with 16kVA apparent capacity and 9.7A rated output current, perfectly matching heavy-load three-phase asynchronous motors. The drive supports universal 380V to 500V three-phase industrial power input and adapts to 50Hz and 60Hz grid frequency standards. Stable power output maintains consistent motor rotation speed during continuous variable-load operation.

Full-Speed Vector Torque Stabilization & Overload Resistance

Schneider ATV312HU75N4 adopts advanced sensorless flux vector control technology to deliver steady constant torque across the entire frequency range. The unit sustains 150% overload current for 60 seconds, fully accommodating heavy mechanical startup impact and sudden load fluctuations. Adjustable 2kHz to 16kHz switching frequency lowers motor operating noise and mechanical vibration for smoother equipment operation.

2. Intelligent On-Site Configuration & Programmable I/O Functions of Schneider ATV312HU75N4

Versatile Multi-Function I/O Terminal Layout

Schneider ATV312HU75N4 is equipped with abundant customizable digital inputs, relay outputs and analog signal terminals for flexible on-site logic setup. All terminals support multi-speed preset operation, adjustable acceleration and deceleration curves and equipment interlock protection logic. Flexible terminal programming adapts to complex automation control workflows for heavy industrial machinery.

User-Friendly Local Commissioning Design

Schneider ATV312HU75N4 features a detachable local operation keypad for intuitive on-site parameter modification, real-time data viewing and fault reset. Dedicated quick-set parameter groups simplify repetitive configuration work during equipment commissioning. The intuitive operation structure reduces technical barriers for daily maintenance and routine parameter optimization.

3. Industrial Networking & All-Round Operational Safety of Schneider ATV312HU75N4

Stable Modbus RTU Fieldbus Communication

Schneider ATV312HU75N4 integrates native Modbus RTU protocol to achieve seamless data interaction with Modicon PLCs and industrial HMI systems. The communication interface supports remote speed adjustment, real-time operating data collection and online fault diagnosis. Standard protocol compatibility eliminates external communication adapters and simplifies industrial network construction.

EMC Anti-Interference & Multi-Layer Electrical Protection

Schneider ATV312HU75N4 builds in high-performance EMC filter to suppress high-frequency switching electromagnetic noise, protecting nearby precision sensors and low-voltage control circuits. Comprehensive protection functions include overcurrent, overvoltage, undervoltage, overheating and motor overload protection. Real-time circuit monitoring triggers automatic power cutoff to prevent drive and motor hardware damage under abnormal working conditions.
