Schneider LC1D32 TeSys‑D 3‑Pole Motor Contactor, 32A AC‑3 Rated Industrial DIN‑Rail Contactor

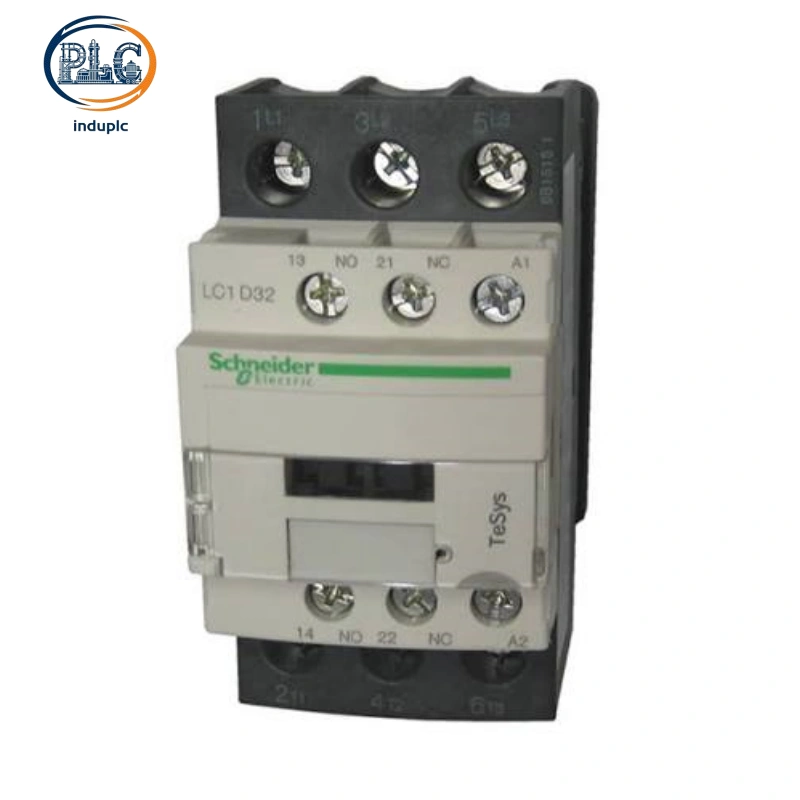

The Schneider LC1D32 is a robust three-pole power contactor belonging to Schneider’s reliable TeSys-D series, designed for low-voltage motor control and heavy industrial load switching scenarios. Equipped with one normally open and one mirror-type normally closed auxiliary contact, this compact device acts as a core control component for standardized cabinet automation and power distribution systems, widely adopted in mechanical and electrical industrial projects.

Tailored for stable operation with three-phase asynchronous motors and high-resistance industrial loads, the Schneider LC1D32 features a 32A AC-3 rated operational current, perfectly matching medium-heavy load motor control demands. Built with durable screw-clamp terminals and high-grade flame-retardant casing, this contactor delivers outstanding environmental adaptability and long-cycle operational stability. It is commonly deployed to control high-power ventilation fans, industrial water circulation systems, medium-sized conveyor lines, air compressors and various automated processing machinery.

Schneider LC1D32 TeSys‑D 32A Three‑Pole Industrial Motor‑Switching Contactor

1. Mechanical Structure, Installation and Environmental Adaptability

Compact Footprint and Flexible Mounting Options

Boasting a space-saving compact structure, the Schneider LC1D32 features overall dimensions of 45mm width, 85mm height and 92mm depth, with a net weight of only 0.438kg. It supports dual installation methods, including standard DIN rail mounting and direct screw panel fixing, enabling flexible and tidy layout in limited cabinet spaces. This practical design fits OEM equipment assembly and standardized control cabinet configuration perfectly. The front IP20 protection rating effectively prevents accidental contact with live internal terminals and blocks external dust accumulation, ensuring safe and stable daily operation in industrial workshops.

Shock and Vibration Resistance with Broad Temperature Tolerance

The LC1D32 adopts premium UL94-V1 flame-retardant plastic housing that can withstand 850°C high-temperature combustion, providing excellent resistance against mechanical vibration, instantaneous impact shock and long-term thermal aging. Its control coil maintains stable full-power operation within the temperature range of -40°C to 60°C without derating, and supports conditional operation up to 70°C with reasonable load adjustment. Adaptable to complex factory environments, it works steadily in 5% to 95% non-condensing humidity and supports installation altitudes up to 3000 meters, fully meeting diverse industrial site application requirements.

2. Electrical Parameters and Switching Performance

Main Circuit Rated Specifications

Configured with three normally open main power poles, the Schneider LC1D32 achieves a 32A AC-3 working current at 440V, with a maximum thermal current of 50A under 60°C ambient temperature. It features a 690V rated insulation voltage and 6kV impulse withstand voltage, strictly complying with IEC industrial safety standards. In actual industrial use, this contactor can steadily drive 15kW three-phase motors at 380/440V and support 18.5kW motor operation at 500–690V. With excellent surge current resistance, it effectively copes with instantaneous motor startup inrush current and frequent heavy load impacts, ensuring consistent operational stability.

Auxiliary Contact Configuration and Service Life

Integrated with one NO and one mechanically linked NC mirror auxiliary contact, the LC1D32 supports real-time equipment status feedback, electrical interlock setup and safety loop control for automated systems. It delivers 15 million cycles of mechanical service life and 2.1 million cycles of electrical switching life under standard AC-3 load conditions, guaranteeing ultra-long service cycles for continuous industrial operation. Designed with universal screw-clamp terminals, it is compatible with both solid and flexible copper wires. The recommended tightening torque is 1.7N·m for control circuits and 2.5N·m for main power circuits to ensure firm and reliable wiring connection.

3. Certification Standards and Industrial Application Scenarios

Global Certifications and Anti-Interference Design

Fully compliant with IEC 60947-4-1, UL 60947-4-1 and CSA C22.2 NO 14 international industrial standards, the LC1D32 holds multiple authoritative certifications including CCC, UKCA, EAC, UL and marine certification. Equipped with a built-in bidirectional surge suppression structure, it eliminates electromagnetic interference generated during coil de-energization, effectively protecting surrounding low-voltage control modules. A complete range of AC coil voltage options covers almost all mainstream control voltage specifications for global industrial automation equipment.

Industrial Application Scope

Widely applied in industrial automation and power control systems, the LC1D32 undertakes reliable start-stop control for large industrial ventilation equipment, high-flow water pump units, medium-sized conveyor production lines, automated packaging machines and heavy-duty air compressors. When matched with thermal overload relays, it forms a complete motor control and protection assembly for PLC-based control cabinets. Supporting a maximum switching frequency of 3600 cycles per hour, it adapts to frequent startup and shutdown working modes and supports long-term unattended stable operation of production equipment.

Schneider LC1D32 Optional Voltage Suffix Models: LC1D32B7C, LC1D32CC7C, LC1D32D7C, LC1D32E7C, LC1D32F7C, LC1D32M7C, LC1D32P7C, LC1D32Q7C, LC1D32U7C

LC1D32 Full Suffix Voltage Parameter List

All 7C-series suffix models support 50/60Hz dual-frequency operation, compatible with global industrial power supply standards:

• LC1D32B7C: AC 24V control coil voltage, 50/60Hz

• LC1D32CC7C: AC 36V control coil voltage, 50/60Hz

• LC1D32D7C: AC 42V control coil voltage, 50/60Hz

• LC1D32E7C: AC 48V control coil voltage, 50/60Hz

• LC1D32F7C: AC 110V control coil voltage, 50/60Hz

• LC1D32M7C: AC 220V control coil voltage, 50/60Hz (most widely used industrial specification)

• LC1D32P7C: AC 230V control coil voltage, 50/60Hz

• LC1D32Q7C: AC 380V control coil voltage, 50/60Hz

• LC1D32U7C: AC 240V control coil voltage, 50/60Hz
