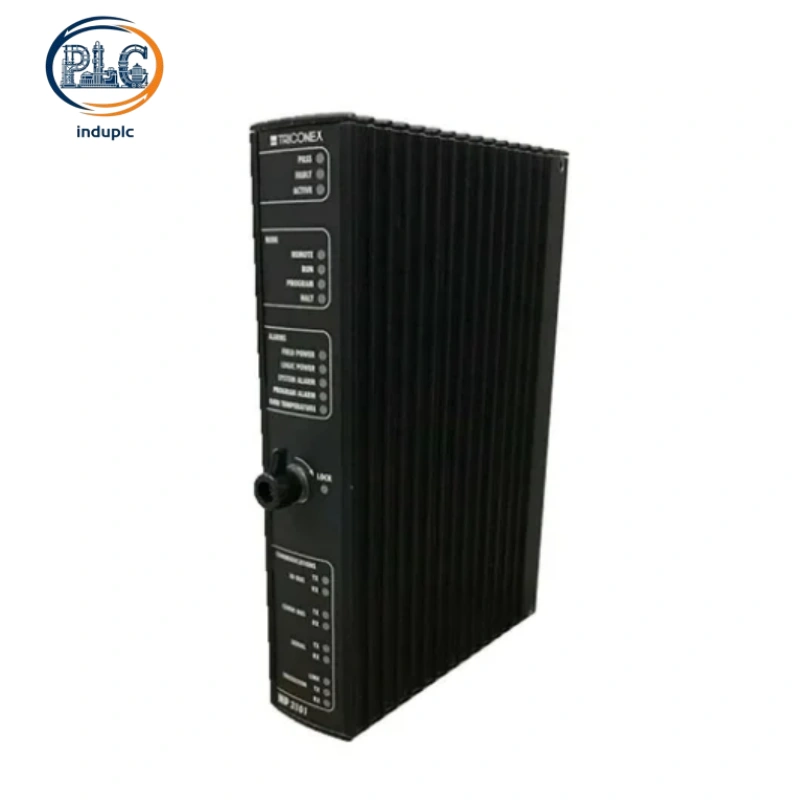

Triconex 3101 Trident TMR Processor Module, 50MHz 32‑Bit MPC860 24VDC Fault‑Tolerant Safety Processor

Triconex 3101 Trident TMR Processor Module for SIS Safety Instrumented Systems

Triconex 3101 is a dedicated triple modular redundant processor built for Trident series safety control chassis. The hardware delivers core logic execution, field signal processing and cross‑channel data voting for industrial safety loops. Triconex 3101 adopts industrial MPC860 chip architecture to sustain stable long‑term operation in harsh process environments. Triconex 3101 supports complete system diagnostics and redundant fault tolerance for critical plant safety infrastructure.

1. Core Hardware Architecture and Processing Performance

Industrial Grade Processor and Memory Configuration

Triconex 3101 integrates Motorola MPC860 32‑bit processor running at 50MHz, forming dual SX and IOX processing cores for separated logic and I/O management. Onboard 6MB Flash PROM stores control programs, SX firmware and IOX operational data with CRC protection for file integrity. Equipped with 16MB DRAM, the module supports real‑time program execution and sequence‑of‑events data caching for high‑precision safety logging.

Tribus Redundant Voting Mechanism

Built‑in three‑channel Tribus bus synchronization enables parallel data calculation and result comparison across independent processor paths. Hardware voting circuits filter abnormal output data triggered by single channel anomalies. The redundant mechanism eliminates single‑point failures and maintains continuous system operation without forced shutdown during partial hardware degradation.

2. Power Specification and Harsh Environment Adaptability

Precision DC Power Operating Parameters

The module operates on 24VDC power input with a tolerable deviation range of ‑15% to +20% plus 5% AC ripple margin, covering 19.2VDC to 30VDC effective working voltage. Maximum logic power consumption caps at 8W, while absolute peak input voltage limits at 33VDC to resist transient power surges. Strict voltage threshold design prevents burnout and performance drift under unstable on‑site power conditions.

Wide Temperature and Mechanical Tolerance

Qualified for industrial wide‑range operation from ‑40°C to +70°C, the module maintains full functional performance under extreme temperature fluctuations. Reinforced internal component packaging resists mechanical vibration and electromagnetic interference in factory cabinet environments. Stable output persists within 5% to 95% non‑condensing humidity to adapt offshore platforms and chemical plant workshops.

3. System Diagnostics and Safety Certification Compliance

Full‑Coverage Onboard Diagnostic Functions

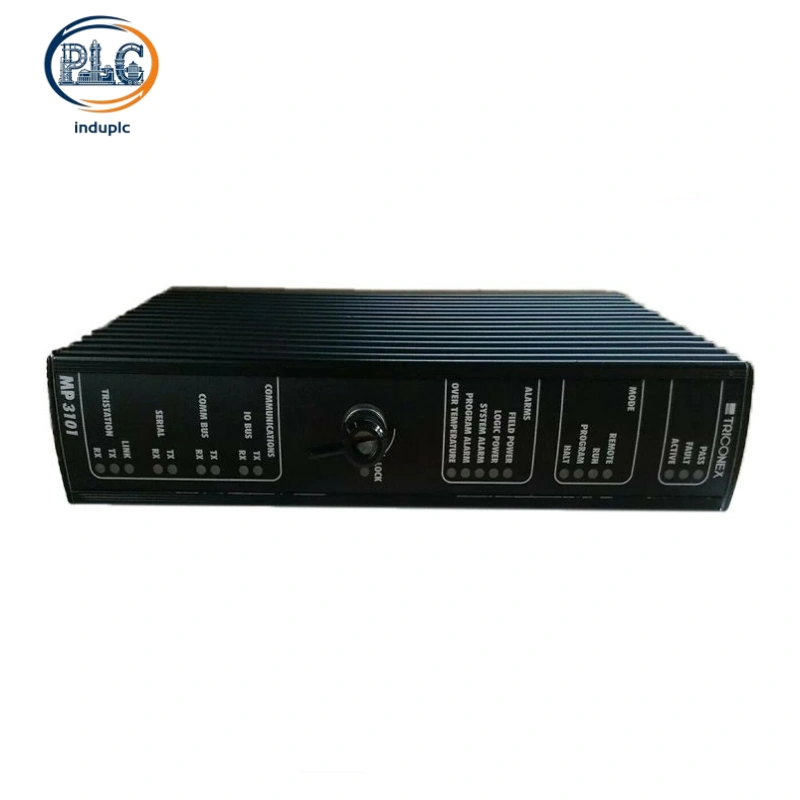

Continuous background self‑test routines monitor channel status, memory integrity and bus communication quality throughout operational cycles. Front panel LED indicators display runtime status, channel health and fault codes for on‑site inspection. High diagnostic coverage captures latent hardware faults early to avoid unplanned safety loop failures.

Industry Standard Safety Qualifications

The processor complies with IEC 61508 functional safety standards and meets rigorous SIL3 safety integrity level requirements for process industry deployment. Verified third‑party certifications support safety audit procedures and project acceptance for petrochemical, power and gas processing facilities. Standardized design aligns with global SIS system construction specifications.

4. Industrial Deployment and System Compatibility

Triconex 3101 matches all standard Trident chassis configurations for seamless plug‑and‑play installation and system upgrading. Hot‑swap compatible design allows single module replacement without interrupting overall safety system operation. The processor fits ESD systems, fire and gas monitoring systems and process interlock control loops for continuous industrial production sites.
