Triconex 3351 High Precision Analog Input Module, 16Bit 16-Channel 4-20mA TMR Fault-Tolerant SIS Acquisition Unit

Triconex 3351 16Bit High Precision Analog Input Module for Tricon SIS Safety Systems

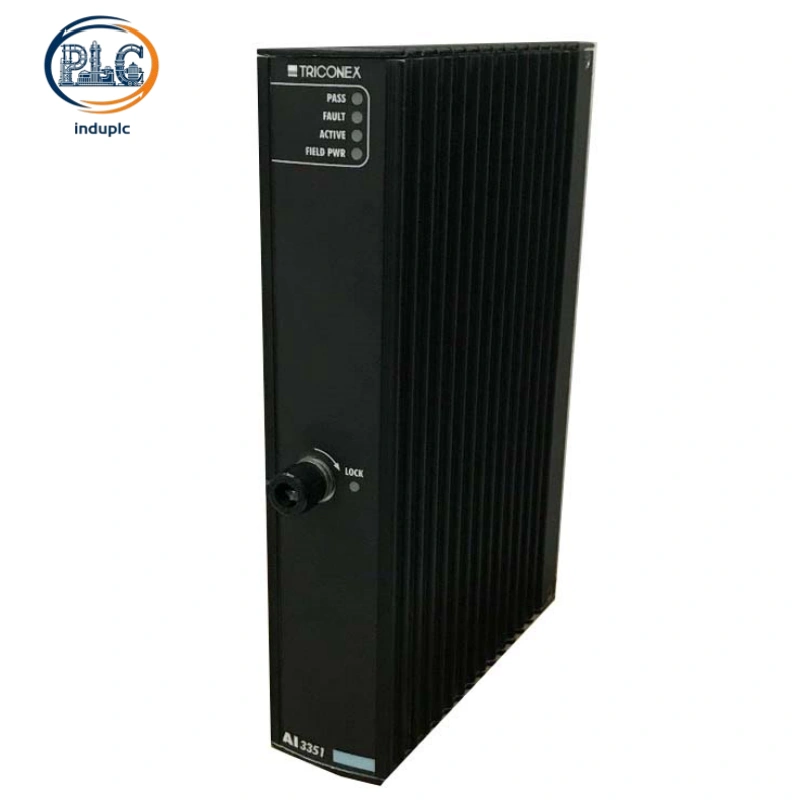

Triconex 3351 is a professional analog signal acquisition module optimized for Tricon fault-tolerant safety instrumented systems. The hardware captures standard 4-20mA field signals from industrial transmitters with ultra-high conversion precision. Triconex 3351 integrates mature TMR redundant design to eliminate single-point faults in analog monitoring loops. Triconex 3351 ensures stable and repeatable data sampling for safety-critical industrial process control.

1. Precision Acquisition Performance and Core Electrical Parameters

16-Bit High-Resolution Analog Conversion

Triconex 3351 adopts 16-bit analog-to-digital conversion chip to achieve industry-grade signal resolution for subtle process parameter changes. Full-scale conversion error stays below 0.15%, supporting precise monitoring of pressure, temperature, flow and liquid level variations. Standard 4-20mA current signal coverage matches universal industrial field transmitter specifications for seamless signal docking.

Ultra-Fast System Scan and Response Speed

The module completes full 16-channel signal scanning within one millisecond, realizing real-time data synchronization with Tricon main processors. Fixed response cycle below 20ms guarantees timely data update for fast-changing process conditions. Optimized sampling algorithm avoids data distortion and improves overall system response efficiency for safety interlock actions.

2. TMR Redundant Structure and Fault Tolerant Mechanism

Triple Modular Redundant Channel Design

Three independent signal acquisition channels run parallel sampling and data calculation for every field signal input. Tribus bus voting logic verifies valid data and filters abnormal values generated by single-channel hardware anomalies. The redundant framework maintains continuous signal acquisition without system halt during partial module component degradation.

Full-Range Onboard Fault Diagnostics

Built-in intelligent diagnosis circuits monitor open circuit, short circuit and signal over-range conditions for all channels. Real-time fault tagging pinpoints wiring defects or transmitter failures without manual circuit inspection. High diagnostic coverage effectively reduces latent risks in long-term safety loop operation and simplifies daily equipment maintenance.

3. Industrial Environmental Adaptability and Structural Reliability

Wide Temperature Operating Tolerance

The module supports stable full-load operation across -40°C to +70°C, adapting to extreme temperature fluctuations in outdoor and enclosed industrial cabinet environments. Qualified for G3 industrial environmental standards, the hardware resists performance attenuation under high humidity and dusty working conditions. Strict component screening ensures consistent precision in harsh petrochemical and power plant scenarios.

Anti-Interference and Mechanical Stability

Internal shielding structure suppresses electromagnetic interference and ground loop noise prevalent in industrial sites. Reinforced hardware layout withstands mechanical vibration and transient impact from production equipment. Sealed circuit design extends service life and maintains stable acquisition accuracy throughout long-cycle unattended operation.

4. System Compatibility and Safety Field Application

Triconex 3351 features standard Tricon backplane interface for plug-and-play installation and system upgrading. Hot-swap functionality supports online module replacement without interrupting running safety logic. Widely applied in ESD protection systems, fire and gas monitoring platforms and process interlock loops, Triconex 3351 provides reliable analog data support for industrial safety instrumented control.
