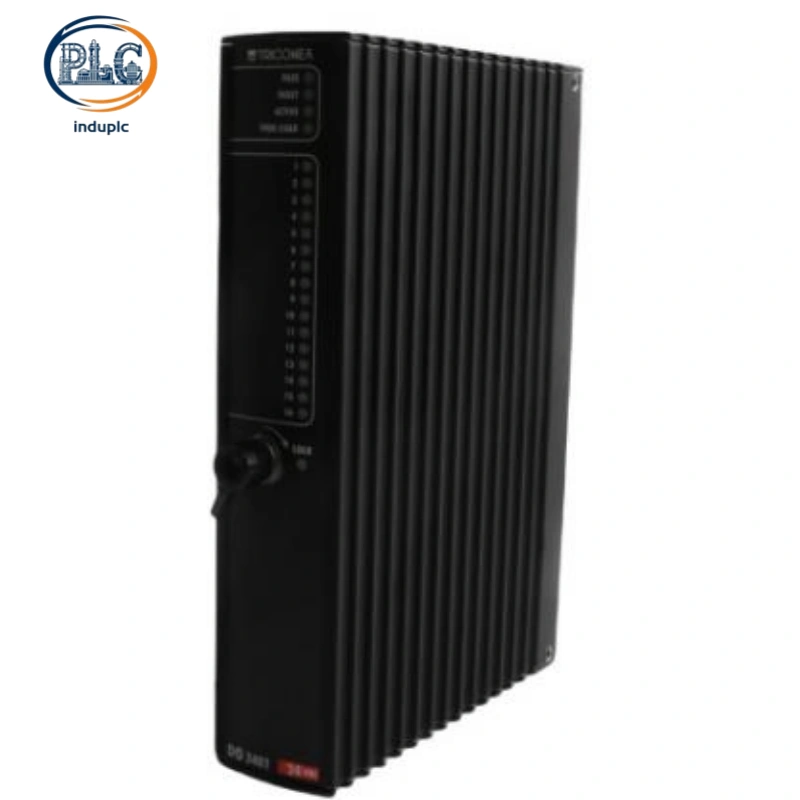

Triconex 3401 32-Channel Digital Output Module, 24VDC Self-Limiting TMR Fault-Tolerant SIS Control Unit

Triconex 3401 High-Density 32-Channel Digital Output Module for Tricon SIS Safety Control

Triconex 3401 is a core discrete output hardware tailored for Tricon triple modular redundant safety instrumented systems. The high-density module drives 24VDC field equipment to execute safety logic commands generated by system processors. Triconex 3401 adopts dedicated self-limiting current circuitry to protect field loops and on-site actuators. Triconex 3401 sustains precise and stable output performance for long-term safety-critical process operations.

1. Field Drive Performance and Electrical Loop Protection

24VDC Self-Limiting Output Characteristics

Triconex 3401 operates within a 15VDC to 30VDC field power range, accommodating common industrial power fluctuations for on-site cabinet environments. The module delivers 3A typical driving current with 4.8A peak self-limiting protection to avoid overcurrent damage to solenoid valves, alarm indicators and relay assemblies. Degraded mode current thresholds maintain minimum loop drive capacity to prevent false equipment shutdown during partial system anomalies.

Channel-Isolated Anti-Fault Propagation Design

1500VDC channel-to-backplane isolation blocks electrical fault propagation between field loops and internal system backplanes. Independent circuit layout confines short-circuit or overload faults to single channels without affecting adjacent output points or overall module functionality. Isolation reinforcement enhances system stability in electrically noisy industrial facilities.

2. Real-Time Diagnostics and TMR Voting Logic

Per-Point Comprehensive Fault Monitoring

Embedded diagnostic circuits continuously detect common field faults including power loss, output short circuits and abnormal loop voltage deviations. Front panel LED indicators display real-time channel status for on-site visual inspection, while background fault logs sync with TriStation configuration software for remote system auditing. Full-coverage diagnosis eliminates undetected latent faults in safety output loops.

Tribus Redundant Output Verification

Three internal independent channels execute parallel output judgment and data voting for every switching command. Valid output signals take effect only after multi-channel consistency confirmation, filtering erroneous drive signals caused by single-component failure. The TMR mechanism ensures zero misoperation for safety interlock commands under partial hardware degradation.

3. Mechanical Structure and Harsh Environment Adaptability

Standard Rack Mount and Low Power Consumption

Triconex 3401 adopts standard Tricon rack card dimensions for seamless plug-and-play installation in existing SIS chassis. Typical 8W low power consumption reduces cabinet heat accumulation during full-load long-cycle operation. Compact high-density 32-channel design optimizes cabinet space utilization for large-scale safety system construction and expansion.

Wide-Range Industrial Environmental Tolerance

The module supports stable full-performance operation from -40°C to +70°C, adapting to extreme temperature changes in outdoor and enclosed industrial cabinet settings. Reinforced structural components resist mechanical vibration and electromagnetic interference from production machinery. Stable operational output persists under variable humidity and dusty working conditions for petrochemical, power and gas processing sites.

4. Safety Certification and Industrial Deployment Scenarios

Triconex 3401 complies with IEC 61508 functional safety standards and obtains authoritative SIL3 safety integrity level certification for industrial safety applications. The module supports hot-swap maintenance to minimize system downtime during equipment replacement. Common deployment scenarios include emergency shutdown systems, fire and gas suppression control loops and process safety interlock protection for continuous production facilities.
