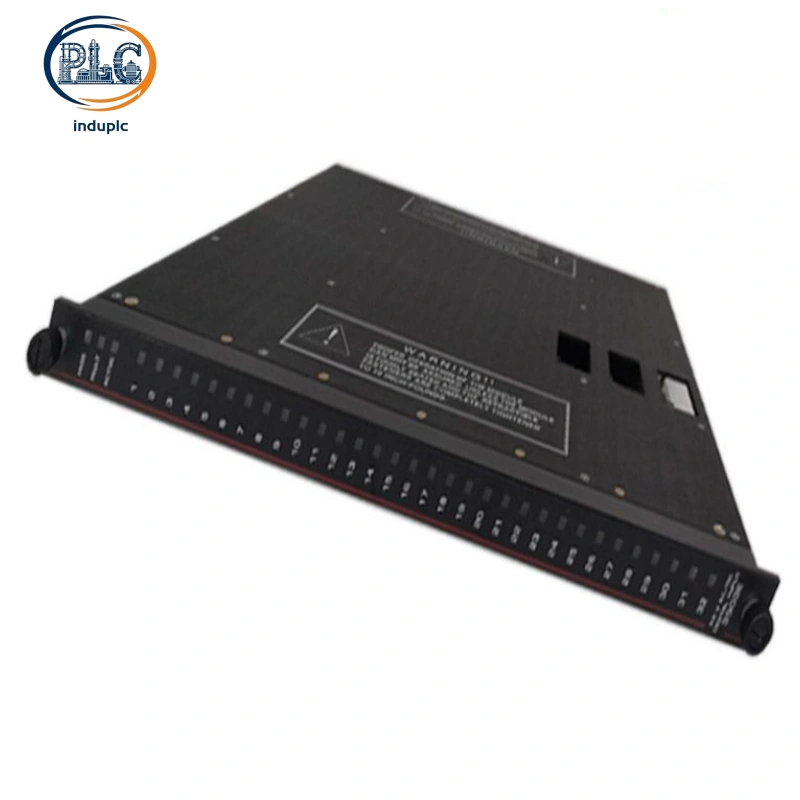

Triconex 3503E 32-Channel Commoned Digital Input Module, 24V AC/DC TMR Fault-Tolerant SIS Field Sensing Unit

Triconex 3503E Group-Commoned 32-Channel Digital Input Module for Tricon SIS Platforms

Triconex 3503E is a high-density discrete signal sensing module built exclusively for Tricon triple modular redundant safety control architectures. The hardware adopts practical 8-channel grouped commoned layout to collect 24V AC/DC field switching signals for industrial safety monitoring. Triconex 3503E features optimized threshold judgment circuits to ensure accurate on-site signal identification. Triconex 3503E integrates comprehensive diagnostic functions to sustain reliable long-term operation of safety instrumented loops.

1. Grouped Channel Layout and Field Signal Adaptation

8-Channel Grouped Commoned Structure

Triconex 3503E arranges 32 independent input points into four standardized groups with eight channels per group, simplifying on-site wiring arrangement and loop classification. Group-based circuit design centralizes common power and grounding terminals to reduce cabinet wiring clutter and installation errors. Unified group layout matches standard field cable harness specifications for fast site deployment and system expansion.

24V AC/DC Wide-Range Signal Compatibility

The module supports standard 20V to 42.5V AC/DC input coverage, adapting to universal 24V industrial discrete signal standards. Clear threshold definition ensures reliable status discrimination, with ON trigger above 15V and OFF cutoff below 5V to avoid ambiguous signal judgment. Stable sampling performance covers 47Hz to 63Hz AC frequency fluctuations for variable field power environments.

2. Runtime Diagnostics and Anti-Interference Performance

Continuous Channel Health Monitoring

Triconex 3503E runs real-time background diagnostics for all channels to detect open circuit faults, abnormal voltage drift and wiring anomalies. Non-intrusive self-test routines operate without occupying system scan bandwidth, maintaining consistent logic response speed. Precise fault localization accelerates on-site troubleshooting and shortens safety loop maintenance cycles.

Industrial Grade Noise Suppression Design

Built-in signal filtering circuits suppress transient voltage spikes and electromagnetic interference generated by industrial machinery. Optimized channel impedance restricts DC current below 2.0mA and AC current below 15mA per channel, limiting loop power consumption and heat accumulation. Anti-jamming structure guarantees valid signal acquisition in electrically complex factory cabinet environments.

3. TMR Fault Tolerance and System Integration Features

Tribus Bus Voting Redundant Logic

Three parallel internal processing channels execute synchronous signal collection and data comparison for every discrete input. Tribus bus voting mechanism filters distorted data from single-channel hardware defects or field interference. The triple modular redundant framework eliminates system single-point failures and maintains continuous signal acquisition during partial module degradation.

Plug-and-Play Chassis Compatibility

Triconex 3503E fits standard Tricon SIS rack slots with unified backplane bus protocol for direct plug-in installation. Full backward compatibility supports firmware matching with mainstream Tricon system versions. Hot-swap capable design allows single module replacement without interrupting running safety logic, reducing unplanned plant downtime.

4. Environmental Resistance and Functional Safety Certification

Harsh Industrial Environment Adaptability

The module delivers full-performance operation across -40°C to +70°C, tolerating extreme temperature cycling and long-duration high-load operation. Rugged component packaging resists mechanical vibration, dust erosion and non-condensing humidity ranging from 5% to 95%. Industrial-grade structural design meets G3 environmental standards for offshore, petrochemical and power plant deployment.

Authorized SIL3 Safety Qualification

Triconex 3503E complies strictly with IEC 61508 functional safety standards and obtains formal SIL3 safety integrity level certification. Multiple global approvals including CE, UL and ATEX verify universal industrial applicability. Complete certification credentials support safety audit verification and project acceptance for critical process safety systems.

5. Core Industrial Application Scenarios

Triconex 3503E undertakes large-scale discrete signal monitoring for emergency shutdown systems, fire and gas detection systems and process interlock protection loops. The high-density grouped channel design suits large SIS projects with massive field limit switches and safety contact signals. Stable fault-tolerant performance ensures reliable safety response for continuous production industrial facilities.
