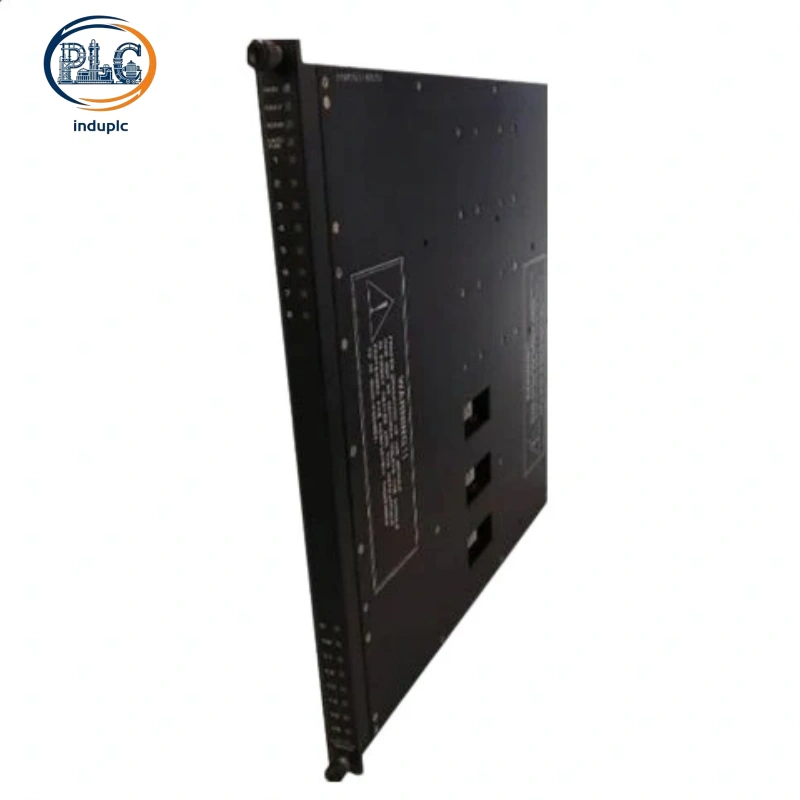

Triconex 3604E 16-Channel Monitored Digital Output Module, 24VDC 2A Sourcing TMR Fault-Tolerant SIS Critical Control Unit

Triconex 3604E High-Current Monitored 16-Channel Digital Output Module for Tricon SIS Critical Control

Triconex 3604E is a high-performance monitored digital output module engineered for critical safety control applications in Tricon triple modular redundant SIS platforms. The 16-channel non-commoned sourcing output design supports high-current field device driving with full-loop real-time monitoring capabilities. Triconex 3604E adopts professional ETP matching structure and enhanced surge resistance for rigorous industrial safety scenarios. Triconex 3604E ensures precise, traceable and fault-tolerant output execution for core process safety interlock commands.

1. Sourcing Output Electrical Specifications and High-Load Driving Capacity

Wide 24VDC Industrial Operating Range

Triconex 3604E supports an extended operating voltage range of 22VDC to 45VDC with 24VDC nominal rating, fully adapting to unstable DC power supply fluctuations in industrial safety cabinets. The wide voltage tolerance eliminates output malfunction caused by transient power deviation, ensuring consistent command execution under variable on-site power conditions. Standard DC voltage specification matches universal industrial safety power distribution standards for petrochemical and power plant systems.

2A Continuous High-Current Load Performance

Each independent channel provides 2A continuous sourcing output current, capable of driving heavy-duty field loads including high-power solenoid valves, motor starters and main relay assemblies. The module withstands 10A short-duration surge current within 10ms, accommodating instantaneous startup impact of inductive loads without circuit damage. Fast response timing below 1ms guarantees rapid safety action triggering for time-critical interlock and shutdown scenarios.

2. Full Monitored Loop Diagnostics and Fault Self-Detection

Per-Channel Full-Loop Health Supervision

Different from non-supervised auxiliary output modules, Triconex 3604E integrates comprehensive loop monitoring circuits for every output point. The system continuously detects load loss, open wiring, short-circuit faults and abnormal voltage feedback during runtime. Full diagnostic coverage eliminates blind output status, enabling real-time validation of field device operational states for critical safety loops.

Accurate Fault Locating and Data Synchronization

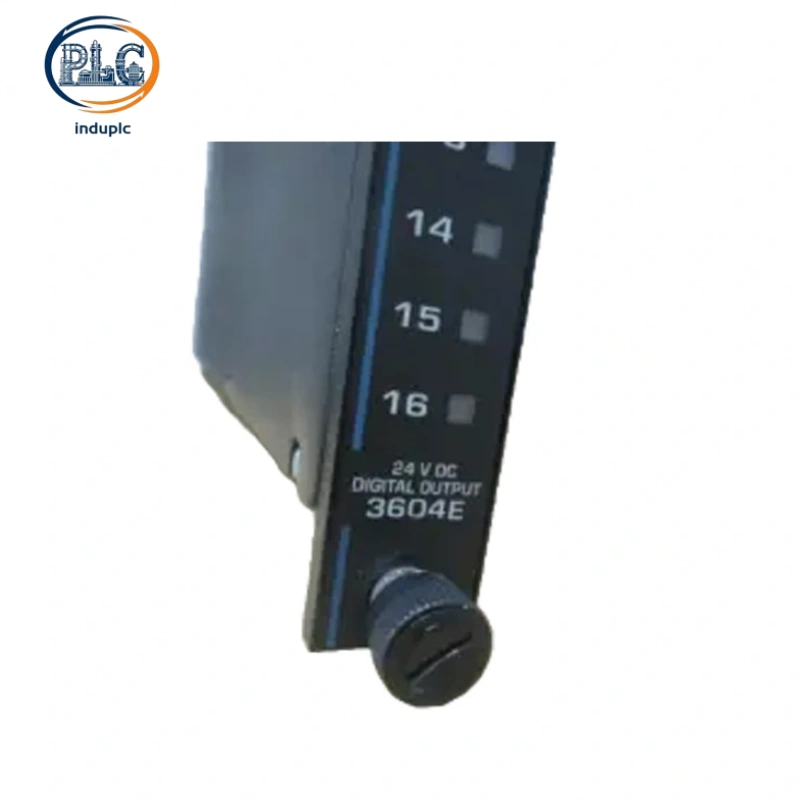

Front panel LED indicators display module running status, fault alarms and channel activation states for intuitive on-site inspection. All diagnostic data synchronizes automatically with TriStation configuration software for centralized logging, remote monitoring and fault tracing. Precise single-point fault positioning simplifies targeted maintenance and reduces safety loop troubleshooting downtime.

3. ETP Matching Structure and Isolation Protection Design

External Termination Panel (ETP) Compatibility

Triconex 3604E supports dedicated External Termination Panel configuration, with built-in point-to-point fuses integrated inside the ETP for independent overcurrent protection. The ETP wiring structure standardizes field cable arrangement, separates strong and weak current signals, and improves overall cabinet wiring regularity. Professional terminal matching avoids wiring confusion and enhances long-term operational safety of high-current output loops.

Non-Commoned Optical Isolation Anti-Interference Performance

All 16 channels adopt fully non-commoned independent circuit layout with high-strength optical isolation barriers. Complete electrical separation between channels, field loops and system backplanes prevents fault cross-propagation and ground loop interference. Reinforced electromagnetic compatibility design suppresses high-frequency noise and vibration interference in harsh industrial electromagnetic environments.

4. TMR Redundant Mechanism and System Operational Reliability

Triple Modular Redundant Voting Logic

Three independent internal processing channels execute parallel command calculation and Tribus bus voting verification for all output signals. Only consistent multi-channel results can trigger valid field output, effectively filtering abnormal commands caused by single-component failure or signal distortion. The TMR redundant architecture completely eliminates single-point failures and ensures zero misoperation for critical safety control commands.

Hot-Swap and Mechanical Safety Design

Triconex 3604E supports hot-swap online replacement without system shutdown or safety logic suspension, minimizing unplanned production downtime. Built-in mechanical keying structure prevents incorrect slot insertion and module mismatch. Passive cooling structure with reserved heat dissipation clearance avoids overheating during long-term full-load high-current operation.

5. Environmental Adaptability and Safety Industrial Deployment

The module maintains full functional stability across -40°C to +70°C wide industrial temperature range, adapting to extreme temperature cycling, dust accumulation and 5%–95% non-condensing humidity. Complying with IEC 61508 functional safety standards, Triconex 3604E obtains authoritative SIL3 safety integrity level certification, plus UL Class I Div 2 and ATEX Zone 2 hazardous area approvals. Primarily deployed for core safety control loops including ESD emergency shutdown, burner management and fire & gas suppression systems in refining, natural gas processing and power generation facilities.
