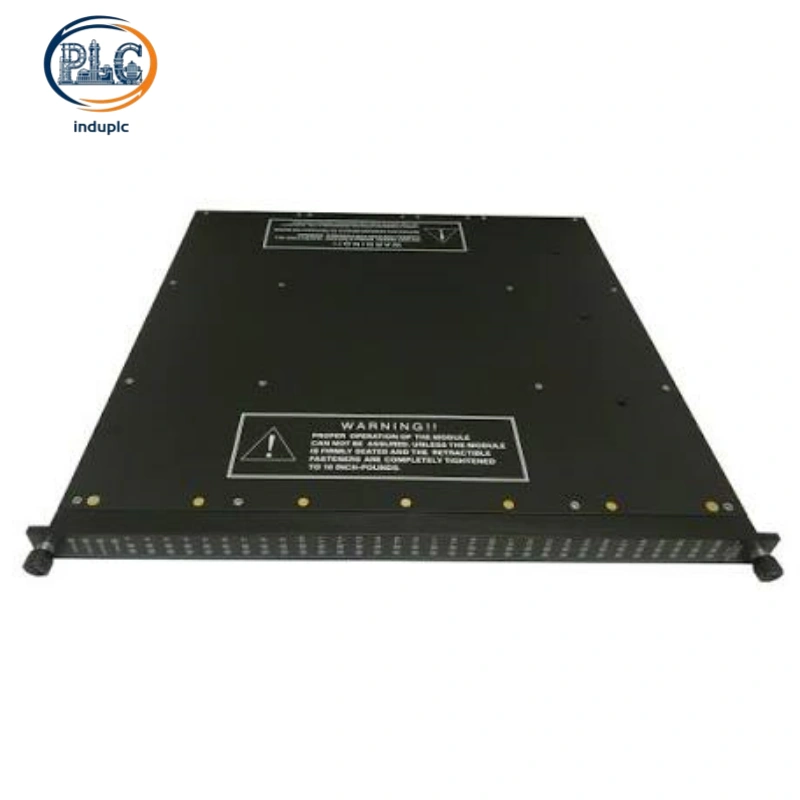

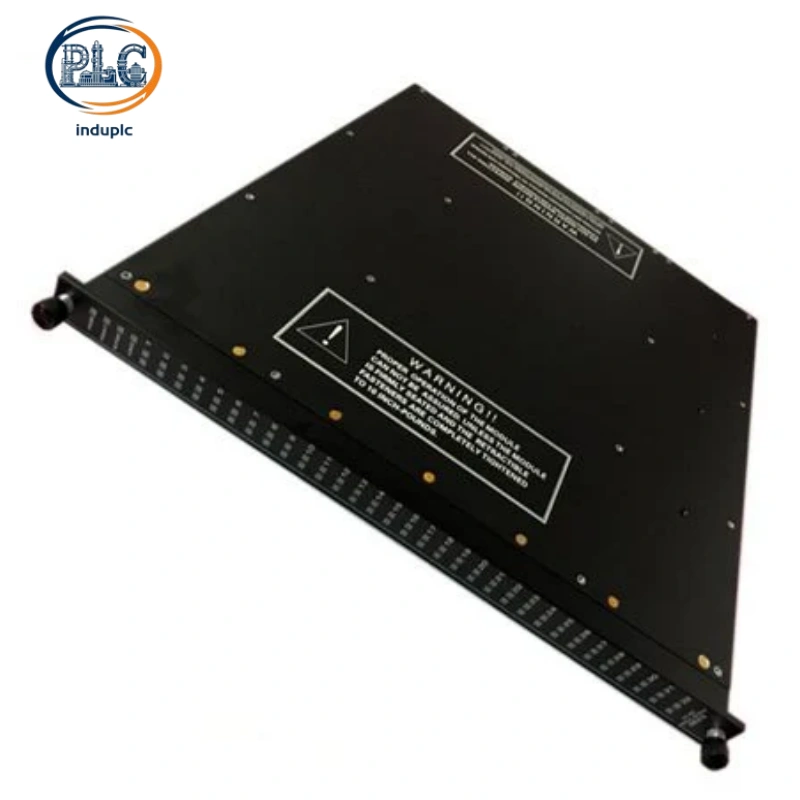

Triconex 3625 32-Channel Supervised Commoned Digital Output Module, 24VDC TMR Fault-Tolerant High-Density SIS Control Unit

Triconex 3625 High-Density 32-Channel Commoned Digital Output Module for Tricon SIS Safety Control

Triconex 3625 is a space-efficient high-density digital output module purpose-built for Tricon triple modular redundant safety instrumented systems. Featuring a 32-channel commoned layout, this module consolidates massive discrete control points within a single rack slot, outperforming conventional 16-channel output modules in space utilization. Triconex 3625 supports configurable supervised and non-supervised operating modes to adapt diverse safety loop requirements. Triconex 3625 delivers consistent fault-tolerant output performance for large-scale industrial process safety and emergency control applications.

1. High-Density Commoned Channel Architecture & Wiring Advantages

32-Point Integrated Commoned Circuit Design

Triconex 3625 adopts a compact 32-channel commoned output structure, maximizing I/O capacity per single standard Tricon rack slot. The grouped common terminal layout streamlines field wiring distribution, reduces redundant cable runs and simplifies cabinet harness management compared with non-commoned output modules. This high-density design significantly lowers overall system construction costs and saves valuable cabinet space for large SIS projects with extensive discrete control points.

Optimized Large-Scale System Deployment

The unified channel grouping structure supports standardized wiring specifications, minimizing on-site wiring errors and shortening commissioning cycles. Centralized common grounding and power terminals enhance circuit neatness and maintainability for multi-point parallel control loops. Designed for mass auxiliary and critical safety output scenarios, the module perfectly fits large petrochemical, power and gas processing SIS system expansion demands.

2. 24VDC Wide-Range Electrical & Load Performance

Industrial-Grade DC Voltage Adaptability

Triconex 3625 operates reliably across a wide 16VDC to 32VDC nominal range, withstanding transient peak voltage up to 36VDC to accommodate industrial power fluctuations. Precise voltage threshold calibration ensures stable on/off signal discrimination without ambiguous state switching under unstable cabinet power conditions. The 24VDC-centered specification matches universal industrial DC safety power distribution standards for mainstream SIS architectures.

Stable Continuous Load Driving Capacity

Each channel delivers steady continuous current output to drive standard 24VDC field loads, including safety indicator lamps, alarm buzzers, miniature solenoid valves and auxiliary interlocking relays. Built-in current limiting circuitry prevents overload damage and restricts surge current during equipment startup. Fast response timing under 10ms ensures rapid execution of safety interlock and shutdown commands for time-sensitive process protection loops.

3. Switchable Supervised Diagnostics & Fault Detection

Configurable Supervised/Non-Supervised Dual Modes

As a core differentiated feature, Triconex 3625 supports software-switchable supervised and non-supervised operating modes to meet flexible field requirements. Supervised mode enables full-loop health monitoring for critical safety loops, while non-supervised mode optimizes cost for conventional auxiliary control scenarios. This dual-mode design eliminates the need for deploying two separate module types, simplifying system I/O configuration and inventory management.

Full-Coverage Field Loop Fault Diagnosis

In supervised mode, the module continuously detects comprehensive field loop faults including open circuits, load loss, short-circuit overload and blown field fuses. Extended diagnostic coverage monitors both module internal status and external field circuit health, eliminating hidden failure risks in safety loops. Real-time fault identification prevents undetected loop anomalies that could lead to safety function failure during critical process conditions.

4. TMR Redundant Mechanism & System Compatibility

Tribus Voting Fault-Tolerant Operation

Triconex 3625 inherits standard Tricon TMR redundant architecture with three fully independent internal processing channels. Parallel command calculation and Tribus bus voting logic verify all output signals, filtering abnormal data caused by single-component aging, circuit interference or hardware defects. The triple modular redundant structure eliminates system single-point failures, ensuring zero misoperation for critical safety control commands.

Seamless System Integration & Hot-Swap Support

The module features standard Tricon backplane interface for plug-and-play installation, fully compatible with Tricon v9, v10 and v11 system firmware versions. Hot-swap maintenance functionality allows online module replacement without suspending safety logic or halting production operations, minimizing unplanned industrial downtime. Standard rack dimensions enable flexible system expansion and legacy system renovation.

5. Environmental Resistance & Functional Safety Certification

Triconex 3625 maintains full functional stability across -40°C to +70°C wide industrial temperature range, tolerating 5%–95% non-condensing humidity, mechanical vibration and dust accumulation in harsh industrial environments. Complying strictly with IEC 61508 functional safety standards, the module holds authoritative SIL3 safety integrity level certification, along with CE, UL and ATEX hazardous area approvals. Widely deployed in petrochemical refining, natural gas processing and power generation facilities, it serves large-scale ESD emergency shutdown systems, fire and gas alarm control loops and process safety interlock auxiliary control systems.
