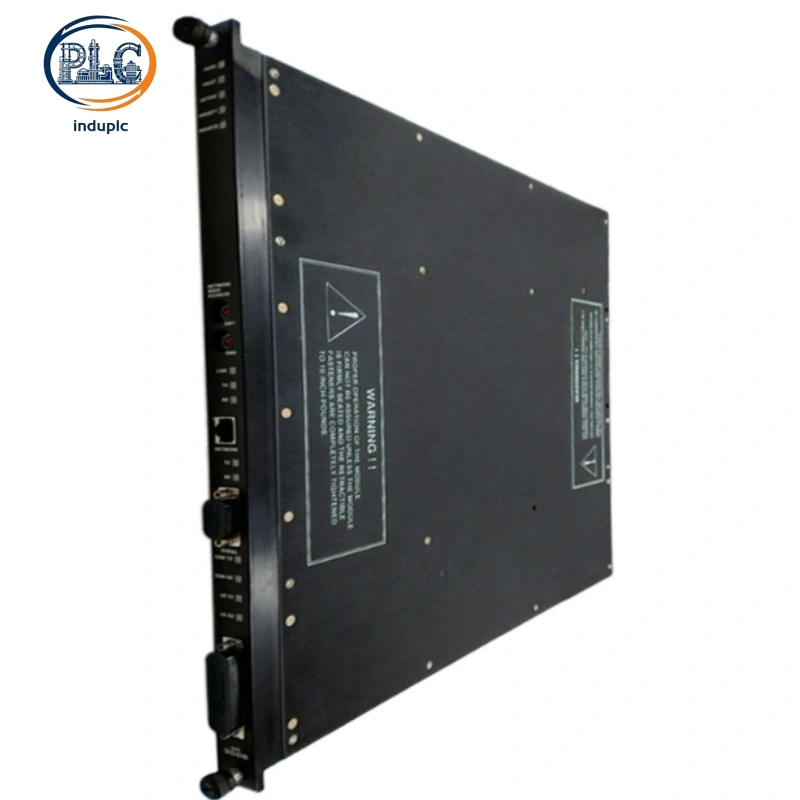

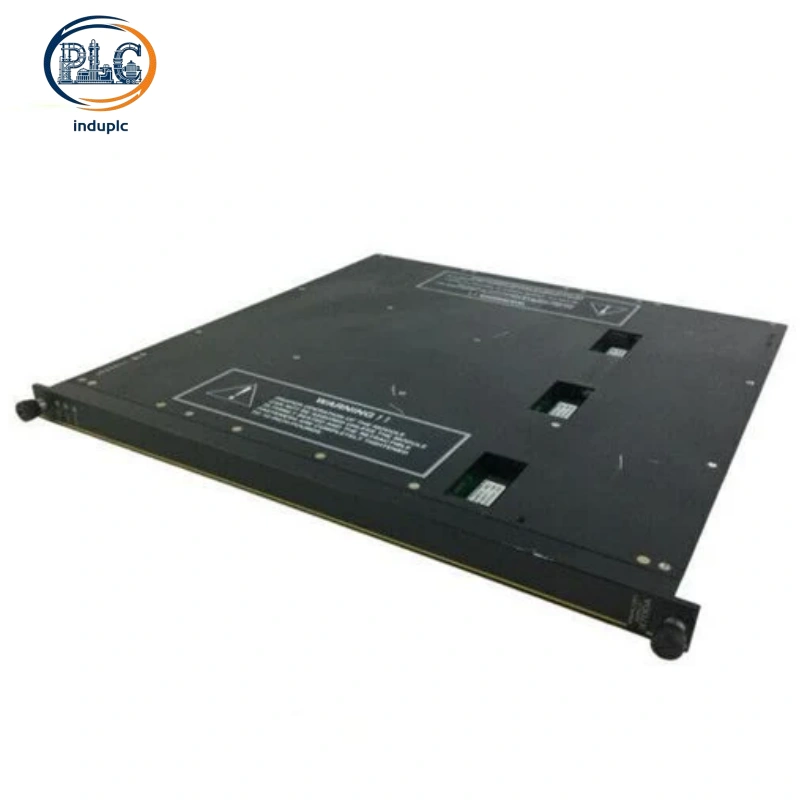

Triconex 3700A 32-Channel Differential Analog Input Module, 12-Bit High-Precision TMR Fault-Tolerant SIS Data Acquisition Unit

Triconex 3700A High-Density 32-Channel Differential Analog Input Module for Tricon SIS Systems

Triconex 3700A is a core high-precision analog acquisition module in the Triconex 3700 series, designed exclusively for Tricon triple modular redundant safety instrumented systems. As a high-density differential input unit, Triconex 3700A supports synchronous sampling of 32 analog field signals to meet large-scale process parameter monitoring demands. Triconex 3700A adopts professional 12-bit signal conversion and noise suppression technology to ensure ultra-accurate data collection. Triconex 3700A maintains stable long-term acquisition performance for high-reliability industrial safety control scenarios.

1. High-Density Differential Channel Architecture

32-Channel Fully Differential DC-Coupled Design

Triconex 3700A integrates 32 independent DC-coupled differential input channels within a single standard rack slot, greatly improving cabinet space utilization compared with conventional low-density analog modules. The differential circuit layout eliminates common-mode signal interference inherent in single-ended input designs, delivering cleaner field signal sampling. Each channel operates independently without cross-talk, ensuring synchronous and accurate data acquisition for multi-point process monitoring loops.

Built-In Channel Circuit Stability Parameters

The module features 30kΩ typical off-state input resistance, providing stable load matching for field analog transmitters and sensors. Moderate channel-to-channel isolation resistance prevents mutual signal coupling during full-load operation. Optimized circuit impedance design adapts to long-distance field wiring, effectively reducing signal attenuation and distortion in complex industrial wiring environments.

2. 12-Bit Precision Acquisition and Strict Accuracy Specifications

Ultra-Low Full-Scale Measurement Error

Equipped with 12-bit high-precision analog-to-digital conversion chips, Triconex 3700A achieves measurement accuracy lower than 0.15% FSR across standard industrial temperature ranges. Fine-grained signal grading capability captures subtle process parameter changes, supporting precise regulation and safety judgment for process variables. Strict factory calibration eliminates batch deviation, ensuring consistent acquisition accuracy of every channel.

Fast and Uniform Signal Update Rate

The module maintains a fixed 55ms unified update cycle for all 32 channels, ensuring synchronized data refreshing of the entire analog loop system. Stable sampling speed avoids data desynchronization during multi-parameter joint monitoring, providing consistent and reliable data basis for SIS logic judgment and process control. Uniform update performance adapts to continuous dynamic process fluctuation monitoring demands.

3. Industry-Leading Noise Suppression Performance

Superior Common-Mode Rejection Capability

Triconex 3700A delivers typical -80dB common-mode rejection within DC to 100Hz frequency band, effectively filtering common-mode noise induced by industrial grounding deviation and power fluctuation. The wide common-mode input range of -12V to +12V peak tolerates transient unbalanced voltage interference in field loops, ensuring effective signal extraction from complex noise backgrounds.

Targeted Normal-Mode Noise Filtering

Built-in frequency selective filtering suppresses industrial power frequency interference, achieving -17dB rejection at 60Hz and -23dB rejection at 120Hz. Professional normal-mode attenuation design eliminates periodic clutter noise generated by surrounding mechanical equipment and power distribution systems, retaining effective analog signal authenticity and stability.

4. TMR Fault Tolerance and Intelligent Diagnostic Mechanism

2oo3 Tribus Voting Redundant Logic

Adopting standard Tricon triple modular redundant architecture, Triconex 3700A executes parallel signal sampling and data verification through three independent internal channels. The 2-out-of-3 voting mechanism filters abnormal data caused by single-channel circuit failure or external interference, completely eliminating system single-point failure risks. Fault-tolerant operation ensures uninterrupted analog monitoring during partial module performance degradation.

Full-Coverage Runtime Self-Diagnostics

Embedded background diagnostic programs continuously detect channel open circuits, signal overrange, voltage anomalies and internal circuit faults during system operation. Real-time fault tagging and data synchronization with TriStation software support remote monitoring, centralized logging and rapid fault location. Comprehensive diagnostic coverage meets strict functional safety requirements for unattended long-term operation.

5. Electrical Parameters and Industrial Environmental Adaptability

Stable Power and Overrange Protection

Triconex 3700A operates on 18VDC to 32VDC industrial power supply with 24VDC nominal voltage, adapting to conventional cabinet power fluctuations. The module supports 150VDC/115VAC continuous input overrange protection, effectively resisting transient surge voltage impact on field loops. Typical 12W low power consumption reduces cabinet heat accumulation and long-term component aging.

Wide-Range Harsh Environment Resistance

The module achieves full-performance operation from -40°C to +70°C working temperature, with storage temperature tolerating up to +85°C. It adapts to 5%–95% non-condensing humidity, mechanical vibration and dust accumulation in petrochemical, power and offshore industrial sites. Rugged industrial-grade component packaging ensures stable acquisition accuracy under extreme environmental conditions.

6. Safety Certification and Core Industrial Application Scenarios

Triconex 3700A complies strictly with IEC 61508 functional safety standards and obtains authoritative SIL3 safety integrity level certification. It supports seamless compatibility with Tricon CX, EX and legacy SIS systems, enabling plug-and-play installation, hot-swap maintenance and flexible system expansion. Widely deployed in refining, natural gas processing and power generation facilities, the module undertakes high-precision monitoring of pressure, temperature, flow and liquid level parameters for ESD emergency shutdown, process interlock and fire & gas safety systems.
