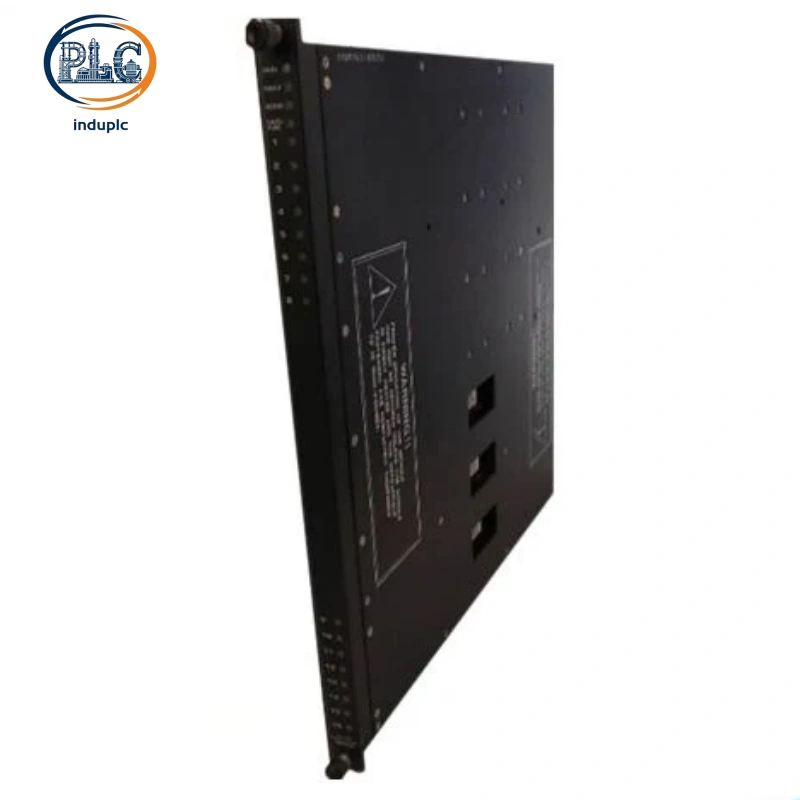

Triconex 3703E 16-Channel Isolated Differential Analog Input Module, 12-Bit Configurable Voltage TMR Fault-Tolerant SIS Acquisition Unit

Triconex 3703E Isolated 16-Channel Differential Analog Input Module for Tricon SIS Precision Monitoring

Triconex 3703E is a high-reliability isolated analog acquisition module within the Triconex 3700 series, tailored for Tricon triple modular redundant safety instrumented systems. Differentiated from high-density non-isolated analog modules, Triconex 3703E adopts full per-channel isolation design to eliminate cross-channel interference and fault coupling. Triconex 3703E supports flexible software-selectable voltage input ranges to adapt diverse field transmitter specifications. Triconex 3703E maintains ultra-high anti-interference performance and consistent sampling accuracy for rigorous industrial safety monitoring scenarios.

1. Fully Isolated 16-Channel Differential Layout

Per-Channel Independent Isolated Structure

Triconex 3703E features 16 standalone differential input channels with complete electrical isolation between each point, breaking through the limitations of common high-density shared-circuit modules. Leg-to-leg isolation design prevents signal cross-talk and restricts short-circuit or surge faults to individual channels, avoiding overall module failure. The independent channel layout delivers superior signal purity, making the module ideal for complex multi-parameter monitoring environments with strict interference suppression requirements.

Ultra-High Input Impedance Characteristics

The module integrates 30MΩ minimum DC input resistance, far exceeding conventional analog input modules. Ultra-high impedance design avoids load effects on field sensors and voltage transmitters, ensuring original signal integrity without attenuation or distortion. Stable load matching adapts to long-distance field wiring and high-impedance signal sources, maintaining acquisition authenticity in complex on-site circuit conditions.

2. Configurable Voltage Range and 12-Bit Precision Performance

Dual Software-Selectable Voltage Modes

Triconex 3703E supports two mainstream industrial voltage input ranges via TriStation software configuration: 0–5V and 0–10V, with a built-in +6% overrange tolerance for transient signal fluctuation adaptation. No hardware modification or jumper adjustment is required for range switching, greatly simplifying on-site commissioning and system configuration. Flexible voltage compatibility covers most standard voltage-type process transmitters in petrochemical, power and gas industries.

Ultra-Low Full-Scale Acquisition Error

Equipped with 12-bit high-resolution analog-to-digital conversion chips, the module achieves accuracy lower than 0.15% FSR across standard industrial temperature ranges. Fine-grained signal resolution captures subtle process variable changes, supporting precise safety threshold judgment and trend monitoring. Strict factory calibration ensures consistent precision across all 16 channels, eliminating individual point deviation and improving overall system monitoring uniformity.

3. Industry-Top Anti-Interference Filtering Capability

Extreme Common-Mode Rejection Performance

Triconex 3703E delivers exceptional noise suppression with -100dB minimum common-mode rejection at DC and -90dB minimum rejection at 60Hz, effectively filtering grounding deviation, power frequency drift and common-mode surge interference. It supports an ultra-wide ±200V peak common-mode input range, tolerating severe unbalanced voltage interference in field loops and ensuring valid signal extraction under harsh electromagnetic conditions.

Targeted Normal-Mode Noise Attenuation

Built-in frequency-selective filtering architecture suppresses industrial power frequency clutter, achieving -17dB rejection at 60Hz and enhanced attenuation at 120Hz harmonic interference. Customized filter parameters eliminate periodic noise generated by high-power equipment and power distribution systems, retaining effective analog signal stability and authenticity for long-term unattended monitoring.

4. TMR Redundant Architecture and Full Diagnostic Coverage

2oo3 Voting Fault-Tolerant Mechanism

Adopting standard Tricon triple modular redundant technology, Triconex 3703E operates three fully independent internal sampling channels for parallel data collection and verification. The 2-out-of-3 voting logic filters abnormal data caused by single-component failure or external interference, completely eliminating system single-point failure risks. Fault-tolerant operation guarantees continuous monitoring function during partial module performance degradation.

Real-Time Channel Health Diagnostics

Continuous background self-diagnostic routines monitor channel open circuits, signal overrange, wiring faults and internal circuit anomalies throughout system operation. Real-time fault tagging and data synchronization with TriStation software enable remote status viewing, centralized logging and rapid single-point fault positioning. Comprehensive diagnostic coverage meets strict functional safety requirements for critical SIS loop operation.

5. Environmental Adaptability and System Compatibility

Wide-Temperature Industrial Grade Durability

Triconex 3703E delivers full functional performance across -40°C to +70°C operating temperature range, adapting to extreme temperature cycling in enclosed cabinets and outdoor industrial sites. It withstands 5%–95% non-condensing humidity, mechanical vibration and dust accumulation, complying with industrial G3 environmental standards. Rugged component packaging ensures long-term stable precision in offshore, chemical and power generation facilities.

Plug-and-Play SIS System Integration

The module matches standard Tricon chassis backplane interface, supporting seamless compatibility with mainstream Tricon SIS firmware versions. Hot-swap functionality allows online module replacement without suspending safety logic or halting production, minimizing unplanned downtime. Compact 16-channel layout balances high precision and cabinet space utilization, suitable for medium-scale precision analog monitoring projects.

6. Safety Certification and Target Application Scenarios

Triconex 3703E complies with IEC 61508 functional safety standards and holds authoritative SIL3 safety integrity level certification, along with CE, UL and ATEX hazardous area approvals. Primarily applied in high-precision safety monitoring scenarios, the module collects voltage-type analog signals for temperature, pressure, flow and level parameters. It widely serves ESD emergency shutdown systems, burner management systems and fire & gas safety loops in refining, natural gas processing and power generation industries.
