Triconex 3704E 8-Channel Isolated Analog Output Module, 16-Bit Programmable 4-20mA/Voltage TMR Fault-Tolerant SIS Control Unit

Triconex 3704E High-Precision Isolated 8-Channel Analog Output Module for Tricon SIS Process Control

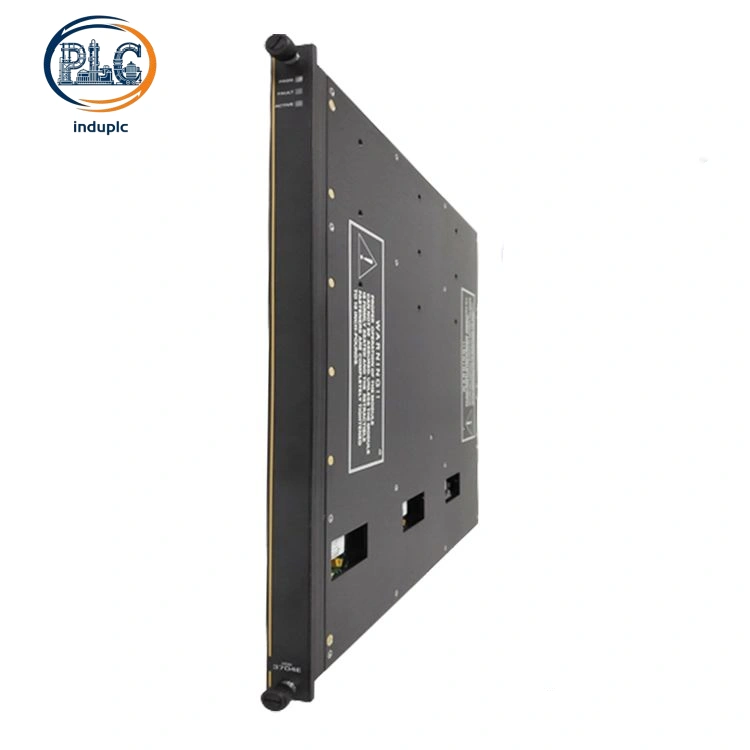

Triconex 3704E is a high-performance fault-tolerant analog output module in the Triconex 3700 series, purpose-built for Tricon triple modular redundant safety instrumented systems. Unlike analog input modules for signal collection, Triconex 3704E focuses on accurate field actuator driving, supporting dual current and voltage output modes. Triconex 3704E integrates 16-bit ultra-fine resolution and group-isolated circuit design to ensure stable and precise safety control output. Triconex 3704E provides reliable closed-loop control execution for high-requirement industrial process safety scenarios.

1. Group-Isolated 8-Channel Output Architecture

4×2 Channel Independent Isolated Group Layout

Triconex 3704E adopts a unique grouped isolation structure with 8 output channels divided into four independent groups of two channels each. Each isolated group features complete electrical separation from system ground and adjacent groups, effectively suppressing cross-channel signal coupling and interference. This segmented isolation design limits local short-circuit or surge faults to individual groups, avoiding full-module output failure and improving overall system operational safety margin.

1500Vrms High-Strength Dielectric Isolation

Every channel group is equipped with 1500Vrms industrial-grade isolation barriers between field loads and internal system circuits. Reinforced insulation structure resists transient voltage surges and electrostatic impact in harsh electromagnetic environments. Standard EMC isolation design eliminates ground loop noise and fault propagation risks, ensuring pure and stable analog output signals for long-term continuous control.

2. Dual Programmable Output Modes and Precise Performance

Software-Configurable Current & Voltage Ranges

Supporting flexible on-site configuration via TriStation software, Triconex 3704E adapts to mainstream industrial analog control standards, including 4-20mA current output and 0-5V/0-10V voltage output ranges. No hardware jumper adjustment or circuit modification is required for mode switching, greatly simplifying equipment commissioning and system debugging. Multi-spec output compatibility matches various field actuators such as regulating valves, variable frequency drives and proportional relays.

16-Bit Ultra-High Resolution Output Accuracy

Equipped with 16-bit high-precision digital-to-analog conversion chips, the module achieves ultra-fine output grading and minimal signal deviation. Strict factory calibration ensures full-scale error far below industry standard levels, supporting micro-adjustment of process parameters. High-resolution output capability meets precise regulation demands of critical process loops, avoiding parameter jitter and ensuring stable industrial operation.

3. Fast Response Speed and Dynamic Control Stability

15ms Ultra-Fast Unified Update Rate

Triconex 3704E delivers a fixed 15ms high-speed output update cycle, far exceeding conventional analog output modules. Rapid signal response realizes real-time tracking and quick adjustment of dynamic process parameter changes, adapting to fast-changing industrial working conditions. Synchronous update of all channels ensures consistent output rhythm of multi-point cooperative control loops, avoiding system control lag.

Smooth Dynamic Output Regulation

Built-in intelligent signal smoothing algorithm suppresses output jitter and sudden fluctuation during parameter switching. The module maintains stable linear output under full load and variable load conditions, ensuring continuous and accurate control of field actuators. Optimized transient response design prevents equipment impact caused by sudden signal changes, protecting the service life of precision control components.

4. TMR Fault Tolerance and Comprehensive Operational Diagnostics

2oo3 Tribus Voting Redundant Logic

Following standard Tricon TMR safety architecture, Triconex 3704E runs three independent internal signal processing channels for parallel operation and data voting. The 2-out-of-3 voting mechanism automatically filters abnormal output signals caused by single-component failure or external interference. The redundant design completely eliminates system single-point failures, ensuring zero misoperation of critical safety control commands.

Real-Time Output Loop Health Monitoring

Continuous background self-diagnostics monitor key loop status including load open circuit, overload abnormality, signal deviation and internal circuit faults. Front panel LED indicators intuitively display module operating status and fault alarms. All anomaly data synchronizes to TriStation software for centralized logging, remote monitoring and rapid fault positioning, reducing safety loop maintenance downtime.

5. Environmental Adaptability and System Compatibility

Harsh Industrial Environment Resistance

Triconex 3704E operates stably across -40°C to +70°C wide industrial temperature range, adapting to extreme temperature cycling in enclosed cabinets and outdoor industrial sites. It withstands 5%–95% non-condensing humidity, mechanical vibration and dust accumulation, complying with G3 industrial environmental standards. Industrial-grade component packaging ensures long-term stable output accuracy for unattended SIS operation.

Hot-Swap Support and Seamless Integration

The module adopts standard Tricon chassis backplane interface, fully compatible with mainstream Tricon SIS firmware versions. It supports hot-swap online replacement without suspending safety logic or shutting down production equipment, minimizing unplanned industrial downtime. Compact 8-channel layout is suitable for medium and small-scale precision analog control systems, realizing flexible system expansion and renovation.

6. Safety Certification and Core Industrial Application Scenarios

Triconex 3704E complies strictly with IEC 61508 functional safety standards and obtains authoritative SIL3 safety integrity level certification, with CE, UL and ATEX hazardous area approvals. Widely deployed in petrochemical refining, natural gas processing and power generation facilities, the module undertakes precise analog control for regulating valves, safety actuators and variable-speed equipment. It serves core control loops such as ESD auxiliary regulation, burner management and process parameter closed-loop safety control.
