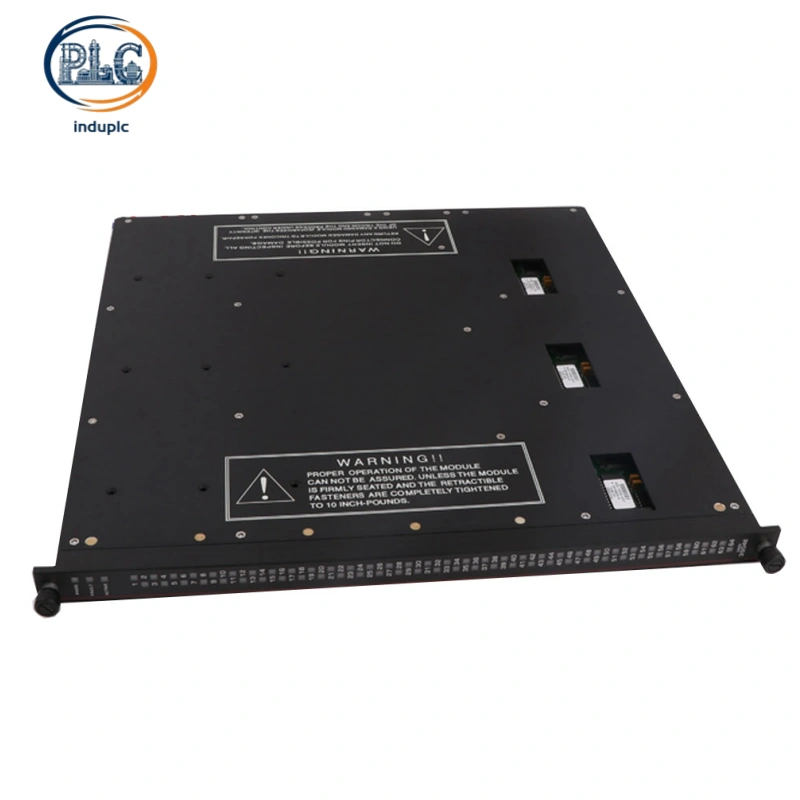

Triconex 3708EN 8-Channel Universal Isolated Analog Input Module, 12/16-Bit High-Accuracy TMR Fault-Tolerant SIS Temperature & Process Monitoring Unit

Triconex 3708EN Universal Isolated 8-Channel Analog Input Module for Multi-Purpose SIS Process Monitoring

Triconex 3708EN is a multi-functional universal analog input module in the Triconex 3700 series, specially designed for Tricon triple modular redundant safety instrumented systems. Differentiated from single-specification analog modules, Triconex 3708EN supports both current and voltage signal acquisition, adapting to diverse field sensors and temperature detection equipment. Triconex 3708EN features full channel isolation and ultra-high precision conversion to ensure stable and accurate data collection in complex industrial environments. Triconex 3708EN serves as a core universal acquisition unit for multi-scene process safety monitoring in petrochemical and power industries.

1. Universal Multi-Range Signal Compatibility

Dual Current & Voltage Input Support

Triconex 3708EN integrates universal signal acquisition capability, covering mainstream industrial analog input specifications including 4-20mA current signal and 0-5V, 1-5V, 0-10V voltage signals. With an external 250-ohm resistor configuration, the module achieves precise current signal sampling without hardware circuit modification. Flexible signal compatibility adapts to various process transmitters and temperature sensors, eliminating the need for multiple dedicated analog modules and simplifying system I/O configuration.

Wide Adaptive Signal Spectrum

The module supports ±10V wide-range voltage input and standard 4-20mA industrial current loop signals, fully matching field monitoring requirements of pressure, flow, liquid level and temperature parameters. Software-configurable signal ranges via TriStation software realize fast mode switching, greatly improving on-site commissioning efficiency. Multi-spec signal adaptation enables one-module multi-purpose deployment for complex industrial monitoring scenarios.

2. Full Isolation Design and Superior Anti-Interference Performance

1000VDC Per-Channel Isolation Protection

Triconex 3708EN adopts independent full isolation structure for all 8 channels, with 1000VDC dielectric isolation between channel-to-channel and channel-to-chassis. Complete electrical separation effectively blocks fault propagation, transient surges and cross-talk interference between adjacent loops. The isolated design restricts single-channel short-circuit or abnormal faults to individual points, ensuring overall module monitoring function remains unaffected and improving system operational stability.

Ultra-High Input Impedance Characteristics

Equipped with >10MΩ ultra-high input impedance in voltage acquisition mode, the module avoids load effect and signal attenuation on field sensors. Zero extra burden on front-end measuring equipment ensures original signal integrity and acquisition accuracy, especially suitable for long-distance field wiring and high-precision weak signal monitoring scenarios. Excellent impedance matching performance eliminates signal distortion caused by circuit impedance mismatch.

3. Dual Resolution Precision and Ultra-Low Error Performance

12/16-Bit Switchable Conversion Resolution

Triconex 3708EN supports dual-resolution analog-to-digital conversion, compatible with 12-bit standard and 16-bit high-precision sampling modes. Users can flexibly switch resolution according to on-site accuracy requirements, balancing monitoring precision and system response speed. 16-bit ultra-fine grading capability captures subtle parameter changes, while 12-bit stable sampling adapts conventional process monitoring scenarios, realizing hierarchical precision control.

Industry-Leading Ultra-Low Measurement Deviation

The module achieves ultra-high measurement accuracy with typical error of ±0.05% of reading plus 1μV, and full-scale error lower than 0.15% FSR under standard working conditions. Strict factory calibration and temperature drift compensation technology ensure stable precision across wide temperature ranges. Consistent low-error performance provides reliable data support for safety threshold judgment and process trend analysis of critical safety loops.

4. TMR Fault Tolerance and Full-Coverage Self-Diagnostics

2oo3 Tribus Voting Redundant Mechanism

Adopting standard Tricon triple modular redundant safety architecture, Triconex 3708EN operates three independent internal sampling channels for parallel data acquisition and 2-out-of-3 voting verification. The fault-tolerant logic automatically filters abnormal data caused by single-component failure, electromagnetic interference or circuit anomalies. The redundant design completely eliminates system single-point failures and ensures uninterrupted safety monitoring.

Real-Time Loop Health Self-Monitoring

Continuous background diagnostic routines monitor channel open circuits, signal overrange, loop disconnection and internal circuit anomalies in real time. Front panel status and fault LED indicators provide intuitive on-site equipment inspection. All fault data synchronizes with TriStation software for centralized logging, remote diagnosis and rapid fault positioning, reducing maintenance difficulty and safety loop downtime.

5. Environmental Adaptability and System Integration Advantages

Harsh Industrial Environment Adaptation

Triconex 3708EN operates stably within -40°C to +70°C industrial temperature range, adapting to extreme temperature cycling in enclosed cabinets and outdoor industrial sites. It withstands 5%–95% non-condensing humidity, mechanical vibration and dust accumulation, complying with G3 industrial environmental standards. Rugged industrial-grade packaging ensures long-term stable precision in offshore platforms, chemical workshops and power plants.

Hot-Swap Support and Firmware Compatibility

The module features standard Tricon backplane interface, fully compatible with Tricon v9 and v10 system firmware versions. It supports hot-swap online replacement without suspending safety logic or stopping production operations, minimizing unplanned industrial downtime. Compact 8-channel layout balances high precision and flexible deployment, suitable for small and medium-scale multi-type analog signal monitoring projects.

6. Safety Certification and Target Industrial Applications

Triconex 3708EN complies with IEC 61508 functional safety standards and obtains authoritative SIL3 safety integrity level certification, with CE, UL, ATEX and IECEx hazardous area approvals. Widely applied in petrochemical refining, natural gas processing and power generation industries, the module is dedicated to multi-parameter monitoring of temperature, pressure, flow and liquid level. It supports core safety systems such as ESD emergency shutdown, fire & gas monitoring and burner management systems for critical process safety control.
