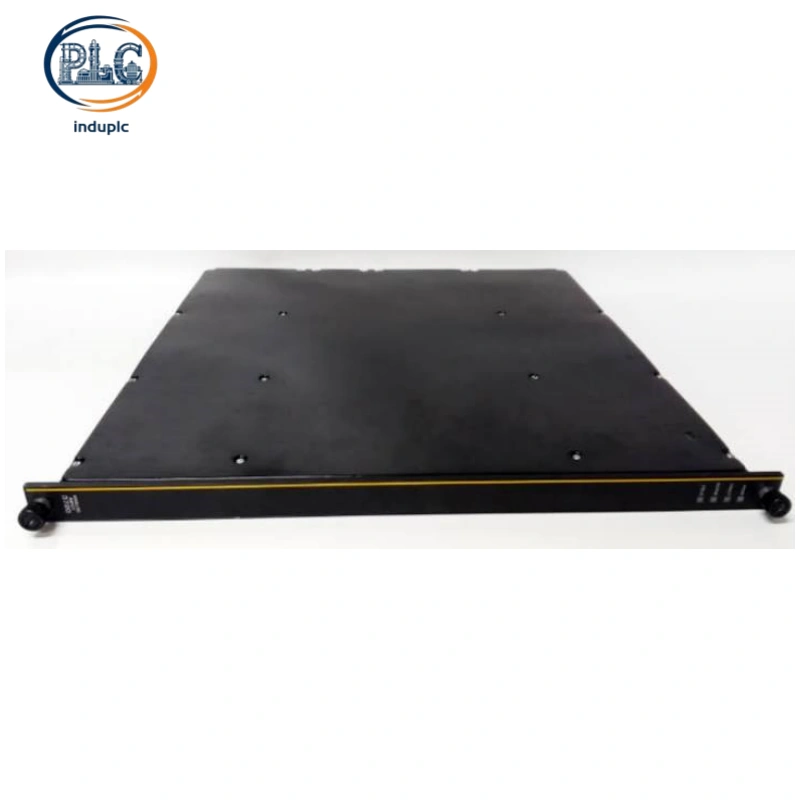

Triconex 3720 32-Channel Differential Analog Input Module, 12/14-Bit Programmable 10ms Fast Update TMR Fault-Tolerant SIS High-Density Acquisition Unit

Triconex 3720 High-Speed 32-Channel Differential Analog Input Module for Tricon SIS Dynamic Process Monitoring

Triconex 3720 is a high-density fast-response analog input module in the Triconex 3700 series, built exclusively for Tricon triple modular redundant safety instrumented systems. Differentiated from conventional low-speed analog modules, Triconex 3720 focuses on dynamic process parameter monitoring with industry-leading 10ms full-channel update speed and dual programmable resolution. Triconex 3720 adopts 32-point differential non-isolated design to achieve high-capacity signal sampling while maintaining excellent noise suppression. Triconex 3720 provides stable high-speed data acquisition guarantee for fast-changing industrial process safety loops.

1. High-Density 32-Point Differential Channel Architecture

Full Differential Non-Isolated Group Layout

Triconex 3720 integrates 32 independent differential analog input channels within a single standard rack slot, maximizing cabinet space utilization for large-scale SIS monitoring systems. The pure differential circuit structure effectively eliminates common-mode noise and ground loop interference compared with single-ended input modules. Grouped channel layout avoids cross-talk between adjacent sampling points, ensuring synchronous and undistorted signal collection for multi-point parallel process monitoring.

Optimized Input Circuit Impedance Design

The module features 140kΩ typical DC off-state input resistance, forming precise impedance matching with mainstream industrial analog transmitters and process sensors. Professional circuit resistance configuration reduces signal attenuation during long-distance field transmission, retaining original signal integrity. Balanced internal impedance design ensures consistent sampling performance across all 32 channels without individual point deviation.

2. Dual Programmable Resolution & Ultra-Fast Sampling Performance

12/14-Bit Switchable Precision Modes

Supporting software-selectable 12-bit and 14-bit analog-to-digital conversion resolution via TriStation configuration, Triconex 3720 enables flexible precision adjustment for diverse industrial scenarios. 12-bit standard mode delivers stable and low-latency sampling for conventional static process monitoring. 14-bit high-precision mode captures subtle dynamic parameter fluctuations, meeting strict accuracy requirements for precision safety threshold judgment and trend analysis.

10ms Full-Channel Synchronous Update Rate

As a core competitive advantage, the module achieves a fixed 10ms ultra-fast unified update cycle for all 32 channels, far exceeding traditional 55ms slow-update analog modules. High-speed synchronous sampling realizes real-time tracking of rapidly changing process parameters such as pressure surge, flow fluctuation and temperature transient variation. Uniform fast response ensures timely data feedback for time-sensitive safety interlock judgment and dynamic process regulation.

3. Wide Voltage Input Range & Strict Accuracy Specifications

Dual Standard Industrial Voltage Ranges

Triconex 3720 supports two mainstream industrial voltage input specifications: 0–5VDC and ±5VDC wide-range differential voltage sampling. The dual-range design covers most standard voltage-type process transmitters in petrochemical, power generation and natural gas industries. Built-in 6% overrange tolerance adapts to transient signal peak fluctuation, avoiding sampling distortion caused by instantaneous parameter surge.

Ultra-Low Full-Scale Measurement Error

With advanced temperature drift compensation and strict factory calibration, the module maintains full-scale measurement error below 0.15% FSR across 0°C to 60°C operating temperature range. Stable low-deviation performance ensures long-term consistent sampling accuracy without frequent recalibration. Reliable precision output provides accurate data support for critical safety loop logic judgment and process state evaluation.

4. TMR Fault Tolerance & Full-Coverage Intelligent Diagnostics

2oo3 Tribus Voting Redundant Logic

Adopting standard Tricon triple modular redundant safety architecture, Triconex 3720 runs three completely independent internal sampling channels for parallel data acquisition and 2-out-of-3 voting verification. The fault-tolerant mechanism automatically filters abnormal data caused by single-component aging, electromagnetic interference or circuit faults. The redundant design eliminates system single-point failures and guarantees uninterrupted high-speed monitoring for critical safety loops.

Real-Time Loop Fault Self-Detection

Continuous background diagnostic routines comprehensively monitor channel open circuits, signal overrange, wiring disconnection and internal circuit anomalies during full-load operation. Intuitive front-panel LED indicators display module operating status and fault alarms for on-site rapid inspection. All fault data synchronizes with TriStation software for centralized logging, remote diagnosis and precise single-point fault positioning, reducing maintenance downtime.

5. Low-Power Design & Harsh Environment Adaptability

6W Ultra-Low Power Consumption

Triconex 3720 adopts optimized low-power circuit architecture with only 6W typical power dissipation under full-load operation. Low energy consumption effectively reduces cabinet heat accumulation and long-term thermal aging of internal components. Stable low-power operation lowers overall system energy consumption and improves long-term operational durability for unattended SIS systems.

Wide-Temperature Industrial Grade Durability

The module operates stably across 0°C to 60°C standard working temperature and tolerates extended storage temperature from -25°C to 85°C. It adapts to 5%–95% non-condensing humidity, 1g mechanical vibration and industrial dust accumulation, complying with strict industrial environmental standards. Rugged component packaging ensures stable high-speed sampling performance in harsh factory and outdoor cabinet environments.

6. Safety Certification & Industrial Application Scenarios

Triconex 3720 complies with IEC 61508 functional safety standards and holds authoritative SIL3 safety integrity level certification, with CE, UL Class I Division 2 and ATEX hazardous area approvals. Widely deployed in petrochemical refining, natural gas processing and power generation facilities, the module specializes in high-density dynamic parameter monitoring for pressure, flow, temperature and liquid level. It serves core safety systems including ESD emergency shutdown, fire & gas monitoring and process interlock control loops requiring fast signal response.
