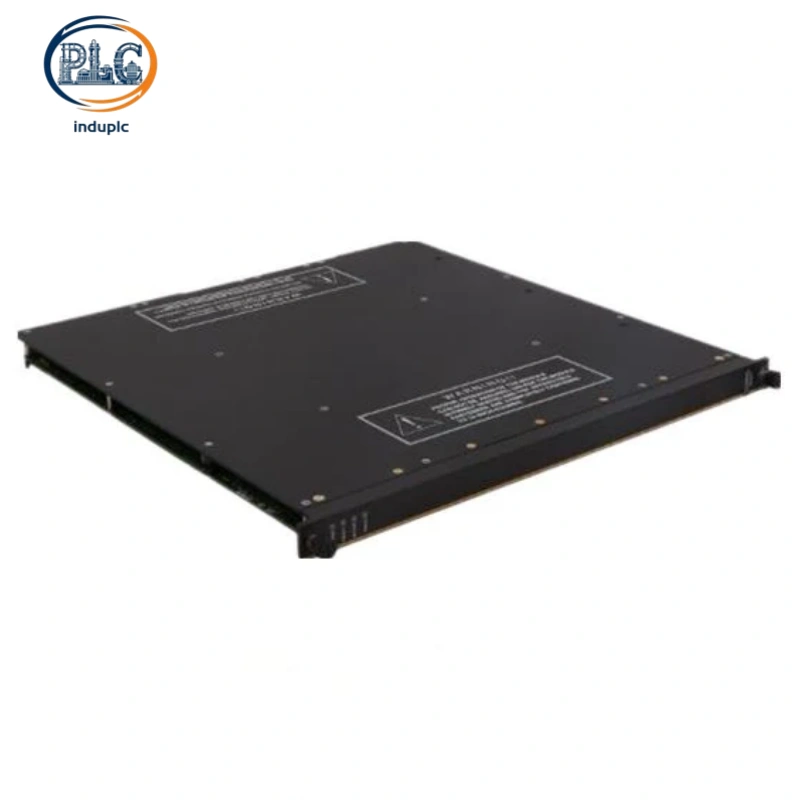

Triconex 3721 32-Channel Differential 4-20mA Analog Input Module, 12/14-Bit Programmable TMR Fault-Tolerant SIS Current Acquisition Unit

Triconex 3721 High-Density 4-20mA Differential Analog Input Module for Tricon SIS Current Loop Monitoring

Triconex 3721 is a professional current-type analog acquisition module in the Triconex 3700 series, uniquely optimized for standard 4-20mA industrial current loop signals. Distinct from the voltage-focused 3720 module, Triconex 3721 specializes in high-density field transmitter current signal collection, covering mainstream process sensor output specifications. Triconex 3721 retains dual programmable resolution and ultra-fast 10ms full-channel update performance while adding industry-grade overvoltage protection and superior common-mode noise suppression. Triconex 3721 ensures reliable long-term current data acquisition for high-density SIS process safety monitoring systems.

1. Dedicated 4-20mA Current Loop Acquisition Architecture

32-Channel DC-Coupled Differential Current Input

Triconex 3721 features 32 fully differential DC-coupled input channels designed exclusively for 4-20mA current loop signals, the universal standard for industrial process transmitters including pressure, temperature, flow and level sensors. The differential current sampling structure eliminates single-ended loop defects and enhances signal stability in long-distance field wiring scenarios. High-density channel integration maximizes single-slot I/O capacity, greatly optimizing cabinet space utilization for large-scale SIS monitoring projects.

Precision Current Loop Matching Design

Built-in professional loop impedance matching circuitry adapts to standard 4-20mA two-wire and three-wire field transmitters without external resistor configuration. The module supports +6% factory-programmed overrange tolerance, capturing transient current signal surges caused by process parameter fluctuations. Optimized current signal filtering eliminates loop jitter, ensuring authentic and stable sampling data for continuous process condition monitoring.

2. Switchable Resolution & Professional Accuracy Parameters

12/14-Bit Software-Configurable Precision Modes

Supporting flexible resolution switching via TriStation software, Triconex 3721 provides two selectable analog-to-digital conversion modes to fit hierarchical industrial monitoring demands. 12-bit standard resolution delivers steady, low-latency sampling for conventional static process parameter monitoring. 14-bit high-resolution mode captures micro current variations, enabling precise tracking of subtle process changes and supporting accurate safety threshold judgment for critical interlock loops.

Consistent Ultra-Low Full-Scale Error

With precise factory calibration and built-in temperature drift compensation algorithms, the module maintains measurement accuracy lower than ±0.15% FSR throughout the 0°C to 60°C standard operating temperature range. Stable low-deviation performance avoids frequent recalibration during long-term unattended operation, ensuring uniform sampling precision across all 32 channels. Reliable accuracy provides credible data basis for SIS logic execution and process trend analysis.

3. Industry-Leading Noise Suppression & Overrange Protection

-85dB High Common-Mode Rejection Capability

Triconex 3721 achieves -85dB common-mode rejection ratio within DC to 100Hz frequency band, effectively filtering ground potential deviation, power frequency interference and common-mode noise in complex industrial current loops. Excellent anti-interference performance guarantees valid current signal extraction even in environments with intensive electromagnetic radiation, preventing data distortion caused by on-site electrical noise.

150VDC/115VAC Heavy-Duty Overvoltage Protection

Equipped with full-range overrange protection circuitry, the module withstands continuous 150VDC or 115VAC transient surge voltage input, protecting internal precision sampling chips from field loop surge damage. This robust protection design prevents module burnout and signal failure caused by wiring faults, static induction or power surge impact, greatly improving on-site operational safety and equipment durability.

4. 10ms Ultra-Fast Synchronous Sampling & TMR Safety Mechanism

Full-Channel High-Speed Update Performance

Maintaining a fixed 10ms unified update cycle for all 32 channels, Triconex 3721 delivers ultra-fast synchronous data refresh capability, far exceeding traditional low-speed analog modules. High-speed current signal tracking realizes real-time response to rapid process changes such as flow surge and pressure transient fluctuation, ensuring timely data feedback for time-sensitive safety interlock and emergency judgment.

2oo3 Tribus Voting Fault-Tolerant Architecture

Adopting standard Tricon triple modular redundant safety design, the module runs three independent internal sampling channels for parallel current signal acquisition and 2-out-of-3 voting verification. The intelligent voting mechanism automatically filters abnormal data triggered by single-component failure, loop interference or hardware anomalies. The redundant framework eliminates system single-point failures and ensures uninterrupted safety monitoring function.

5. Full-Coverage Diagnostics & System Compatibility Advantages

Real-Time Current Loop Health Monitoring

Continuous background diagnostic routines comprehensively detect 4-20mA loop faults including open circuit, broken wiring, signal loss and overrange deviation during full-load operation. Front panel LED indicators intuitively display module running status and fault alarms for on-site quick inspection. All anomaly data synchronizes with TriStation software for centralized logging, remote diagnosis and precise single-point fault positioning, reducing maintenance downtime.

Wide System Version & Environmental Adaptability

Fully compatible with Tricon SIS system firmware V10.2 and above, Triconex 3721 supports hot-swap online replacement without suspending safety logic or stopping production. Operating stably across 0°C to 60°C working temperature and 5%–95% non-condensing humidity, the module withstands industrial vibration and dust accumulation. Low power consumption design minimizes cabinet heat load and long-term component aging for long-cycle unattended operation.

6. Safety Certification & Target Industrial Applications

Triconex 3721 complies strictly with IEC 61508 functional safety standards and holds authoritative SIL3 safety integrity level certification, along with CE, UL Class I Division 2 and ATEX hazardous area approvals. Widely deployed in petrochemical refining, natural gas processing and thermal power plants, the module is dedicated to high-density 4-20mA transmitter signal monitoring. It supports core safety systems such as ESD emergency shutdown, fire & gas detection and process interlock control loops requiring stable current signal acquisition.
