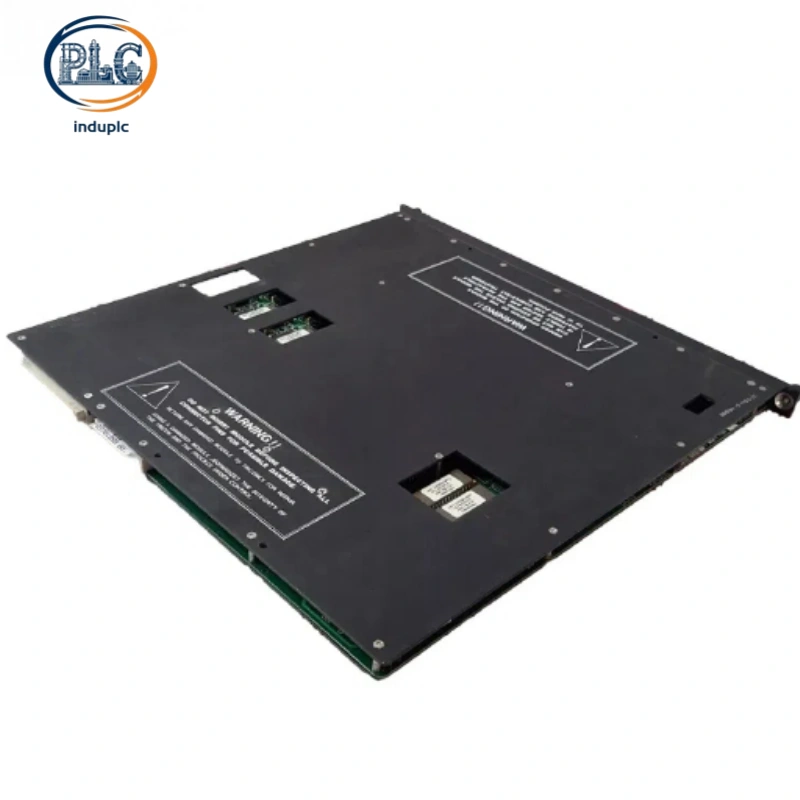

Triconex 4119A serves as a core Enhanced Intelligent Communication Module (EICM) in the Triconex SIS system ecosystem, functionally differentiated from conventional analog and digital I/O modules. Designed exclusively for Tricon triple modular redundant safety instrumented systems, this module focuses on cross-system data transmission, remote configuration and multi-device signal interaction rather than field signal collection or actuator driving. Triconex 4119A integrates multi-type isolated communication ports and industrial universal protocols, building a stable and fault-tolerant data transmission bridge for complex industrial safety control architectures.

1. Multi-Port Hybrid Communication Architecture & Isolation Protection

4-In-1 Configurable Serial Port Compatibility

Triconex 4119A is equipped with four universal configurable serial ports, flexibly supporting three mainstream industrial serial communication standards: RS-232, RS-422 and RS-485. Engineers can switch port modes via software configuration according to on-site device interface specifications, adapting to different types of PLCs, HMIs, field instruments and third-party industrial equipment. The multi-mode port design eliminates the need for multiple dedicated communication modules, greatly simplifying SIS system communication architecture layout and reducing equipment spare parts costs.

Isolated Parallel Port & 500VDC Dielectric Protection

In addition to serial ports, the module reserves one independent isolated Centronics parallel port for special industrial data transmission and device docking scenarios. All communication ports adopt professional 500VDC reinforced electrical isolation design, forming complete electrical separation between external communication equipment and internal SIS core system. The high-strength isolation barrier effectively blocks external surge interference, ground loop deviation and signal crosstalk, preventing external equipment faults from penetrating and affecting the stable operation of the safety instrumented system.

2. Dual Industrial Protocol Support & Complete Data Functions

TriStation & Modbus Dual Protocol Compatibility

Triconex 4119A natively supports two core industrial protocols, covering SIS system dedicated debugging and universal industrial communication scenarios. The TriStation protocol realizes one-stop system configuration, program downloading, online debugging and real-time data monitoring for Tricon SIS systems. The standard Modbus protocol supports mainstream industrial register read-write functions, including coil status reading, input status acquisition, holding register and input register data interaction, realizing seamless data interconnection between Tricon SIS and external automation systems.

Full Modbus Function Code Coverage

The module integrates complete Modbus functional logic, supporting 01 to 05 core function codes and extended data interaction commands. It can stably execute remote data reading, parameter modification and real-time signal transmission tasks, meeting the full-cycle data interaction requirements of industrial monitoring, parameter adjustment and fault data uploading. Standard protocol compatibility ensures excellent versatility in multi-brand and multi-type hybrid industrial control systems.

3. TMR Fault-Tolerant Mechanism & Redundant Communication Reliability

Triple Modular Redundant Communication Processing

Consistent with Tricon SIS core safety standards, Triconex 4119A adopts standard TMR triple modular redundant architecture. Three independent internal processing units perform parallel analysis and verification on communication data, and the 2oo3 voting mechanism filters abnormal data packets, signal distortion and transmission errors caused by single hardware failure or external interference. The redundant design completely eliminates single-point communication failures and ensures uninterrupted data transmission of critical safety systems.

Dual-Module Redundant Deployment Support

The Tricon high-density controller platform allows a maximum of two 4119A EICM modules to be deployed simultaneously for hot-standby redundant communication configuration. Dual-module backup realizes automatic switching during single module failure or port abnormality, avoiding system communication interruption and data loss. This redundant deployment mode greatly improves the stability and continuity of long-term unattended operation of industrial safety systems.

4. Intelligent Diagnostics & System Operation Advantages

Real-Time Communication Status Self-Monitoring

Built-in intelligent diagnostic routines continuously monitor port connection status, data transmission error rate, protocol matching status and internal module operating parameters in real time. Front panel LED indicators intuitively display communication link status and fault alarms, supporting rapid on-site troubleshooting. All abnormal data synchronizes with TriStation software for centralized logging and remote diagnosis, shortening communication fault maintenance downtime.

Hot-Swap & Flexible System Expansion

Triconex 4119A supports online hot-swap replacement without shutting down the SIS system or suspending safety logic operation, minimizing unplanned industrial production downtime. Adopting standard Tricon chassis slot interface, the module is perfectly compatible with mainstream Tricon system firmware versions, supporting flexible communication function expansion and legacy system renovation for old industrial projects.

5. Harsh Environment Adaptability & Safety Certification

Triconex 4119A operates stably within -40°C to +70°C wide industrial temperature range, adapting to extreme temperature changes, dust accumulation and 5%–95% non-condensing humidity in industrial sites. It passes strict EMC electromagnetic compatibility tests, resisting high-frequency interference and complex electrical noise in industrial environments. The module complies with IEC 61508 functional safety standards and obtains SIL3 safety integrity level certification, along with UL, CE and ATEX hazardous area approvals, fully meeting safety deployment requirements for high-risk industrial scenarios.

6. Core Industrial Application Scenarios

As a dedicated communication core module of Tricon SIS system, Triconex 4119A is widely deployed in petrochemical refining, natural gas processing, thermal power generation and offshore platform safety control systems. It is mainly used for data interconnection between SIS and DCS/HMI monitoring systems, remote system debugging and program maintenance, cross-device signal transmission of safety loops, and data uploading of ESD emergency shutdown and fire & gas monitoring systems, ensuring efficient and stable data interaction of the entire safety control system.
