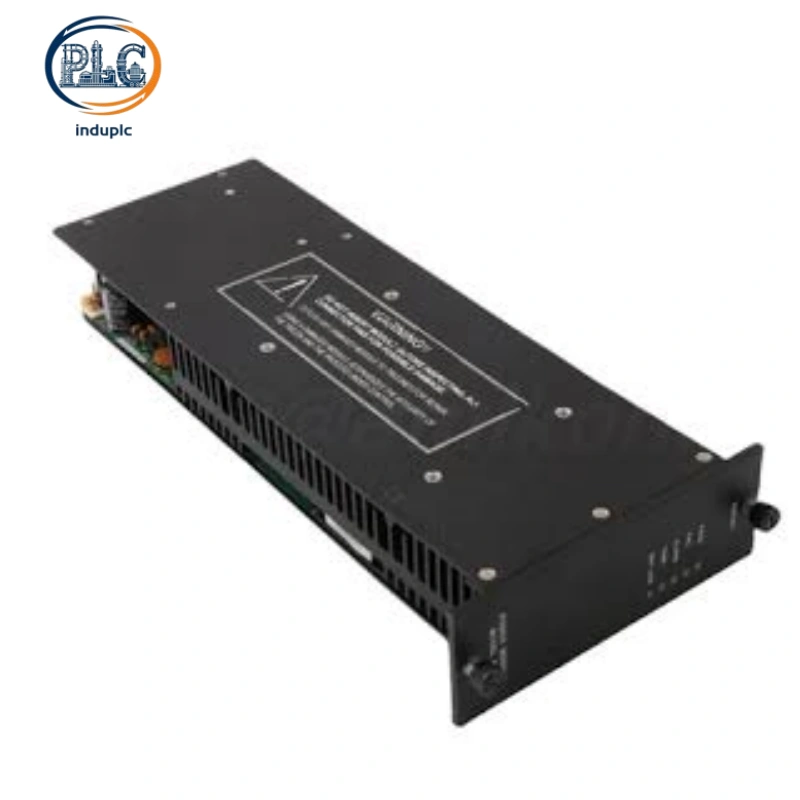

Triconex 8312 230VAC Redundant Power Supply Module, 175W Triple Isolated DC Output & 20ms Hold-Up TMR SIS Power Unit

Triconex 8312 230VAC Triple Isolated DC Output Fault-Tolerant Power Supply Module for Tricon SIS Systems

Triconex 8312 is a specialized AC-input power module in the Triconex 8300 power family, featuring clear functional differentiation from 8300 universal AC/DC, 8310 multi-voltage and 8311 pure DC models. Optimized exclusively for 230VAC industrial grid environments, this module integrates triple isolated DC output channels and unique power hold-up capability, solving multi-rail power supply demands and transient voltage drop risks in complex SIS chassis. Adhering to standard Tricon TMR redundant safety design and industrial-grade electrical protection, it provides multi-channel stable power guarantee for high-reliability safety instrumented system operation.

1. Dedicated 230VAC Wide-Range Input Design

Fixed AC Industrial Grid Adaptation

Triconex 8312 adopts a fixed 230VAC nominal input specification with a wide adaptive range of 187–253VAC and 47–63Hz frequency coverage, fully matching European and Asian standard industrial AC power grids. Different from multi-switchable voltage modules, the dedicated AC input circuit simplifies internal conversion structure, improves power conversion efficiency and enhances long-term operational stability. It eliminates compatibility risks caused by voltage mode switching errors, perfectly adapting to factory sites with unified 230VAC power distribution standards.

240W Minimum System Power Matching

The module supports a minimum 240W system power configuration, fully meeting the full-load startup and continuous operation requirements of dense Tricon chassis equipped with multiple controllers, I/O modules and communication units. Professional power load matching design avoids insufficient power margin during peak system operation, ensuring stable voltage and current output under dynamic load changes of SIS safety loops.

2. Unique Triple Isolated DC Output Architecture

Multi-Rail Independent Power Distribution

As the core differentiated advantage of 8312, the module provides three completely isolated DC output channels for hierarchical power supply of SIS internal equipment: 5VDC/20A for core logic circuit power supply, 24VDC/8A for field I/O equipment power supply, and 24VDC/1A for auxiliary circuit power supply. The multi-channel isolated design realizes physical electrical separation between logic power, field power and auxiliary power, effectively eliminating crosstalk and interference between different power rails and avoiding cross-domain fault diffusion.

Precision Stabilized Output Quality

Each DC output channel adopts independent voltage stabilization and filtering circuits, achieving ultra-low output deviation and ultra-clean power quality. The isolated power rail design ensures that field loop electrical anomalies will not affect the operation of core controller logic circuits, greatly improving the overall anti-interference ability and operational safety of the SIS system.

3. 175W Rated Power & Transient Hold-Up Function

Stable 175W Full-Load Continuous Output

Triconex 8312 maintains a steady 175W rated power output at 60°C industrial operating temperature, with excellent high-temperature load capacity. It stably supports long-term full-load operation of medium and high-density Tricon chassis, balancing system power demand and energy consumption efficiency. The rigorous power derating design ensures no performance attenuation in high-temperature cabinet heat accumulation environments.

20ms Minimum Power Hold-Up & 14.8V Backup Support

Equipped with a unique transient power retention mechanism, the module provides a minimum 20ms power hold-up time during instantaneous power grid drops or brief power failures, effectively avoiding sudden system reset and logic interruption caused by transient power anomalies. It supports 14.8V backup power output matching, cooperating with field backup power units to improve system-level power fault tolerance, which is not available in conventional 8300 series basic power modules.

4. Industrial-Grade Protection & Harsh Environment Adaptability

2.5A Time-Delay Fuse & Full-Circuit Protection

Built-in 2.5A time-delay fuse provides accurate overcurrent protection, effectively avoiding fuse misoperation caused by instantaneous current surge during system startup. It integrates multiple protection mechanisms including overvoltage protection, short-circuit isolation and overheating power limiting. When facing field load short circuit, overload and over-temperature anomalies, the module quickly locks faulty output to protect core SIS precision equipment from electrical damage.

-40°C to +70°C Ultra-Wide Temperature Durability

The module supports stable operation in an ultra-wide industrial temperature range from -40°C to +70°C, adapting to extreme temperature changes in outdoor field cabinets and high-temperature workshop environments. It resists 5%–95% non-condensing humidity, industrial dust deposition and mechanical vibration, with rugged industrial-grade packaging and anti-aging circuits to ensure 24/7 long-term unattended stable operation.

5. TMR Redundant Deployment & Intelligent Diagnostics

Dual-Module Hot-Standby Redundant Operation

Complying with Tricon TMR safety standards, Triconex 8312 supports dual-module parallel hot-standby redundant deployment. Two independent 8312 power units automatically switch seamlessly in case of single module failure, overheating or output abnormality, completely eliminating power single-point failures and ensuring zero interruption of SIS safety logic and field monitoring functions.

Real-Time Monitoring & Hot-Swap Maintenance

Continuous background diagnostics monitor input voltage, multi-channel output status, internal temperature and load conditions in real time. Front panel LED indicators intuitively display operating and fault status for rapid on-site troubleshooting. The module supports online hot-swap replacement without system shutdown or safety logic suspension, greatly reducing unplanned industrial maintenance downtime.

6. Safety Certification & Target Application Scenarios

Triconex 8312 meets IEC 61508 functional safety standards and SIL3 system-level safety integrity requirements, with CE, UL and CSA authoritative certifications. It is widely deployed in medium and high-density Tricon SIS main chassis and remote expansion racks in petrochemical, natural gas processing, thermal power generation and offshore platform industries. It is especially suitable for 230VAC grid sites requiring multi-channel isolated power supply and transient power failure protection, providing reliable power support for core systems such as ESD emergency shutdown and fire & gas monitoring.
