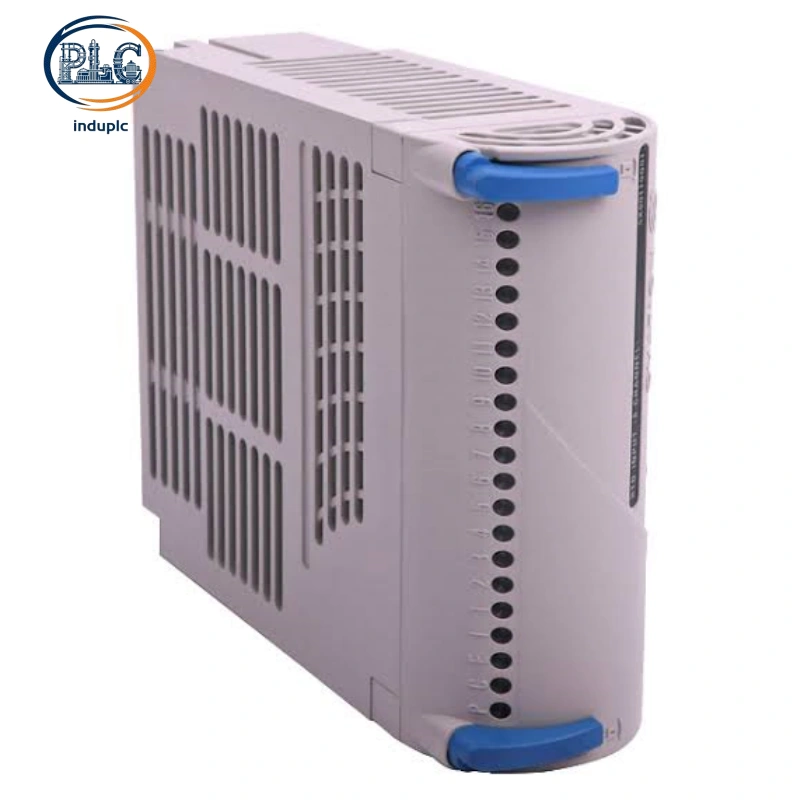

Westinghouse 1C31241G01 High-Speed Analog Input Module, 14-Bit Isolated 8-Channel Ovation DCS Process Sampling Unit

Westinghouse 1C31241G01 14-Bit High-Speed 8-Channel Analog Input Module for Ovation DCS Precision Process Sampling

Westinghouse 1C31241G01 delivers high-resolution analog signal sampling for Ovation distributed control systems. The module captures real-time voltage and current process signals from field transmitters and sensors, converting physical parameters into standard digital data for system regulation and monitoring. Westinghouse 1C31241G01 maintains exceptional sampling precision and speed for dynamic industrial process loops.

1. Multi-Rate High-Speed Sampling Mechanism

Dual-Speed Scanning Flexibility

Westinghouse 1C31241G01 features configurable dual scanning rates to match diverse process monitoring demands. The module supports medium-speed 16/20 scans per second and high-speed 50/60 scans per second operation modes. Adjustable sampling frequency adapts to both steady-state process tracking and fast transient parameter change capture for critical industrial loops.

14-Bit High-Resolution Conversion

Integrated 14-bit analog-to-digital conversion circuitry enhances signal resolution for subtle process variation detection. High-precision conversion minimizes full-scale signal deviation and preserves minor parameter fluctuations. Advanced digital processing ensures authentic data output for precise automatic loop regulation and trend analysis.

2. Independent Channel Isolation & Signal Purity

Per-Channel Galvanic Isolation Design

Every channel on Westinghouse 1C31241G01 adopts individual galvanic isolation barriers to eliminate cross-channel interference. Isolated circuit structure blocks ground loop currents and stray field voltage from penetrating core module circuits. Independent channel protection prevents single-point anomalies from affecting overall sampling integrity.

Built-In Industrial Noise Filtering

Optimized hardware filtering suppresses high-frequency electromagnetic noise and power-frequency interference common in factory environments. Precision signal conditioning circuits remove transient jitter without distorting valid process waveforms. Enhanced signal purification delivers stable data output in electrically complex industrial workshops.

3. Versatile Analog Signal Compatibility

Universal Voltage & Current Signal Support

Westinghouse 1C31241G01 accommodates standard industrial analog signal ranges including common voltage and current inputs. Flexible signal configuration matches temperature, pressure, flow and level transmitter outputs widely used in process industries. Multi-signal adaptability eliminates need for dedicated specialized sampling modules in mixed-signal field layouts.

Cold Junction Compensation Compatibility

The module supports auxiliary cold junction compensation integration for thermocouple signal acquisition scenarios. Adaptive temperature calibration corrects ambient temperature drift during thermal parameter sampling. Compatibility with temperature sensing devices expands usable range in thermal power and heating process control systems.

4. Industrial-Grade Environmental & Operational Stability

Wide Temperature Endurance

Westinghouse 1C31241G01 operates reliably across extended industrial temperature ranges, fitting enclosed control rooms and ventilated field cabinets. Rigid industrial components resist performance attenuation under continuous load operation and temperature cycling. Consistent electrical properties ensure long-term stable sampling accuracy year-round.

Vibration & Dust Resistant Construction

Reinforced internal circuit fixation prevents component displacement under mechanical vibration. Sealed modular housing blocks industrial dust and non-condensing humidity accumulation. Rugged mechanical design supports 24/7 unattended operation in rigorous production environments.

5. Streamlined DCS Integration & Maintenance

Native Ovation Bus Protocol Matching

Westinghouse 1C31241G01 integrates factory-calibrated firmware for seamless Ovation DCS bus communication. Standard slot form factor enables direct plug-in installation with automatic system recognition. Zero complex manual configuration accelerates system expansion, module replacement and on-site commissioning.

Visual Channel Status Diagnostics

Dedicated onboard LED indicators display real-time power status, bus communication health and individual channel activity. Intuitive visual feedback simplifies daily equipment inspection and rapid fault localization. Clear status indication cuts troubleshooting duration and routine maintenance labor costs.

6. Practical Industrial Application Value

Westinghouse 1C31241G01 serves core precision monitoring links in thermal power generation, petrochemical processing and industrial manufacturing automation. The module undertakes high-speed analog signal collection for dynamic process parameter tracking, loop regulation optimization and equipment condition monitoring, underpinning stable and efficient DCS system operation.
