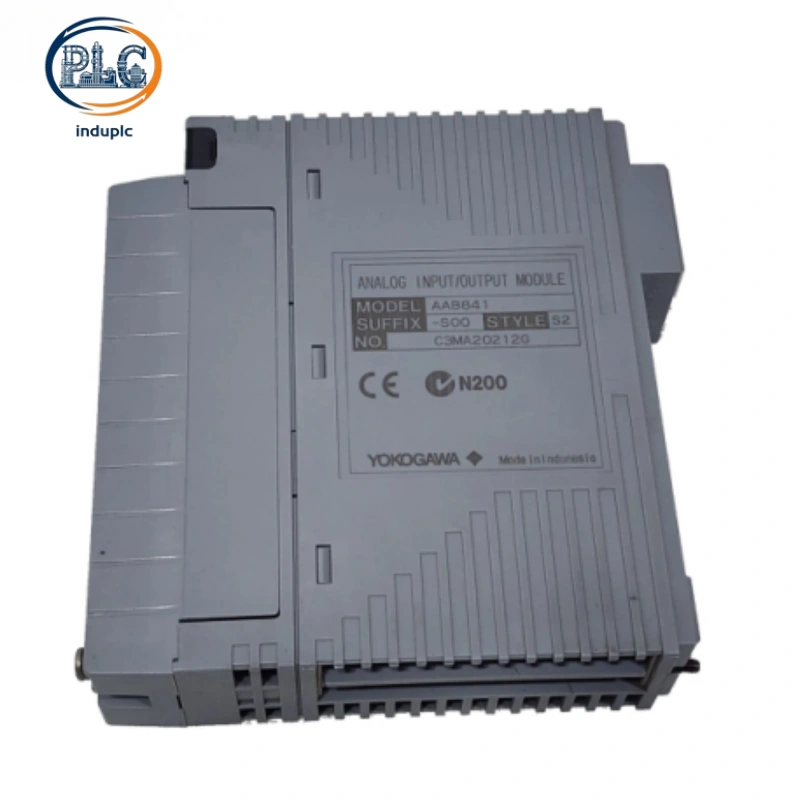

Yokogawa AAB841‑S00 Analog I/O Module, 8-In/8-Out 1-5V/4-20mA Non-Isolated FIO Unit for CENTUM VP DCS

Yokogawa AAB841‑S00 8I/8O Dual Analog Input/Output FIO Module for CENTUM VP DCS Process Loop Control

1. Dual I/O Functional Integration of Yokogawa AAB841‑S00

Mixed Voltage Input and Current Output Support

Yokogawa AAB841‑S00 features dedicated dual signal processing capabilities for industrial analog loops. The module receives 1-5V DC voltage signals from field measurement instruments and outputs standard 4-20mA current signals for actuator control. Dual signal specification matching covers most conventional process regulation loops in industrial plants.

Balanced 8-Input 8-Output Channel Layout

Yokogawa AAB841‑S00 integrates eight input channels and eight output channels within one standard FIO slot. Symmetrical channel configuration supports simultaneous parameter collection and equipment actuation. Combined I/O design reduces total module quantity and simplifies internal cabinet wiring layout.

2. Precision Signal Conversion Performance

High-Accuracy Analog Signal Processing

This FIO module maintains precise signal conversion under standard operating conditions. Input accuracy reaches ±4 mV while output accuracy stabilizes at ±48 μA at room temperature. Strict factory calibration eliminates signal deviation during long-term cyclic operation and ensures consistent data authenticity.

Fast Response Cycle for Dynamic Process Loops

Yokogawa AAB841‑S00 delivers 100 ms input step response and 40 ms output step response for real-time process adjustment. A unified 10 ms full-channel data update cycle synchronizes all sampling and output actions. Fast signal feedback adapts to dynamic load changes in continuous production processes.

3. Standardized DCS Platform Compatibility

Native CENTUM VP and CS3000 System Adaptation

Yokogawa AAB841‑S00 fits FIO backplane standards for Yokogawa CENTUM VP and CS3000 DCS systems. Built-in protocol matching enables automatic bus recognition after installation. No third-party converters or program modifications are needed for system integration.

System-Powered Low-Consumption Operation

The module adopts 24VDC system power supply with fixed low power consumption parameters. Stable power operation avoids voltage fluctuation interference from external power sources. Optimized circuit design reduces heat generation during 24/7 continuous operation.

4. Industrial-Grade Environmental Reliability

Wide Temperature Operational Tolerance

Hardware assembly supports stable operation across 0°C to 60°C standard industrial temperature ranges. Qualified component screening prevents performance drift under cabinet heat accumulation and ambient temperature variation. Storage tolerance covers -40°C to 85°C for safe transportation and standby placement.

Durable Mechanical and Structural Design

Compact lightweight structure fits standard FIO rack dimensions for unified cabinet arrangement. Reinforced internal circuitry resists minor on-site mechanical vibration. Screw terminal design ensures stable wiring connection for long-term field operation.

5. Industrial Application Coverage

Closed-Loop Process Regulation

Yokogawa AAB841‑S00 serves temperature, pressure and flow closed-loop control scenarios. Synchronized I/O processing realizes real-time parameter collection and valve or regulator adjustment. Coordinated signal actions stabilize continuous production process parameters.

DCS System Upgrade and Replacement

Legacy CENTUM series DCS sites adopt this module for equipment renewal and function expansion. Unified FIO hardware standards ensure seamless compatibility with existing cabinet structures. Field upgrades complete without large-scale system downtime.

General Factory Automation Monitoring

Energy, chemical and manufacturing plants deploy the unit for routine process monitoring. Reliable signal interaction supports data trending, threshold alarming and logic interlock execution. The module meets basic and mainstream industrial automation control demands.

6. Core Advantages of Choosing Yokogawa AAB841‑S00

Integrated I/O Saves Cabinet Resources

Combined input and output functions replace separate single-function modules in traditional configurations. Integrated hardware design reduces rack space occupation and wiring complexity. Optimized layout lowers overall system deployment costs.

Verified Long-Term Operational Stability

Mature circuit design undergoes strict industrial reliability testing for DCS application scenarios. Standardized production processes guarantee consistent product quality. Low failure rate characteristics reduce daily maintenance workload.

Simplified On-Site Deployment

Pre-calibrated factory parameters eliminate repeated on-site debugging. Plug-and-play FIO structure shortens installation and replacement cycles. Simple deployment logic adapts to various field engineering environments.
