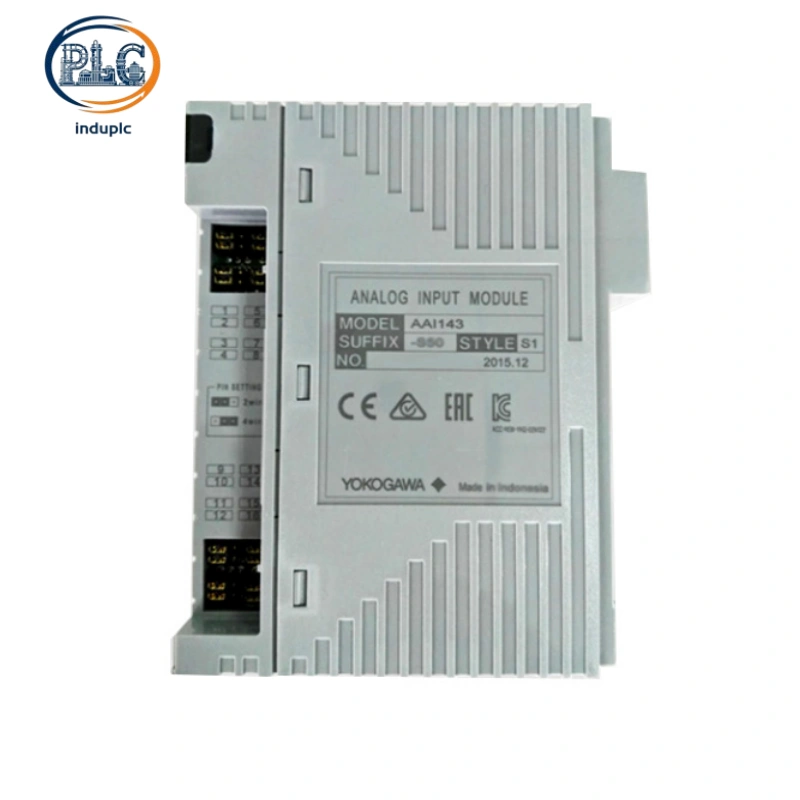

Yokogawa AAI143‑H53 Analog Input Module, 16-Channel Fully Isolated 4-20mA HART FIO Card for CENTUM VP DCS

Yokogawa AAI143‑H53 16-Channel Fully Isolated HART Analog Input FIO Module for Precision DCS Process Acquisition

1. Full Isolation Anti-Interference Hardware Design

Channel-to-Channel and System Galvanic Isolation

Yokogawa AAI143‑H53 adopts comprehensive isolation architecture for all sampling channels. Independent galvanic barriers separate each field loop and isolate field circuits from internal DCS system circuitry. Full isolation structure blocks ground loop currents, industrial surge voltages and cross-channel signal crosstalk effectively.

High Withstand Voltage Safety Performance

Yokogawa AAI143‑H53 supports 1500V AC withstand voltage between field input and system terminals for one-minute duration. Enhanced insulation design prevents electrical breakdown and signal distortion under complex electromagnetic environments. Robust electrical protection secures long-term signal integrity in heavy industrial sites.

2. High-Resolution Precision Sampling Capacity

16-Bit Ultra-Fine Signal Conversion

This FIO module integrates 16-bit high-precision ADC chips for ultra-fine analog signal conversion. High-resolution processing captures subtle process parameter changes that ordinary modules fail to identify. Accurate data output supports refined process analysis and precise closed-loop regulation.

Low Drift and Consistent Accuracy

Yokogawa AAI143‑H53 maintains stable full-scale accuracy within ±0.1% FS under standard operating conditions. Optimized temperature drift control limits parameter deviation to ±16µA per 10°C ambient change. Strict factory calibration eliminates data fluctuation caused by long-term temperature variation.

3. Multi-Signal and HART Intelligent Compatibility

Diversified Field Signal Adaptation

Yokogawa AAI143‑H53 supports multiple industrial signal types including standard 4-20mA current signals and 0-10V voltage signals. The module also matches thermocouple and RTD sensor signal characteristics via channel configuration. Multi-signal flexibility unifies diverse field instrument docking standards.

Bidirectional HART Communication Function

Built-in native HART protocol parsing enables bidirectional data interaction with smart transmitters and field instruments. The module acquires real-time process values while reading device calibration data, operating status and fault codes. Intelligent data collection supports on-site predictive maintenance and equipment health management.

4. Efficient System Response and Configuration Flexibility

Fast 40ms Full-Channel Update Cycle

Yokogawa AAI143‑H53 executes full-channel data refresh within 40ms, ensuring rapid response to dynamic process changes. High-frequency data update eliminates monitoring lag in fluctuating production loops. Timely signal feedback guarantees accurate DCS logic judgment and alarm triggering.

Independent Channel Parameter Setting

Each channel supports independent 2-wire and 4-wire transmitter mode switching via pin configuration. Flexible channel setting adapts to mixed instrument types on the same site. Individual channel programming avoids overall module parameter adjustment and improves configuration efficiency.

5. Industrial-Grade Environmental and Mechanical Stability

Wide Operational Temperature Range

Yokogawa AAI143‑H53 operates steadily from -20°C to +60°C, adapting to temperature changes in indoor control cabinets and semi-open field enclosures. Screened industrial components prevent performance attenuation under continuous full-load operation. Reliable thermal tolerance suits year-round industrial production conditions.

Durable Structural and Humidity Resistance

Reinforced internal circuit fixation withstands minor mechanical vibration from production equipment operation. The module tolerates up to 95% non-condensing relative humidity without circuit dampening or signal distortion. Rugged mechanical design supports 24/7 unattended continuous operation.

6. Industrial Application Scenarios

High-Precision Process Loop Monitoring

Chemical, petrochemical and power plants deploy Yokogawa AAI143‑H53 for critical parameter monitoring. High-resolution sampling tracks pressure, flow, temperature and liquid level changes in core production loops. Stable accurate data ensures precise process control and product quality stability.

Smart Instrument System Centralized Acquisition

Production sites equipped with large-scale HART smart instruments adopt this module for centralized signal collection. HART diagnostic data assists maintenance teams in locating instrument faults and verifying calibration status. Intelligent monitoring reduces unplanned equipment downtime.

High-Reliability DCS System Renovation

Legacy CENTUM VP system upgrade projects select Yokogawa AAI143‑H53 for hardware replacement. Standard FIO form factor and native protocol compatibility ensure seamless docking with existing cabinet backplanes. Plug-and-play installation shortens project commissioning cycles.

7. Core Advantages of Selecting Yokogawa AAI143‑H53

Full Isolation Eliminates System Interference Risks

Different from non-isolated modules, full-channel isolation avoids cross-talk and ground loop interference in dense wiring environments. Single-channel faults remain confined without affecting other monitoring points. Isolation design greatly improves overall DCS system operational stability.

High-Density Design Optimizes Cabinet Resources

16-channel high-density integration concentrates massive monitoring points in a single FIO slot. Compact layout reduces total module quantity and rack space occupation. Optimized cabinet arrangement lowers overall system deployment and wiring costs.

Multi-Function Compatibility Reduces Spare Part Types

Universal signal support and HART integration replace multiple single-function modules. Unified hardware model simplifies on-site spare part inventory management. Versatile performance adapts to diverse monitoring demands of complex industrial projects.
