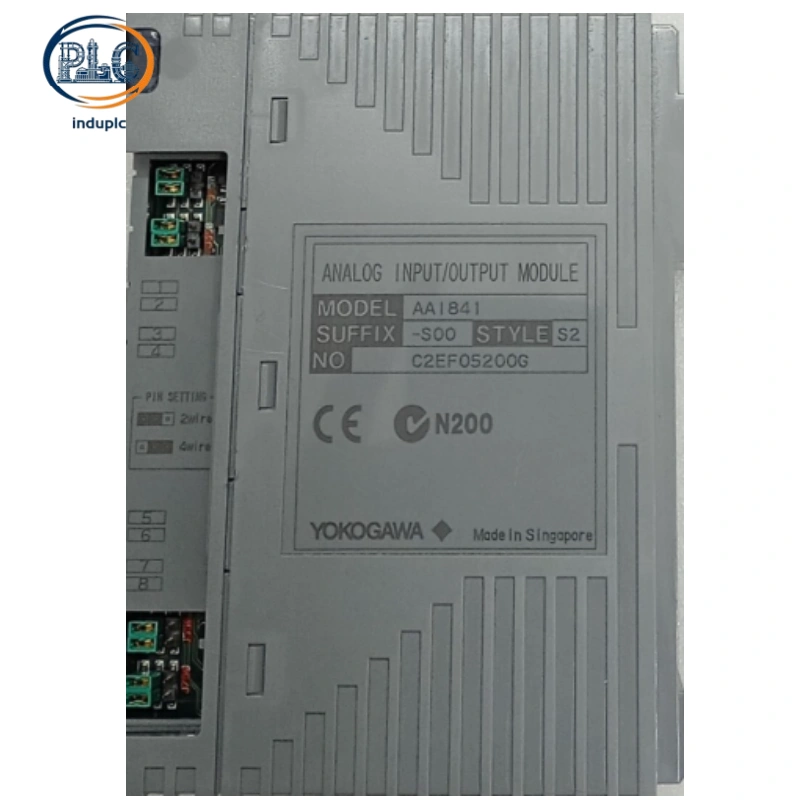

Yokogawa AAI841‑S00 Analog I/O Module, 8I/8O Multi-Range 4-20mA/1-5V Non-Isolated FIO Card for CENTUM CS3000 & VP DCS

Yokogawa AAI841‑S00 8I/8O Multi-Signal Analog I/O FIO Module for CENTUM Series DCS General Process Control

1. Multi-Range Signal Compatibility & Precision Metrics

Dual Current and Voltage Input Support

Yokogawa AAI841‑S00 features flexible multi-range signal reception unavailable in single-spec I/O cards. The module accepts standard 4-20mA DC current signals and 1-5V DC voltage signals from field transmitters, covering most conventional industrial sensing devices. Universal signal adaptation eliminates dedicated module matching for mixed field instrument layouts.

Industry Standard Conversion Accuracy

Yokogawa AAI841‑S00 maintains consistent ±0.1% full-scale accuracy for both input and output channels. Input precision reaches ±16μA for current loops and ±4mV for voltage loops, while output accuracy stabilizes at ±48μA. Strict factory calibration restricts temperature drift within ±0.1% per 10°C ambient change for sustained precision.

High-Resolution 16-Bit Signal Processing

This FIO module integrates 16-bit high-resolution conversion chips for refined signal identification. High-grade resolution captures subtle process parameter variations in steady-state production loops. Precise data conversion ensures reliable foundation for DCS trend analysis and closed-loop regulation logic.

2. Optimized Response Speed & Electrical Parameters

10ms High-Speed Full-Channel Update

Yokogawa AAI841‑S00 completes full-channel data refresh within 10ms, supporting real-time tracking of dynamic process fluctuations. Fast update cycle synchronizes input sampling and output actuation for coordinated loop operation. Timely signal response avoids regulation lag in continuous production systems.

Standardized Input Impedance Matching

Yokogawa AAI841‑S00 adopts tailored input impedance parameters for stable field wiring adaptation. The unit provides 250Ω standard impedance for 4-20mA current input loops, matching mainstream industrial transmitter output characteristics. Professional impedance design prevents signal attenuation and data distortion during long-distance transmission.

Controlled Step Response Performance

The module delivers 100ms input step response and 40ms output step response for balanced dynamic regulation. Graded response speed adapts to different process loop sensitivity requirements. Stable signal transition eliminates sudden parameter jitter during equipment adjustment.

3. Cross-Platform DCS System Compatibility

Dual CENTUM Platform Adaptation

Yokogawa AAI841‑S00 supports seamless docking with both CENTUM CS3000 and CENTUM VP DCS systems. Native bus protocol matching eliminates communication faults across legacy and upgraded platforms. Dual-platform compatibility suits old system renovation and new project unified deployment.

Standard FIO Backplane Integration

Yokogawa AAI841‑S00 complies with universal FIO rack and backplane specifications. Unified mechanical and electrical interfaces enable direct plug-in installation. Automatic system identification reduces manual configuration workload during module replacement and system expansion.

4. Industrial-Grade Environmental & Structural Stability

Ultra-Wide Operating Temperature Tolerance

Yokogawa AAI841‑S00 operates reliably across -20°C to +70°C industrial temperature range. Screened electronic components resist performance drift under extreme cabinet heat or low-temperature startup conditions. Broad thermal coverage adapts to complex indoor and semi-open industrial deployment environments.

Lightweight Durable Mechanical Design

With a lightweight 0.3kg compact structure, the module fits dense cabinet rack layout standards. Reinforced internal circuit fixation withstands minor mechanical vibration from on-site production equipment. Non-condensing humidity resistance supports long-term 24/7 unattended operation.

5. Targeted Industrial Application Scenarios

General Process Closed-Loop Control

Petrochemical, power and manufacturing plants deploy Yokogawa AAI841‑S00 for conventional flow, pressure and temperature control loops. Synchronized 8I/8O signal processing realizes real-time parameter collection and actuator adjustment. Stable loop operation maintains consistent production process parameters.

Legacy DCS System Upgrade & Replacement

CENTUM CS3000 system renovation projects prioritize Yokogawa AAI841‑S00 for hardware renewal. Cross-platform compatibility ensures seamless transition from old to new DCS configurations. Plug-and-play installation minimizes project downtime and debugging costs.

Cost-Effective Mass I/O Deployment

Medium and large-scale DCS I/O expansion projects adopt this module for economical signal configuration. Integrated dual I/O functions reduce total hardware quantity and cabinet occupation. Balanced performance and cost suit large-scale standardized industrial automation deployment.

6. Unique Advantages of Yokogawa AAI841‑S00

Multi-Signal Flexibility Reduces Hardware Types

Dual current and voltage signal support replaces dedicated single-range I/O modules. Versatile signal compatibility unifies field instrument docking standards. Simplified hardware model classification lowers spare part inventory management pressure.

Cross-Platform Compatibility Improves Project Versatility

Dual support for CS3000 and VP systems extends module application scope across new and old industrial sites. Unified deployment standards reduce engineering learning costs and construction errors. Flexible platform adaptation improves project implementation efficiency.

High Cost-Performance for Standard Industrial Loops

Non-isolated industrial-grade design delivers reliable performance at optimized procurement costs. Stable long-term operation and low failure rate reduce post-deployment maintenance investment. High cost-performance ratio makes the module ideal for large-scale standard loop configuration.
