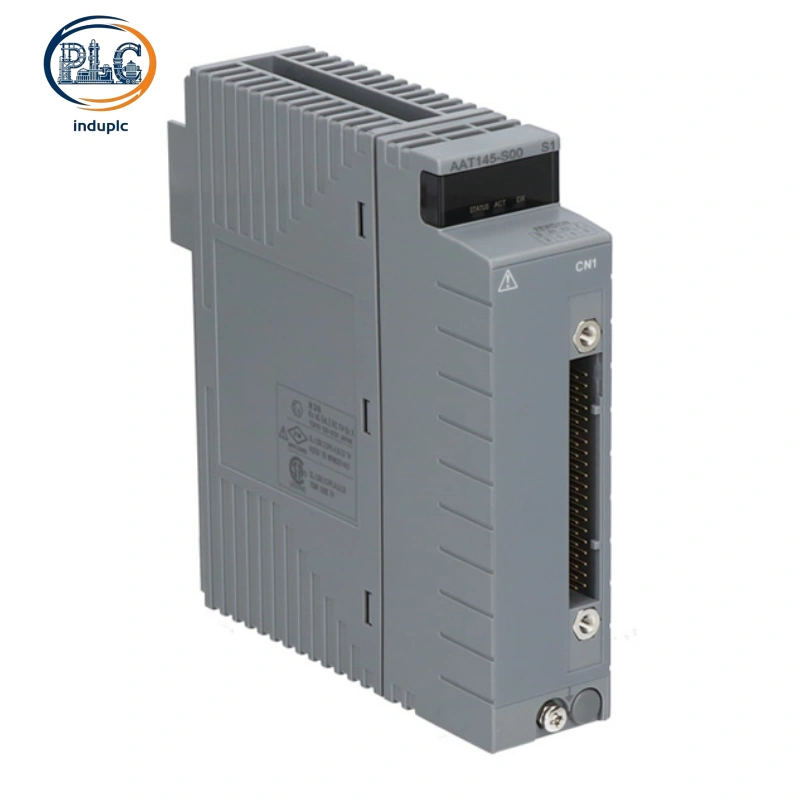

Yokogawa AAT145‑S00 TC/mV Input Module, 16-Channel Fully Isolated SIL 3 Certified FIO Card for CENTUM VP DCS High-Reliability Thermal Monitoring

Yokogawa AAT145‑S00 16-Channel Fully Isolated SIL3-Certified TC/mV FIO Input Module for Safety-Critical Industrial Thermal Monitoring

1. Dedicated TC/mV Dual Signal Acquisition Capability

Multi-Type Thermocouple Compatibility

Yokogawa AAT145‑S00 supports comprehensive industry-standard thermocouple types compliant with IEC and JIS specifications, including J, K, E, B, R, S, T and N models. Wide TC type coverage adapts to high, medium and low-temperature industrial detection scenarios across chemical, power and petrochemical plants. Each channel supports independent signal type configuration for flexible mixed thermocouple layout deployment.

Wide-Range Micro-Voltage Signal Sampling

This professional FIO module processes standard micro-voltage signals covering -100mV to 150mV and -20mV to 80mV narrow ranges. High-impedance signal reception effectively captures weak industrial micro-voltage variations that conventional analog modules fail to identify. Stable micro-signal acquisition ensures authentic data restoration for precision process parameter monitoring.

2. SIL 3 Safety Grade & Precision Measurement Performance

Industry-Recognized SIL 3 Certification

Yokogawa AAT145‑S00 features strict SIL 3 safety integrity certification, meeting high-standard safety requirements for critical industrial control systems. The module adopts safety-enhanced circuit design and fault diagnosis logic to eliminate potential monitoring risks. Certified safety performance makes it ideal for high-risk process loops requiring uninterrupted and reliable monitoring.

Ultra-Stable Low-Drift Measurement Accuracy

Built with 16-bit high-resolution conversion circuitry, Yokogawa AAT145‑S00 maintains precise measurement accuracy under full operating conditions. Thermocouple and mV signal detection error is controlled within ±40μV, ensuring ultra-fine identification of subtle parameter changes. Strict factory calibration suppresses long-term signal drift and guarantees consistent monitoring precision throughout equipment service life.

Automatic Thermocouple Burnout Detection

The module integrates dedicated burnout detection function with a 1.5-second fast response cycle. It automatically identifies thermocouple open circuits, broken cables and sensor failures in real time. Timely fault alarms help maintenance teams locate anomalies quickly, avoiding invalid data and abnormal process operation caused by sensor faults.

3. Full Channel Isolation & Anti-Interference Architecture

Complete Channel-to-Channel Galvanic Isolation

Every channel of Yokogawa AAT145‑S00 adopts independent galvanic isolation structure, achieving thorough electrical separation between sampling channels. This design completely eliminates cross-channel signal crosstalk and mutual interference in dense field wiring environments. Single-channel faults are effectively contained without affecting the normal operation of other channels and the entire module.

Field-to-System High-Voltage Insulation Protection

Reinforced insulation design isolates field sensing circuits from internal DCS system circuitry, withstanding ±5V allowable input voltage and industrial surge interference. High-grade insulation barriers resist complex electromagnetic radiation and voltage fluctuations on industrial sites. Robust electrical protection prevents micro-signal distortion and module damage in harsh working conditions.

High-Impedance Signal Stability Design

Yokogawa AAT145‑S00 is equipped with ultra-high input impedance circuitry, minimizing signal attenuation during long-distance field transmission. Stable impedance matching adapts to various complex wiring layouts and long-cable sensor deployment scenarios. It maintains complete and undistorted transmission of weak TC and mV signals.

4. Efficient Data Update & System Adaptability

150ms Synchronized Full-Channel Update

The module executes full-channel data refresh within 150ms, achieving balanced real-time performance and operational stability for thermal process monitoring. Moderate update frequency matches the slow variation characteristics of industrial temperature parameters, avoiding invalid frequent data updates. Synchronized channel output ensures consistent and coordinated process data feedback.

Dual DCS Platform Native Compatibility

Yokogawa AAT145‑S00 perfectly adapts to Yokogawa CENTUM VP and CENTUM CS series DCS systems, complying with unified FIO backplane and ESB bus protocols. Plug-and-play installation supports automatic system identification and fast communication handshake without external adapters or firmware modification. Dual-platform compatibility suits new project deployment and old system renovation scenarios.

5. Industrial-Grade Environmental & Mechanical Reliability

Stable Wide Temperature Operation

Yokogawa AAT145‑S00 operates reliably within -10°C to +55°C industrial working temperature range, with storage temperature tolerance covering -20°C to +70°C. High-quality screened components resist performance drift caused by cabinet heat accumulation and ambient temperature fluctuations. It supports 24/7 long-term unattended continuous operation.

Compact Low-Power Industrial Structure

With compact dimensions of 107.5 × 130 × 32.8 mm and lightweight 0.2kg body, the module adapts to dense cabinet rack layout requirements. Maximum 5W low power consumption reduces heat generation during full-load operation and avoids thermal interference with adjacent hardware. Reinforced internal structure resists minor mechanical vibration and environmental dust erosion.

6. Professional Industrial Application Scenarios

Safety-Critical Thermal Process Monitoring

High-risk industries such as petrochemical, thermal power and pharmaceutical manufacturing deploy Yokogawa AAT145‑S00 for reactor, furnace and high-temperature pipeline monitoring. SIL 3 safety certification ensures reliable data output for safety interlock systems, effectively preventing over-temperature risks and guaranteeing safe process operation.

Weak Micro-Voltage Precision Detection

Precision industrial testing and process fine-tuning scenarios utilize the module’s high-sensitivity mV-level acquisition capability. It captures tiny voltage changes in process equipment and sensing loops, providing accurate data support for process parameter optimization and product quality stability control.

High-Reliability DCS System Upgrade & Expansion

Legacy CENTUM series DCS system renovation projects adopt Yokogawa AAT145‑S00 to upgrade safety-level monitoring functions. Standard FIO form factor ensures seamless docking with existing cabinet and bus systems. Fast deployment minimizes project downtime and on-site debugging workload.

7. Core Competitive Advantages of Yokogawa AAT145‑S00

SIL 3 Safety Certification Improves System Security

As a safety-grade dedicated thermal monitoring module, it meets the highest industrial safety integrity standards. Professional fault diagnosis and burnout detection mechanisms eliminate monitoring blind spots in critical loops. It effectively reduces safety operation risks of industrial production systems.

Full Isolation Design Enhances Anti-Interference Ability

Independent channel isolation architecture solves signal crosstalk and interference problems in complex industrial electromagnetic environments. Stable weak signal transmission ensures zero data jitter and deviation. Fault confinement design improves overall system operational stability and maintainability.

High-Density Integration Reduces Operational Costs

16-channel high-density single-slot integration optimizes cabinet space utilization and reduces total module quantity. Low power consumption and durable industrial structure lower long-term energy consumption and maintenance costs. Multi-signal compatibility simplifies spare part inventory management for industrial sites.
