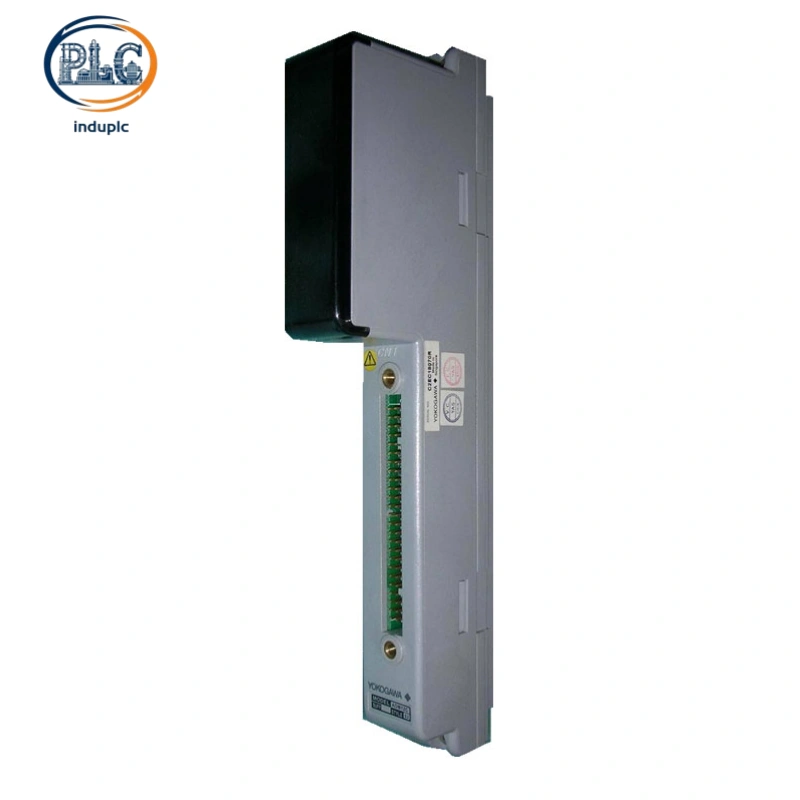

Yokogawa ADM12C Contact Input Module, 16-Point Common Minus Dry Contact Digital FIO Card for CENTUM DCS On/Off Signal Acquisition

Yokogawa ADM12C 16-Point Common Minus Dry Contact Input FIO Module for CENTUM DCS Discrete Status Monitoring

1. Specialized Dry Contact Signal Acquisition Design

16-Point High-Density Discrete Input

Yokogawa ADM12C integrates 16 independent dry contact input points within a single standard FIO slot, providing high-density discrete signal collection for industrial automation systems. The module focuses exclusively on on/off status detection, perfectly matching field switch contacts, auxiliary relay feedback, valve limit switches and equipment interlock signals. High-point integration reduces total module quantity and simplifies overall DCS I/O layout for large-scale discrete monitoring projects.

Common Minus Side Group Isolation Structure

Featuring a professional common minus signal design for every 16 points, Yokogawa ADM12C standardizes field wiring logic for discrete loops. This grouped common-ground structure adapts to conventional industrial dry contact wiring specifications, eliminating chaotic circuit wiring and reducing grounding mismatch risks. Optimized signal grouping ensures synchronous and stable sampling for all 16 contact channels without cross-interference.

2. Stable Electrical Specifications & Sampling Performance

24V DC Industrial Standard Signal Compatibility

Yokogawa ADM12C operates with native 24V DC field signal matching, compliant with mainstream industrial discrete control standards. The module accurately identifies contact closure and open states from 24V DC dry contact devices, ensuring precise status judgment for field equipment. Fixed voltage adaptation avoids signal recognition errors caused by voltage deviation in on-site operating environments.

Low Power & Stable Load Operation

With maximum current consumption below 600mA at 5V DC power supply, Yokogawa ADM12C achieves low-power full-load operation. Efficient circuit design minimizes continuous heat generation during 24/7 monitoring, preventing thermal accumulation inside DCS cabinets. Stable power operation maintains long-term consistent channel response and avoids performance attenuation from power fluctuation.

Reliable Contact State Judgment

The module adopts optimized threshold judgment logic for dry contact signals, effectively filtering minor on-site signal jitter and contact bounce. Intelligent signal screening ensures accurate identification of true equipment status, avoiding false triggering and data flicker. Mature sampling algorithm guarantees stable discrete data output for interlock and alarm logic execution.

3. Standardized Field Wiring & Hardware Adaptability

Dedicated Cable & Terminal Matching

Yokogawa ADM12C supports compatible KS9 and KS10 dedicated field cables, paired with TE32 professional terminal boards for standardized on-site wiring. Unified wiring accessories eliminate customized cable configuration and reduce engineering design complexity. Fixed terminal definitions lower wiring errors and accelerate system commissioning and maintenance efficiency.

Simplified Field Deployment Logic

Common-minus circuit design simplifies multi-point discrete loop layout, reducing redundant wiring compared with fully isolated discrete modules. Streamlined connection structure suits centralized multi-point switch signal collection scenarios. Standard wiring mode unifies project construction standards for new build and retrofit DCS systems.

4. Industrial-Grade Environmental & Structural Reliability

Wide Temperature Operating Tolerance

Yokogawa ADM12C delivers stable continuous operation across -10°C to +60°C industrial working temperature range, with storage temperature coverage extending from -20°C to +70°C. Strictly screened industrial components resist performance drift under cabinet heat accumulation and ambient temperature fluctuations. Broad thermal adaptability suits year-round unattended industrial operation.

Humidity & Vibration Resistant Construction

The module tolerates 10% to 90% non-condensing industrial relative humidity, preventing circuit dampening and oxidation in humid workshop environments. Reinforced internal circuit fixation withstands minor mechanical vibration and equipment impact during on-site operation. Rugged industrial structure ensures long-term operational stability with low failure rates.

5. Native CENTUM DCS System Compatibility

Plug-and-Play FIO Rack Integration

Yokogawa ADM12C complies with standard FIO rack and backplane specifications for Yokogawa CENTUM series DCS systems. Unified mechanical and electrical interfaces support direct plug-in installation with automatic system identification. No external adapters or firmware modifications are required for fast bus handshake and complete system docking.

Seamless System Logic Matching

The module’s discrete signal transmission logic is fully adapted to CENTUM DCS control and alarm algorithms. Collected contact status data can be directly applied to equipment interlock, fault alarm and sequence control logic without secondary conversion. Native system matching reduces program debugging workload and improves overall system operational efficiency.

6. Targeted Industrial Application Scenarios

Field Equipment Status Monitoring

Petrochemical, power, chemical and manufacturing plants deploy Yokogawa ADM12C for field device status collection. It captures valve limit position signals, pump operation feedback, fan running status and switch state changes, providing real-time discrete data for DCS system process monitoring and equipment management.

Safety Interlock & Alarm Signal Acquisition

The module undertakes key interlock loop signal collection tasks for industrial safety systems. It accurately collects emergency stop signals, fault contact feedback and safety protection switch status, supporting reliable trigger execution of system safety interlock and alarm logic to ensure production operational safety.

DCS System Discrete I/O Expansion & Retrofit

New project construction and old system renovation projects widely adopt Yokogawa ADM12C for discrete signal point expansion. High-density 16-point design efficiently supplements system on/off monitoring capacity. Standard FIO form factor ensures seamless compatibility with existing cabinet systems, minimizing project downtime and transformation costs.

7. Core Competitive Advantages of Yokogawa ADM12C

High-Density Integration Optimizes Cabinet Resources

16-point single-slot high-density discrete input design maximizes cabinet space utilization. It replaces multiple low-channel discrete modules, reducing rack occupancy and overall hardware investment. Compact layout simplifies cabinet wiring arrangement and improves system integration neatness.

Common-Minus Design Simplifies Engineering Work

Professional grouped common-minus wiring structure conforms to conventional industrial discrete loop habits, reducing engineering design and on-site construction difficulty. Standardized accessory matching unifies project construction standards, lowering human error rates in wiring and debugging processes.

High Cost-Performance for Mass Discrete Monitoring

Stable industrial-grade performance with low-power and low-failure characteristics reduces long-term operational and maintenance costs. Mature dry contact acquisition technology ensures reliable long-cycle operation without frequent calibration. High cost-performance ratio makes it the preferred module for large-scale standard discrete signal deployment.
