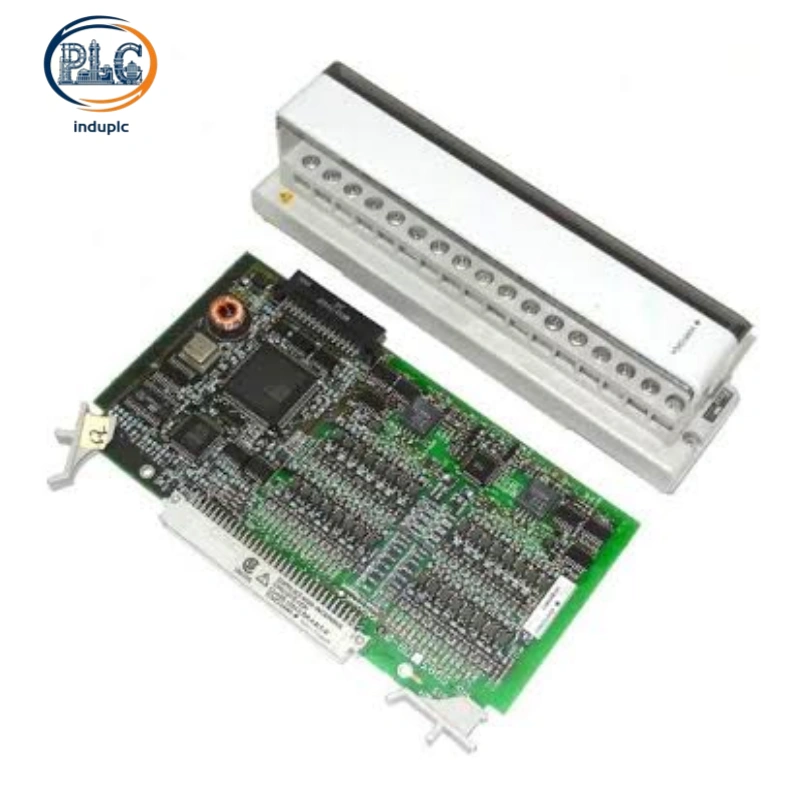

Yokogawa ADM12T Contact Input Module, 16-Point Common Plus Sink Dry Contact Digital FIO Card for CENTUM DCS Positive Logic On/Off Signal Acquisition

Yokogawa ADM12T 16-Point Common Plus Sink-Type Dry Contact Input FIO Module for CENTUM DCS Positive Logic Discrete Monitoring

1. Exclusive Common-Plus Sink-Mode Signal Design

16-Point High-Density Sink Input Configuration

Yokogawa ADM12T integrates 16 independent sink-type dry contact input channels within a single standard FIO slot, providing high-capacity discrete signal collection for industrial automation systems. Optimized for positive-logic field wiring, the module perfectly adapts to common-plus field devices including normally-open switches, relay auxiliary contacts, valve limit sensors and equipment interlock switches. High-density single-slot integration minimizes DCS rack occupancy and unifies discrete I/O layout for large-scale industrial projects.

Grouped Common-Plus Circuit Architecture

Featuring professional 16-point grouped common-plus internal structure, Yokogawa ADM12T matches global mainstream sink-mode discrete control standards. This positive common-ground design fully differentiates from common-minus modules, perfectly fitting field wiring schemes with positive-side common connection. Optimized circuit grouping eliminates cross-channel signal crosstalk and ensures synchronous, jitter-free status sampling for all 16 channels.

2. Stable Electrical Performance & Precision Sampling Logic

24V DC Industrial Standard Signal Matching

Yokogawa ADM12T supports standard 24V DC industrial discrete signal specifications, precisely identifying contact open and closed status for sink-mode field loops. The module maintains stable signal recognition accuracy under fluctuating on-site voltage conditions, effectively avoiding misjudgment of equipment status caused by power deviation. Native 24V DC adaptation covers most factory discrete control and safety interlock scenarios.

Low-Power Full-Load Stable Operation

With controlled low current consumption under 5V DC power supply, Yokogawa ADM12T achieves low-heat full-load continuous operation. Efficient circuit design suppresses thermal accumulation during 24/7 uninterrupted monitoring, preventing temperature interference with adjacent cabinet modules. Stable power operating characteristics ensure consistent channel response and long-term operational stability.

Anti-Jitter Contact Status Judgment

Built-in optimized signal filtering logic effectively eliminates contact bounce and instantaneous field signal jitter. The module accurately captures valid equipment on/off status while shielding interference signals, avoiding false alarms and data flicker in DCS monitoring screens. Mature sampling algorithm provides reliable discrete data support for system sequence control and safety interlock execution.

3. Standardized Wiring & Accessory Compatibility

Dedicated Industrial Cable & Terminal Matching

Yokogawa ADM12T is fully compatible with KS9 and KS10 dedicated FIO field cables and TE32 professional terminal boards, realizing standardized on-site wiring configuration. Unified accessory specifications eliminate customized wiring design, reduce engineering complexity and lower on-site connection errors. Fixed channel pin definitions greatly accelerate system commissioning and daily maintenance efficiency.

Simplified Positive-Logic Field Deployment

Common-plus sink-mode design simplifies multi-point discrete loop wiring for global industrial standard projects. Compared with fully isolated discrete modules, the grouped common structure reduces redundant cables and construction costs. Standard positive-logic wiring mode unifies construction standards for new DCS projects and old system renovation upgrades.

4. Industrial-Grade Environmental & Mechanical Reliability

Wide Temperature Adaptive Operation

Yokogawa ADM12T operates stably within -10°C to +60°C industrial working temperature range, with storage temperature tolerance covering -20°C to +70°C. High-quality screened industrial components resist performance drift caused by cabinet heat accumulation and ambient temperature fluctuations, supporting year-round unattended continuous production operation.

Vibration & Humidity Resistant Structure

The module withstands 10%–90% non-condensing industrial relative humidity, preventing circuit dampening, oxidation and short-circuit risks in humid workshop environments. Reinforced internal circuit fixation resists minor mechanical vibration and equipment impact during on-site operation and maintenance, maintaining long-term low-failure operational status.

5. Full CENTUM DCS Platform Compatibility

Plug-and-Play FIO Rack Integration

Yokogawa ADM12T complies with unified FIO rack and backplane electrical specifications for Yokogawa CENTUM CS3000 and VP series DCS systems. Standard mechanical interfaces support direct plug-in installation with automatic system identification and fast ESB bus handshake. No external adapters or firmware modifications are required for seamless system docking.

Native Control Logic Adaptation

The module’s positive-logic signal transmission mechanism is fully matched with CENTUM DCS control, alarm and interlock algorithms. Collected dry contact status data can be directly invoked by system program logic without secondary signal conversion. Native system compatibility reduces program debugging workload and improves overall DCS operational efficiency.

6. Professional Industrial Application Scenarios

Standard Positive-Logic Equipment Monitoring

Petrochemical, power, chemical and manufacturing enterprises deploy Yokogawa ADM12T for sink-mode field equipment status monitoring. It accurately collects pump running feedback, fan operating status, valve limit position signals and switch state changes, providing real-time discrete data for DCS process monitoring and equipment management systems.

Safety Interlock & Alarm Loop Acquisition

The module undertakes key signal collection tasks for industrial safety protection loops. It stably acquires emergency stop switch status, equipment fault contact feedback and safety protection signal changes, supporting accurate trigger of system safety interlock and alarm logic to guarantee production operational safety.

DCS Discrete I/O Expansion & System Retrofit

New industrial automation projects and legacy CENTUM DCS renovation projects widely adopt Yokogawa ADM12T for positive-logic discrete point expansion. High-density 16-point design efficiently supplements system on/off monitoring capacity. Standard FIO form factor ensures seamless compatibility with existing cabinet systems, minimizing project downtime and transformation costs.

7. Core Competitive Advantages of Yokogawa ADM12T

Exclusive Common-Plus Design Matches Global Standards

As a dedicated common-plus sink-type discrete module, it perfectly adapts to international positive-logic industrial wiring standards, making up for the application gap of common-minus modules in global projects. Targeted signal design avoids wiring logic mismatch and expands applicable scenarios for DCS discrete monitoring systems.

High-Density Integration Saves Cabinet Resources

16-point single-slot high-density integration maximizes DCS cabinet space utilization. It replaces multiple low-channel discrete modules, effectively reducing rack occupancy and overall hardware procurement costs. Compact layout optimizes cabinet wiring neatness and system integration standardization.

High Cost-Performance for Mass Discrete Deployment

Stable industrial-grade performance with low-power and low-failure characteristics reduces long-term operational inspection and maintenance costs. Mature dry contact sampling technology requires no frequent calibration, ensuring reliable long-cycle operation. Superior cost-performance makes it the preferred choice for large-scale standard positive-logic discrete signal deployment.
