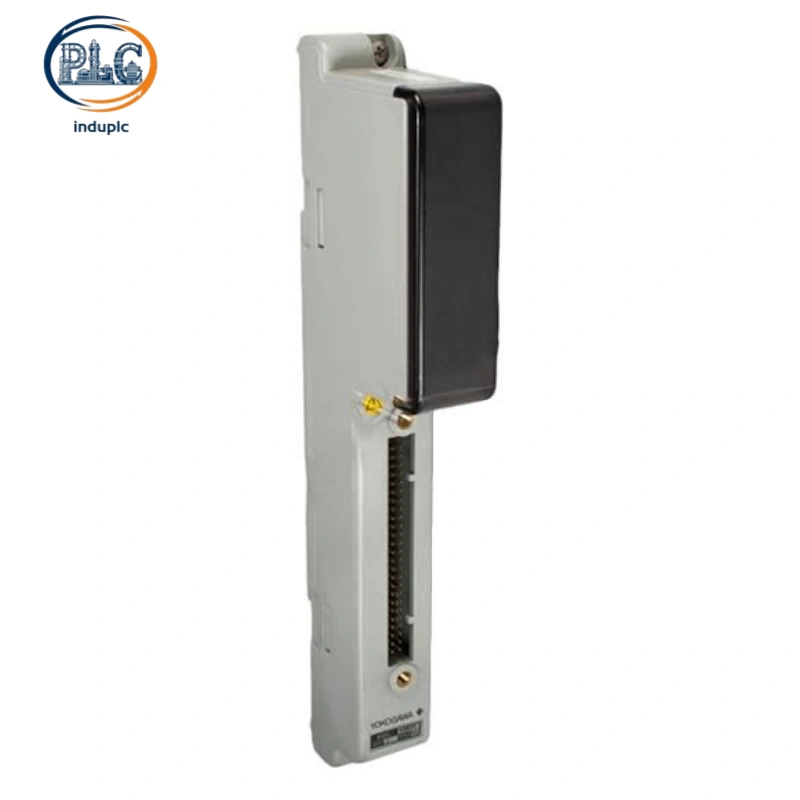

Yokogawa ADM52C‑2 Contact Output Module, 32-Point Common Minus Transistor Output FIO Card for CENTUM DCS Pulse and Sequence Control

Yokogawa ADM52C‑2 32-Point Common Minus Transistor Contact Output FIO Module for CENTUM DCS Discrete Process Actuation

1. High-Density 32-Point Common-Minus Output Design

Maximized Single-Slot Discrete Output Capacity

Yokogawa ADM52C‑2 integrates 32 independent transistor output channels within one standard FIO slot, delivering industry-leading high-density discrete output performance for CENTUM DCS platforms. The 32-point layout drastically improves I/O utilization efficiency compared with traditional 16-point output modules, minimizing cabinet rack occupancy for large-scale sequential control projects. Each channel supports independent on/off switching without mutual interference, meeting multi-point synchronous actuation demands of complex industrial automation systems.

Standard Common-Minus Output Logic

Adopting mature common-minus negative-logic transistor output architecture, Yokogawa ADM52C‑2 fully matches conventional industrial discrete wiring specifications. This grouped common-ground design simplifies field cable arrangement and unifies loop configuration standards for DCS output circuits. Consistent negative-logic output mode avoids wiring logic conflicts and reduces engineering design complexity for standardized plant control systems.

2. Precise Functional Output & Electrical Specifications

30V DC Low-Load Switching Capacity

Yokogawa ADM52C‑2 supports stable switching for resistive and inductive loads under 30V DC operating voltage, with each channel rated for 100mA continuous output current. Strict load rating control ensures safe and reliable long-term actuation of field low-power equipment including indicator lamps, small relays and valve positioners. Built-in overcurrent protection prevents channel damage caused by instantaneous load surge and short-circuit faults.

High-Precision Pulse & Timed Output Mode

The module features professional pulse-width output function with 20ms ultra-fine resolution, supporting adjustable pulse duration ranging from 0.1 seconds to 7200 seconds. It realizes one-shot pulse triggering and time-proportioned on/off control, adapting to timed feeding, intermittent actuation and delayed reset process scenarios. Precise timing output eliminates manual intervention and improves automatic process consistency.

Fast Response Switching Performance

With ultra-fast transistor switching response speed lower than 5ms, Yokogawa ADM52C‑2 synchronizes efficiently with CENTUM DCS logic execution cycles. Rapid signal output eliminates actuation lag in sequence control and interlock reset loops. Stable switching characteristics ensure consistent response speed for long-term frequent start-stop operation.

3. Standardized Wiring & Mechanical Compatibility

Dedicated FIO Cable Matching

Yokogawa ADM52C‑2 is fully compatible with mainstream KS9 and KS10 dedicated FIO field cables, realizing standardized plug-and-play wiring configuration. Unified cable specifications eliminate customized wiring design and reduce on-site connection errors. Fixed channel pin definitions simplify system debugging and daily maintenance workflows, greatly improving project commissioning efficiency.

Compact Lightweight Industrial Structure

Weighing only 350g with standard FIO dimensional specifications, the module adapts to dense cabinet rack deployment requirements. Streamlined structural design saves internal cabinet space and facilitates neat wiring arrangement. Reinforced internal circuit fixation withstands minor mechanical vibration, ensuring structural stability during long-term industrial operation.

4. Industrial-Grade Environmental Adaptability

Ultra-Wide Temperature Operating Range

Yokogawa ADM52C‑2 operates reliably across -20°C to +70°C ultra-wide industrial temperature range, covering extreme low-temperature startup and high-temperature cabinet heat accumulation scenarios. High-grade screened components resist performance drift and parameter deviation under fluctuating ambient temperatures, supporting 24/7 uninterrupted continuous production operation.

Stable Humidity & Anti-Interference Performance

The module tolerates 10%–90% non-condensing industrial relative humidity, preventing circuit dampening and oxidation in humid workshop environments. Complying with IEC 61000-6-2 and IEC 61000-4-2 electromagnetic compatibility standards, it effectively resists on-site electrostatic interference and radiation noise, maintaining stable output accuracy in complex electromagnetic environments.

5. Full CENTUM DCS System Integration

Plug-and-Play FIO Backplane Compatibility

Yokogawa ADM52C‑2 matches standard FIO rack and ESB bus protocols for Yokogawa CENTUM CS3000 and VP DCS systems. Direct plug-in installation enables automatic system identification and fast communication handshake without external adapters or firmware upgrades. Native system compatibility ensures seamless docking for new project deployment and old system renovation.

Low-Power System Load Operation

The module consumes no more than 600mA current under 5V DC system power supply, achieving low-load and low-heat full-channel operation. Efficient circuit design avoids thermal interference with adjacent modules and reduces overall system energy consumption. Stable power operation extends hardware service life and lowers long-term operational risks.

6. Specialized Industrial Application Scenarios

Sequential Process Automatic Control

Chemical, petrochemical and manufacturing plants deploy Yokogawa ADM52C‑2 for batch sequence control and intermittent process actuation. High-density 32-point output supports multi-equipment synchronous start-stop, timed switching and step-by-step process execution, realizing fully automated sequential production workflows.

Field Indication & Auxiliary Relay Control

The module undertakes centralized control of on-site indicator lights, alarm buzzers and small auxiliary relays. Stable low-load switching output ensures reliable status display and auxiliary loop actuation, providing intuitive equipment status feedback and auxiliary protection for production systems.

Interlock Reset & Safety Auxiliary Actuation

It serves as core output hardware for safety loop reset, fault signal clearing and auxiliary interlock switching. Precise timed pulse output ensures accurate execution of safety logic reset, avoiding misoperation and improving overall system safety and controllability.

DCS Discrete Output Capacity Expansion

New DCS construction and legacy system upgrade projects adopt this module for high-density discrete output expansion. The 32-point single-slot design efficiently supplements system actuation capacity with minimal cabinet modification, reducing project transformation costs and downtime.

7. Core Advantages of Yokogawa ADM52C‑2

32-Point Ultra-High Density Saves Cabinet Resources

Breaking the limit of traditional 16-point output modules, the 32-point high-density integration maximizes cabinet space utilization. It reduces total module quantity and hardware investment for multi-point output projects, simplifying system layout and improving integration standardization.

Multi-Mode Output Improves Engineering Flexibility

Supporting continuous switching, one-shot pulse and proportional timed output, the module adapts to diversified discrete control demands. Ultra-fine 20ms timing resolution solves low-precision timing defects of ordinary output modules, optimizing refined process control effects.

High Stability & Cost-Effective Mass Deployment

Industrial-grade EMC compatibility and ultra-wide temperature tolerance guarantee stable operation in harsh environments. Low-power low-failure design reduces daily maintenance workload and spare part replacement frequency. Excellent cost-performance makes it the preferred solution for large-scale standardized discrete output deployment.
