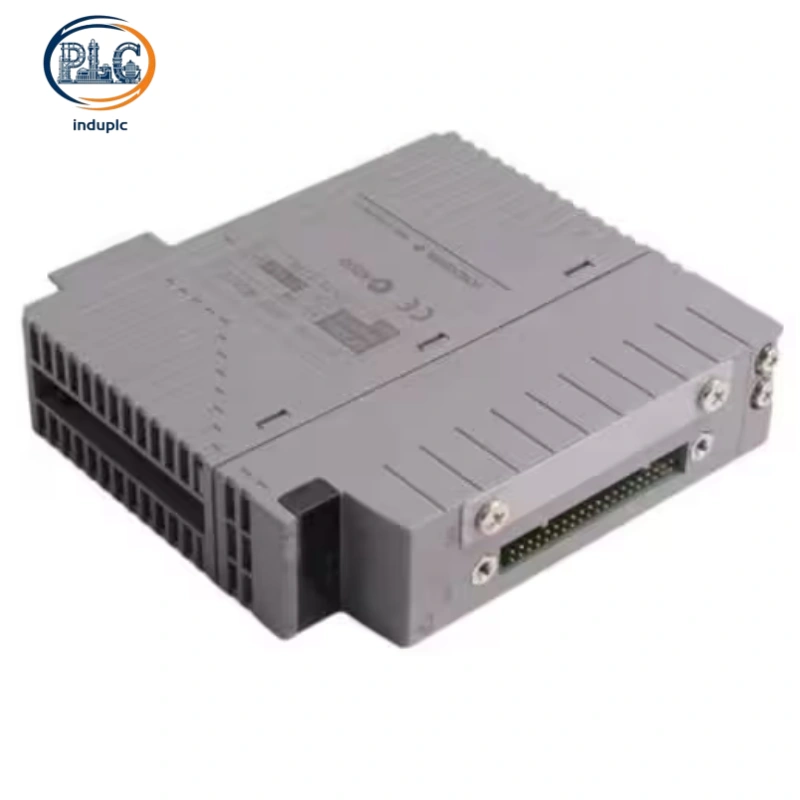

Yokogawa ADR541‑S00 Relay Output Module, 16-Channel Mechanically Isolated SPDT Dry Contact FIO Card for CENTUM VP DCS High-Voltage Load Switching

Yokogawa ADR541‑S00 16-Channel Mechanically Isolated SPDT Relay Output FIO Module for CENTUM VP Industrial Discrete Switching Control

1. Mechanical Relay Isolation & SPDT Contact Design

Full Channel Mechanical Galvanic Isolation

Yokogawa ADR541‑S00 adopts true mechanical relay isolation for every output channel, achieving complete galvanic separation between DCS system internal circuits and field external loads. Unlike transistor non-isolated modules, the physical mechanical barrier thoroughly blocks high-voltage surge, ground loop interference and cross-channel crosstalk. Independent single-channel isolation confines field faults without spreading to the backplane or adjacent channels, greatly improving overall DCS system safety and anti-interference capability.

Universal 1 Form C SPDT Dry Contact Structure

Each channel integrates standard 1 Form C SPDT (single-pole double-throw) relay contacts, providing normally open and normally closed dual-path switching. Versatile contact configuration supports flexible field wiring for positive/negative logic control, emergency cut-off and state switching scenarios. The dry contact design eliminates polarity restrictions for field loops, adapting to diversified AC and DC load wiring requirements without circuit modification.

2. Universal AC/DC High-Voltage Load Capacity

Industry-Standard Contact Rating

Yokogawa ADR541‑S00 supports wide-range industrial load switching with rated capacity of 1A @ 250V AC and 1A @ 30V DC. It stably drives high-voltage field loads that ordinary transistor output modules cannot support, including AC auxiliary relays, alarm annunciators and isolation switch loops. Strict factory-rated contact parameters ensure long-term safe switching without contact burnout or arcing failure.

Dual-Voltage Compatibility for Mixed Loops

The module is compatible with both AC 120V/250V and DC 24V/30V industrial control loops, realizing unified high and low voltage load switching on a single card. Universal voltage adaptation eliminates the need for separate low-voltage transistor modules and high-voltage relay modules on site. Integrated mixed-load capability simplifies DCS I/O configuration and reduces spare part types for industrial projects.

3. High-Density 16-Channel Single-Slot Integration

Maximized FIO Slot Utilization

Integrating 16 independent isolated relay output points in one standard FIO slot, Yokogawa ADR541‑S00 delivers superior I/O density for discrete control systems. High-density layout reduces total module quantity and cabinet rack occupancy compared with traditional low-channel relay modules. Compact single-slot design optimizes cabinet space arrangement for large-scale multi-point switching projects.

Independent Channel Operation Without Mutual Interference

Every relay channel operates independently with dedicated mechanical isolation and contact circuits. Single-channel load faults, short circuits or surge impacts will not affect the working status of other channels. Fault-tolerant decentralized design improves system stability and maintainability, allowing targeted replacement and maintenance of individual faulty points.

4. Reliable Industrial-Grade Environmental Performance

Wide Temperature & Humidity Adaptability

Yokogawa ADR541‑S00 operates stably within -20°C to +60°C wide industrial temperature range, adapting to severe cabinet heat accumulation and low-temperature startup conditions. It tolerates 5%–95% non-condensing industrial relative humidity, preventing relay contact dampening, oxidation and poor contact in humid plant environments. Broad environmental tolerance supports 24/7 long-cycle unattended operation.

Vibration & Aging Resistant Mechanical Structure

High-quality industrial-grade relays and reinforced internal fixing structures resist mechanical vibration and equipment impact during on-site operation. Precision relay contact components undergo strict aging screening to ensure stable switching performance and extended mechanical service life. Rugged industrial design reduces long-term contact failure and operational hidden risks.

5. Native CENTUM VP System Seamless Integration

Standard FIO Bus & Backplane Matching

Fully compliant with Yokogawa CENTUM VP series FIO rack and ESB bus protocols, Yokogawa ADR541‑S00 supports plug-and-play installation. The system automatically identifies the module after insertion and completes fast bus communication handshake without external adapters or firmware upgrades. Standard interface specifications ensure perfect compatibility for new project deployment and old system renovation.

Intuitive Status LED Indication

Equipped with dedicated power, communication and channel status LED indicators, the module supports real-time visual diagnosis of operating status. On-site technicians can quickly judge power supply health, bus communication status and individual channel switching state, greatly improving daily inspection and fault troubleshooting efficiency.

6. Targeted Industrial Application Scenarios

Safety Interlock & Emergency Switching Loops

Petrochemical, power and process industries widely deploy Yokogawa ADR541‑S00 for safety-critical interlock control. Mechanical isolation and high-voltage withstand capability effectively isolate system circuits from field high-voltage interference, ensuring reliable execution of emergency stop, interlock trip and safety reset logic to guarantee production safety.

High-Voltage Auxiliary Equipment Control

The module is specially used for switching control of AC high-voltage auxiliary equipment including field alarm lamps, horn buzzers, AC relay groups and remote indicator devices. Its unique AC load driving capability makes up for the deficiency of transistor modules that can only adapt to low-voltage DC loads, covering full-scene discrete actuation demands.

Multi-Type Mixed Load Centralized Control

For industrial sites with mixed AC and DC control loops, this unified relay output module realizes centralized switching management. Universal SPDT dry contact design adapts to diverse load specifications, simplifying on-site wiring and system configuration. It is widely used in batch production, process sequence control and equipment status indication systems.

DCS Discrete Output System Upgrade & Expansion

Legacy CENTUM system renovation and safety loop upgrade projects adopt Yokogawa ADR541‑S00 to add isolated high-voltage switching capability. Standard FIO form factor ensures seamless compatibility with existing cabinet systems, minimizing project transformation workload and downtime.

7. Core Competitive Advantages of Yokogawa ADR541‑S00

Mechanical Isolation Eliminates High-Voltage Risks

Different from non-isolated transistor output modules, physical relay isolation completely isolates high-voltage field interference, protecting DCS core backplane and control circuits. It effectively avoids system breakdown caused by field high-voltage surge and short-circuit faults, significantly improving overall system safety grade.

AC/DC Universal Load Expands Application Boundaries

Supporting both high-voltage AC and conventional DC load switching, the module solves the limitation of single low-voltage output of ordinary discrete cards. One module covers multiple complex load scenarios, reducing hardware procurement costs and simplifying engineering design difficulty.

High Reliability Suits Safety-Critical Loops

Mature mechanical relay switching technology features strong anti-interference ability, stable on-off state and low misoperation rate. Dual normally open/closed contacts provide redundant switching options for safety loops, making it the preferred solution for high-reliability industrial safety and interlock control systems.
