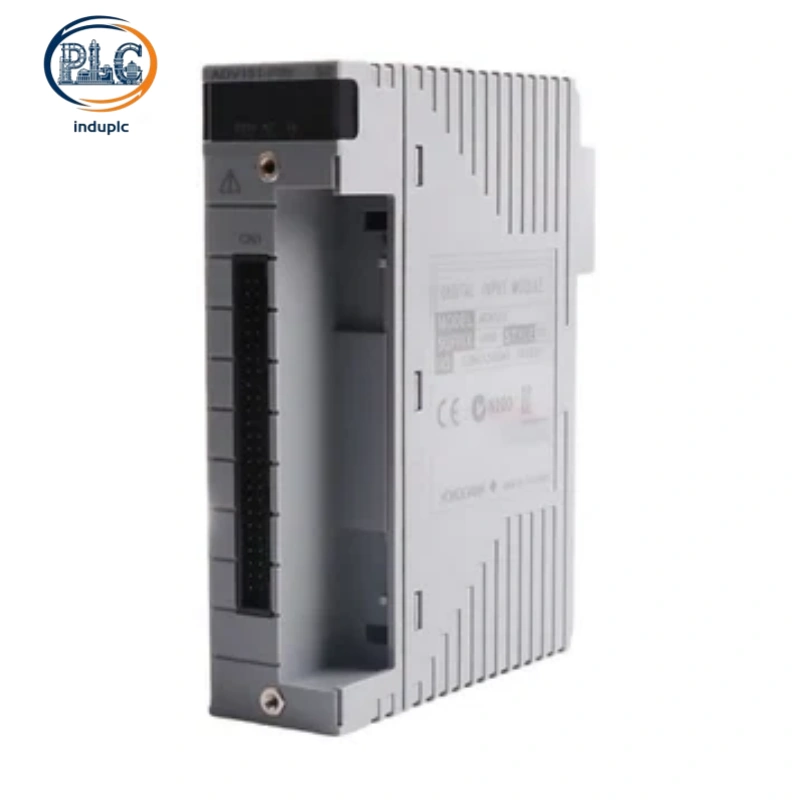

Yokogawa ADV151‑P00D00 Digital Input Module, 32-Channel Optically Isolated 24V DC High-Speed FIO Card for CENTUM VP DCS Dry Contact Status Monitoring

Yokogawa ADV151‑P00D00 32-Channel Per-Channel Optically Isolated 24V DC High-Speed Digital Input FIO Module for CENTUM VP DCS Discrete Monitoring

1. Ultra-High-Density 32-Channel DC Input Architecture

Single-Slot 32-Point Mass Signal Acquisition

Yokogawa ADV151‑P00D00 breaks the conventional 16-channel FIO module limit by integrating 32 independent 24V DC discrete input channels within a single standard FIO slot. This ultra-high-density design drastically improves DCS cabinet I/O utilization efficiency, cutting total module quantity and rack occupancy by half compared with traditional low-density digital input cards. It perfectly matches large-scale industrial scenarios requiring massive on/off status signal collection, simplifying overall system hardware layout and engineering configuration.

Standard 24V DC Dry Contact Compatibility

The module is fully optimized for universal industrial 24V DC dry contact and voltage discrete signals, adapting to mainstream field devices including limit valves, pump auxiliary contacts, feedback relays and field switches. It supports stable recognition of standard low-voltage DC discrete loops, covering most general industrial status monitoring and interlock acquisition demands with excellent universal field adaptability.

2. Precision Threshold & High-Speed Sampling Performance

Accurate Voltage Threshold Judgment Logic

Yokogawa ADV151‑P00D00 adopts strict industrial-level threshold calibration, with ON-state voltage ranging from 18V to 26.4V DC and OFF-state voltage limited to ≤5.0V DC. Each channel maintains a stable operating current of 4.1mA (±20% tolerance) under rated 24V DC input, with a maximum allowable input voltage of 30V DC. Precise voltage and current parameter screening effectively avoids signal misjudgment caused by on-site voltage drift and weak interference, ensuring reliable status identification.

10ms Ultra-Fast Full-Channel Data Update

Equipped with high-speed dedicated sampling circuitry, the module achieves a 10ms full-channel synchronous data update cycle, far exceeding the response speed of conventional low-speed discrete modules. The ultra-fast refresh capability supports real-time tracking of rapidly switching field contact status, eliminating monitoring lag for sequence control and fast-response interlock loops. Consistent high-frequency sampling ensures synchronized and accurate discrete data output for DCS logic execution.

3. Per-Channel Optical Isolation Anti-Interference Design

Independent Single-Channel Galvanic Isolation

Different from grouped isolation modules, Yokogawa ADV151‑P00D00 adopts exclusive per-channel optical isolation structure, realizing complete electrical separation for every 32 input channels. This independent isolation design thoroughly eliminates cross-channel crosstalk and mutual interference in high-density signal wiring environments. Single-channel short-circuit or surge faults are fully confined without affecting other channels or the entire module, greatly improving system fault tolerance and operational stability.

1500V AC High Withstand Voltage Protection

The module features 1500V AC one-minute dielectric withstand voltage isolation performance between field circuits and DCS system internal circuits. High-grade optical isolation barriers effectively resist industrial electromagnetic radiation, static interference and instantaneous voltage surges. Robust insulation protection shields sensitive DCS backplane and bus circuits from field loop anomalies, enhancing overall system safety and anti-interference capability in complex industrial environments.

4. Low-Power & Optimized Hardware Structure

Energy-Saving Full-Load Operation

Yokogawa ADV151‑P00D00 features low power consumption design, with a maximum current consumption of only 500mA under 5V DC system power supply. Even during full 32-channel load operation, the module generates minimal heat accumulation, avoiding thermal interference with adjacent cabinet modules. Stable low-power operation extends hardware service life and reduces long-term system energy consumption and operational costs.

Compact Lightweight Industrial Form Factor

Weighing only 0.30kg with standard FIO dimensional specifications, the module adapts to dense cabinet rack deployment requirements. Reinforced internal circuit fixation structure resists minor mechanical vibration and impact during on-site operation and maintenance. Streamlined compact design ensures neat cabinet layout while maintaining structural durability for long-cycle industrial operation.

5. Strict Industrial-Grade Environmental Adaptability

Precise Temperature Operating Range

The module operates stably within 0°C to +50°C industrial working temperature range, perfectly adapting to standard DCS cabinet indoor operating environments. The storage temperature covers -20°C to +70°C, ensuring safe and stable component performance during transportation, storage and standby operation. Strict temperature tolerance prevents parameter drift and signal deviation caused by ambient temperature changes.

Humidity & Vibration Resistance

Yokogawa ADV151‑P00D00 withstands 5%–95% non-condensing industrial relative humidity, effectively preventing internal circuit dampening, oxidation and poor contact faults. It passes standard industrial vibration tests of 10–60Hz with 0.2mm amplitude, resisting mechanical vibration from on-site production equipment and cabinet operation, maintaining long-term low-failure stable operation.

6. Native CENTUM VP DCS System Compatibility

Plug-and-Play FIO Bus Docking

Fully compliant with Yokogawa CENTUM VP series FIO backplane and ESB bus communication protocols, Yokogawa ADV151‑P00D00 supports direct plug-and-play installation. The DCS system automatically completes module identification, driver matching and bus handshake without external adapters or firmware modification. Native compatibility suits new project construction, I/O expansion and legacy system renovation scenarios.

Pushbutton Input Function Support

Matching the P-suffix functional configuration, the module reserves professional pushbutton input detection capability, supporting manual field button status signal acquisition. This extended function adapts to on-site manual operation confirmation, local switch triggering and manual interlock reset scenarios, improving on-site operation flexibility and system human-machine interaction performance.

7. Targeted Industrial Application Scenarios

Large-Scale Discrete Status Monitoring

Petrochemical, chemical, power and manufacturing plants widely deploy Yokogawa ADV151‑P00D00 for centralized collection of massive field discrete signals. It efficiently monitors pump, fan, valve and auxiliary equipment operating status, providing comprehensive real-time discrete data support for DCS process monitoring and equipment management systems.

High-Speed Interlock & Alarm Loop Acquisition

Relying on 10ms high-speed response and per-channel isolation advantages, the module is suitable for fast-response safety interlock and fault alarm loops. It accurately captures instantaneous fault signals and switch state changes, ensuring timely and reliable trigger of system safety logic and alarm mechanisms to guarantee production operational safety.

High-Density DCS I/O Expansion & Upgrade

For industrial automation projects requiring large-scale discrete I/O expansion, the 32-channel high-density module efficiently supplements system monitoring capacity with minimal cabinet space occupation. Standard FIO form factor ensures seamless compatibility with existing CENTUM VP systems, minimizing project transformation workload and downtime.

8. Core Competitive Advantages of Yokogawa ADV151‑P00D00

32-Channel Ultra-High Density Saves Cabinet Resources

Doubling the channel capacity of conventional 16-channel FIO modules, the single-slot 32-point design maximizes cabinet space utilization. It reduces hardware procurement costs, simplifies cabinet wiring layout and lowers spare part inventory pressure, delivering superior cost-performance for large-scale discrete signal deployment projects.

Per-Channel Optical Isolation Boosts System Stability

Independent optical isolation for each channel eliminates cross-interference risks of grouped isolation modules. High withstand voltage insulation and fault confinement design effectively suppresses on-site electromagnetic interference and fault spread, ensuring ultra-stable signal acquisition in complex industrial electromagnetic environments.

10ms High-Speed Response Optimizes Control Precision

Ultra-fast full-channel update speed realizes real-time tracking of rapidly changing discrete signals, solving the monitoring lag problem of low-speed modules. Precise threshold judgment and anti-jitter filtering ensure zero false triggering and stable data output, improving the overall accuracy and real-time performance of DCS discrete control logic.
