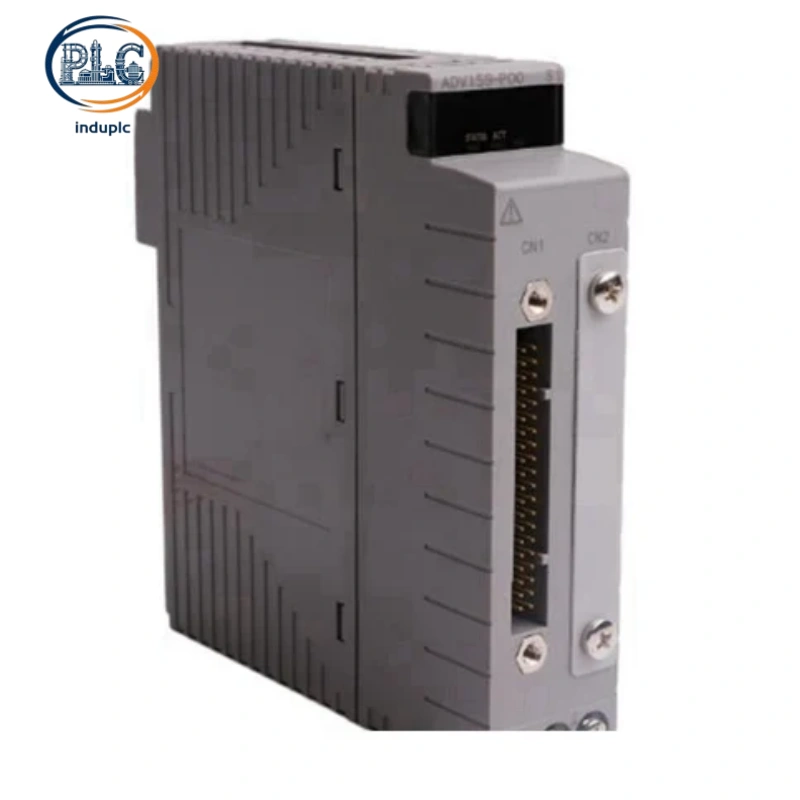

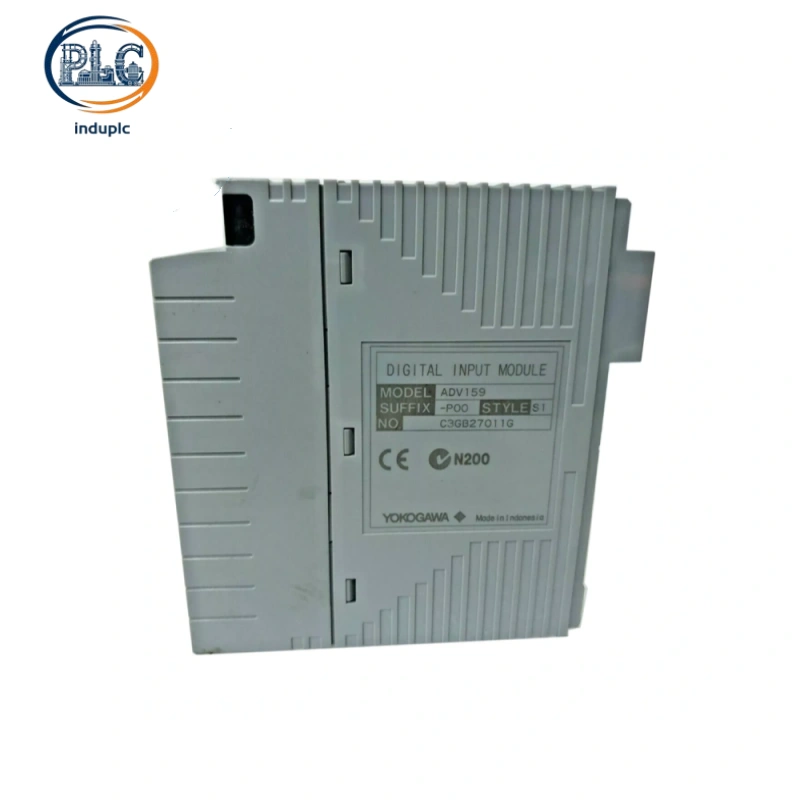

Yokogawa ADV159‑P00 Digital Input Module, 32-Channel Isolated Contact/Voltage 24V DC 8ms FIO Card for CENTUM ST3 DCS Standard Discrete Monitoring

Yokogawa ADV159‑P00 32-Channel Isolated Dual-Mode Contact/Voltage Digital Input FIO Module for CENTUM ST3 Standard Industrial Discrete Monitoring

1. Dual Contact/Voltage Universal Input Architecture

Dual Signal Acquisition Compatibility

Yokogawa ADV159‑P00 features exclusive dual-mode input design, supporting both dry contact status detection and DC voltage signal acquisition in a single module. This versatile architecture eliminates the need for separate dedicated input cards for different field signal types, seamlessly adapting to mixed discrete loop configurations on industrial sites. It universally interfaces with standard field equipment including auxiliary relays, limit switches, manual pushbuttons and 24V DC voltage-based status sensors, maximizing on-site wiring and engineering flexibility.

Precision Contact & Voltage Threshold Calibration

The module adopts strict factory-calibrated judgment thresholds for reliable signal recognition. For contact input, it defines OFF status at ≥100 kΩ loop resistance and ON status at ≤200 Ω, with a minimum 1.25 mA short-circuit current for valid contact closure detection. For voltage input, the OFF range covers 4.5V to 25V DC, while valid ON signals are identified at ±1V DC with low loop resistance. Accurate threshold screening effectively filters weak interference and prevents false status judgment in complex field environments.

2. Standard 8ms Response & Professional Pushbutton Function

8ms Stable Full-Channel Update Cycle

Engineered for standard industrial discrete monitoring, Yokogawa ADV159‑P00 delivers a fixed 8ms full-channel data update speed, balancing stable sampling performance and low system resource consumption. Compared with ultra-high-speed pulse modules, this optimized response rate perfectly matches conventional slow-to-medium speed switch state changes, effectively suppressing contact bounce and transient jitter without excessive data refresh overhead. It ensures consistent and reliable status output for routine DCS logic execution and equipment monitoring.

Dedicated P-Suffix Pushbutton Input Detection

Retaining professional P-series functional configuration, the module supports precise manual pushbutton signal acquisition with a minimum 20ms ON-state confirmation time and a maximum 25Hz switching cycle tolerance. Built-in anti-jitter filtering eliminates mechanical bounce interference of physical buttons, ensuring stable capture of manual operation confirmation, local switching triggers and on-site reset commands. This dedicated function enhances human-machine interaction flexibility for on-site operational workflows.

3. Channel-Isolated Anti-Interference Safety Design

Independent Per-Channel Electrical Isolation

Yokogawa ADV159‑P00 integrates independent channel-level isolation for all 32 input channels, realizing complete electrical separation between field loops and internal DCS system circuits. Different from grouped isolation modules, this single-channel isolation structure thoroughly eliminates cross-channel crosstalk, ground loop coupling and mutual signal interference in high-density wiring scenarios. Individual channel faults such as short circuits and voltage surges are fully confined locally, avoiding module-level failure or system circuit impact.

Industrial-Grade EMC & Fault Tolerance

Compliant with industrial electromagnetic compatibility standards, the module resists on-site static discharge, radiation noise and power grid fluctuation interference. The isolated barrier effectively blocks field electrical anomalies from invading sensitive DCS backplane and bus circuits. Robust anti-interference and fault containment performance ensures long-term stable operation in complex electromagnetic industrial environments, reducing system false alarms and signal anomalies.

4. 32-Channel High-Density Standard FIO Integration

Slot-Efficient Mass Signal Monitoring

Integrating 32 independent discrete input channels within one standard FIO slot, Yokogawa ADV159‑P00 doubles the channel capacity of traditional 16-channel DCS input modules. This high-density layout significantly reduces cabinet rack occupancy, total module quantity and overall hardware investment for large-scale discrete monitoring projects. It simplifies system I/O configuration and cabinet wiring layout, realizing standardized and compact industrial control system deployment.

Standardized FIO Wiring & Accessory Compatibility

The module fully adapts to Yokogawa unified FIO wiring specifications, supporting matching with dedicated field cables and terminal boards. Fixed pin definitions and standardized wiring logic reduce on-site connection errors and simplify engineering construction and commissioning processes. Unified accessory specifications lower spare part inventory pressure and improve daily maintenance efficiency for industrial sites.

5. Strict Industrial Environmental & Mechanical Reliability

Wide Temperature & Humidity Adaptation

Yokogawa ADV159‑P00 operates stably within standard industrial temperature range, adapting to long-term indoor cabinet heat accumulation and ambient temperature fluctuations. It withstands 5%–95% non-condensing industrial relative humidity, effectively preventing internal circuit dampening, oxidation and poor contact faults. Strict environmental resistance design supports 24/7 unattended continuous industrial production operation.

Vibration & Aging Resistant Structure

Reinforced internal circuit fixation and industrial-grade integrated structure resist minor mechanical vibration and impact from production equipment and cabinet operation. All components undergo strict factory aging screening, ensuring stable electrical and physical performance with ultra-low failure rates, meeting long-cycle industrial control system operational requirements.

6. Native CENTUM ST3 & VP System Compatibility

Exclusive ST3 Architecture Adaptive Design

As a ST3-compatible dedicated discrete input module, Yokogawa ADV159‑P00 achieves perfect protocol and mechanical matching with CENTUM ST3 series DCS systems. It also maintains full backward compatibility with CENTUM VP platforms, supporting cross-version system deployment and upgrade scenarios. Native system adaptation eliminates protocol mismatch risks and secondary program debugging workload.

Plug-and-Play Bus Docking

Standard FIO interface supports direct plug-and-play installation, with automatic system identification and fast ESB bus communication handshake. No external adapters or firmware modifications are required, greatly accelerating new project deployment, I/O expansion and legacy system renovation progress. Stable bus communication ensures real-time and accurate data transmission between field equipment and DCS control logic.

7. Targeted Industrial Application Scenarios

General Equipment Status Centralized Monitoring

Widely applied in petrochemical, chemical, power and manufacturing industries, the module undertakes large-scale collection of conventional discrete signals. It stably monitors pump operation status, fan running feedback, valve limit positions and equipment auxiliary contact states, providing comprehensive real-time data support for DCS process monitoring and equipment management systems.

On-Site Manual Operation Signal Acquisition

Relying on dedicated pushbutton input function, the module is specially used for collecting local manual operation signals including start/stop buttons, reset switches and confirmation triggers. It realizes reliable human-machine signal interaction, supporting on-site manual intervention and equipment state reset workflows.

Standard Interlock & Alarm Loop Monitoring

The module adapts to conventional medium-speed safety interlock and fault alarm loops, accurately capturing emergency stop signals, fault contact feedback and protection switch status changes. Stable 8ms response and anti-jitter filtering ensure reliable execution of standard system alarm and interlock logic, guaranteeing basic production operational safety.

Large-Scale Standard I/O Expansion & System Upgrade

Ideal for new project standard discrete I/O configuration and old CENTUM ST3/VP system renovation, the 32-channel high-density module efficiently supplements system monitoring capacity. Standard FIO form factor ensures seamless system docking, minimizing project transformation workload and production downtime.

8. Core Competitive Advantages of Yokogawa ADV159‑P00

Dual Contact/Voltage Input Maximizes Engineering Versatility

Unique dual-mode signal acquisition design covers both dry contact and DC voltage discrete signals, solving the problem of single signal type limitation of ordinary input modules. It adapts to diversified field loop configurations, simplifies I/O type selection and reduces engineering design complexity for mixed signal projects.

ST3 Exclusive Compatibility Ensures System Matching Accuracy

Purpose-built for CENTUM ST3 architecture with full VP backward compatibility, the module achieves zero protocol mismatch and stable system docking. It is the most standardized and reliable discrete input solution for ST3 system construction and upgrade projects, avoiding compatibility risks of general FIO modules.

8ms Standard Sampling Balances Stability & Cost-Performance

Optimized 8ms standard response speed fully meets conventional industrial discrete monitoring demands, avoiding redundant performance waste of ultra-high-speed modules. Stable anti-jitter sampling and mature circuit design deliver ultra-high operational stability and cost-effectiveness, making it the preferred choice for large-scale standard discrete signal deployment.

32-Channel Isolated Design Reduces Long-Term Operational Costs

High-density single-slot integration saves cabinet resources and hardware investment, while per-channel isolation structure lowers field fault spread risks and system failure rates. Low-power stable operation reduces heat accumulation and equipment aging, effectively cutting long-term maintenance and spare part replacement costs.
